Carton Inventory

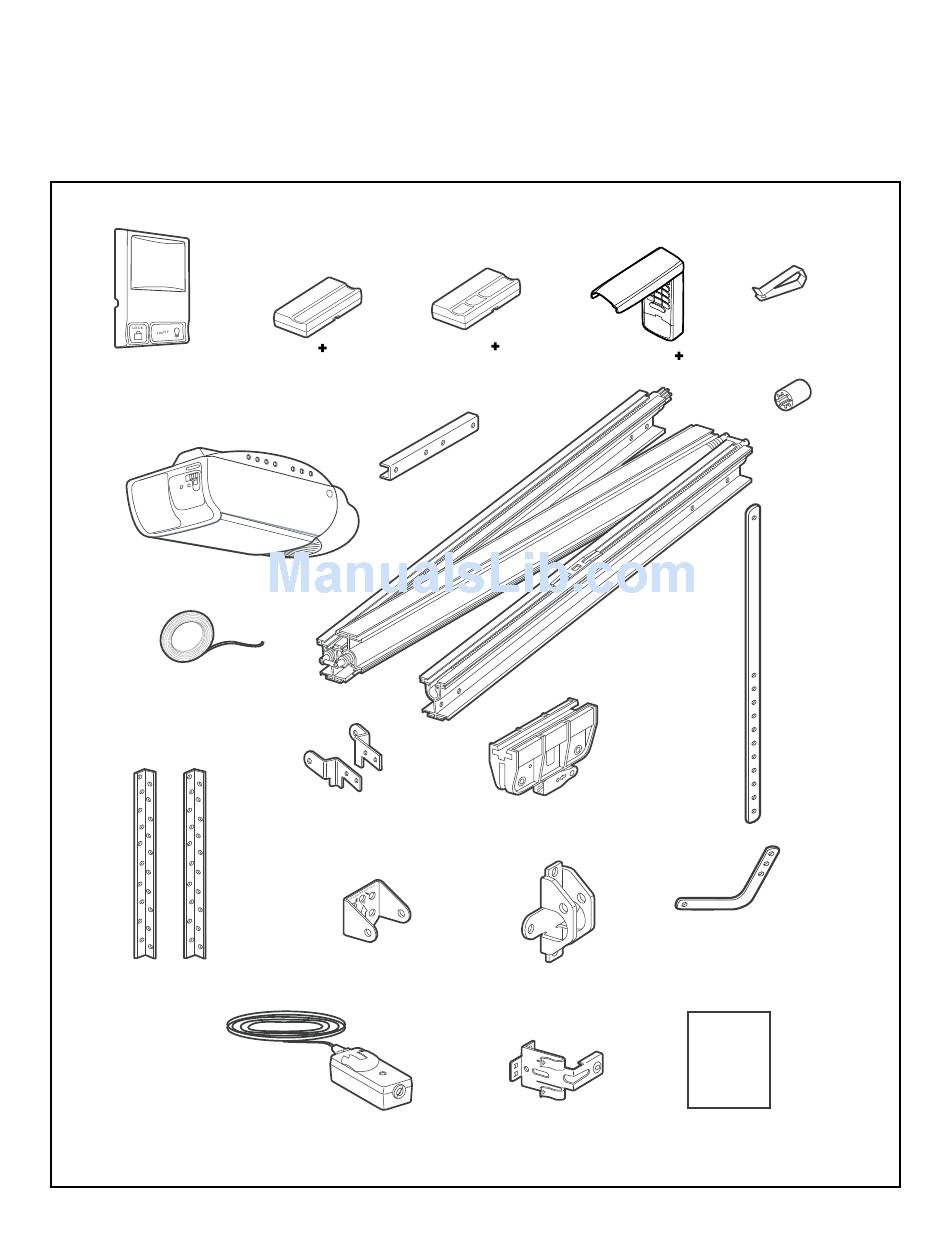

Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below. Accessories will depend on the model
purchased. If anything is missing, carefully check the
Multi-Function
Door Control Panel
Motor Unit with a Light Lens
2-Conductor Bell Wire
White & White/Red
Hanging Brackets
The Protector System
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with attached 2-Conductor
White & White/Black Bell Wire
Model PD420D (1),
Model PD422D (2)
Model PD462D (2)
SECURITY
SECURITY ®
3-Button
Single Button
Remote Control
Remote Control
Rail Support
Braces (4)
Header/Rail
Brackets
Header Bracket
®
packing material. PARTS MAY BE STUCK IN THE
FOAM. Hardware for assembly and installation is
shown on the next page. Save the carton and packing
material until installation and adjustment is complete.
Model PD462D
®
SECURITY
Keyless Entry
Trolley
Door Bracket
Safety Reversing Sensor
Mounting Bracket (2)
6
Remote Control
Transmitter Visor Clip
®
Sprocket
Coupling
Rail
Assembly
Straight Door
Arm Section
Curved Door
Arm Section
Safety Labels
and
Literature
