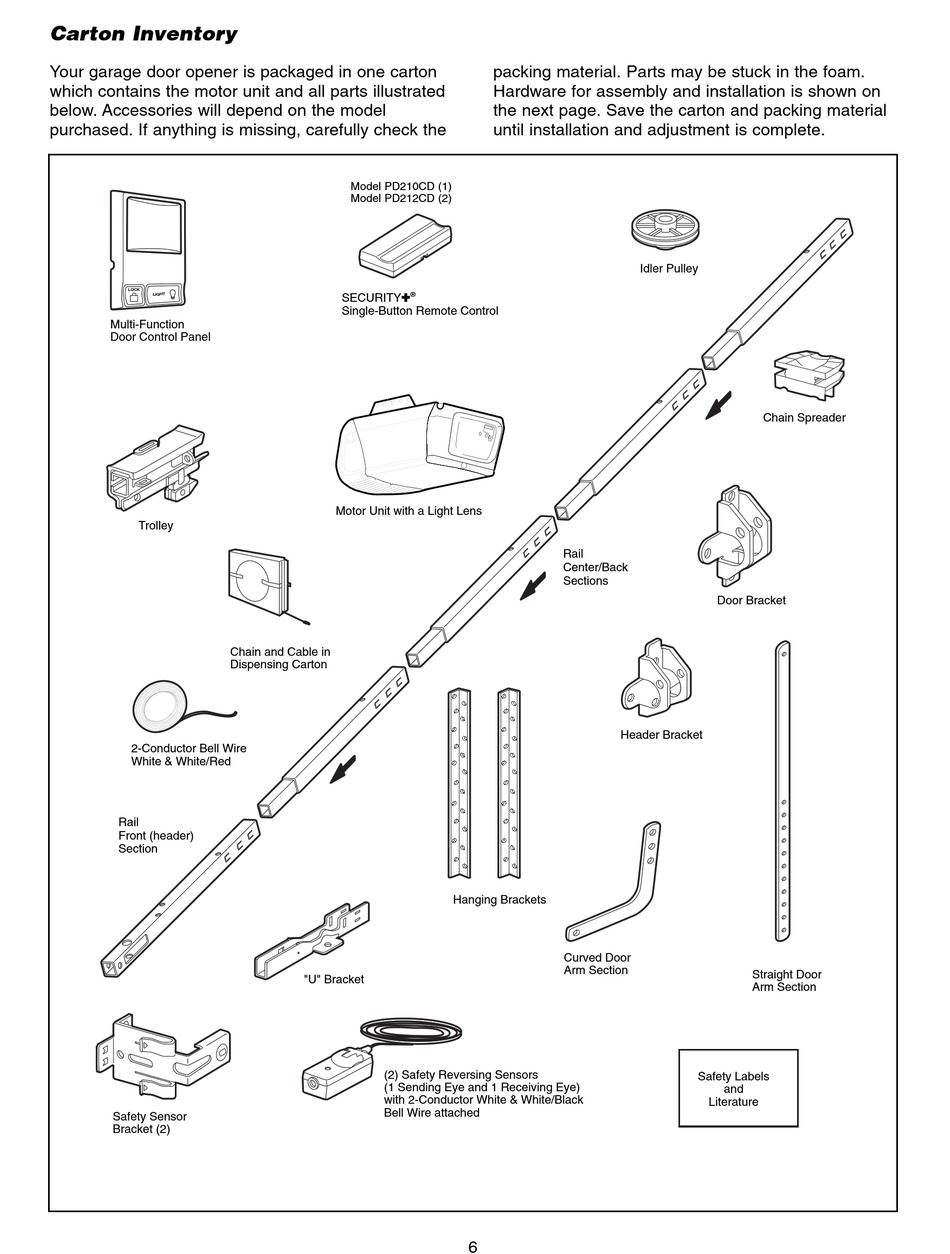

Carton Inventory

Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below. Accessories will depend on the model
purchased. If anything is missing, carefully check the
Multi-Function
Door Control Panel
Trolley
2-Conductor Bell Wire
White & White/Red
Rail
Front (header)
Section
Safety Sensor
Bracket (2)
Model PD210CD (1)
PD210D (1), PD212D (2)
Model PD212CD (2)
SECURITY✚
Single-Button Remote Control
Motor Unit with a Light Lens
Chain and Cable in
Dispensing Carton
"U" Bracket
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
packing material. Parts may be stuck in the foam.
Hardware for assembly and installation is shown on
the next page. Save the carton and packing material
until installation and adjustment is complete.
®
Rail
Center/Back
Sections
Hanging Brackets
Curved Door
Arm Section
6
Idler Pulley
Chain Spreader
Door Bracket
Header Bracket
Straight Door
Arm Section
Safety Labels
and
Literature
