Concrete Umbrella Base
Product No. 088-1770-2
Model No. A702000600
Assembly Instructions
Toll-free:
1-877-483-6759
IMPORTANT: Please read this manual carefully before beginning assembly of this product.
Keep this manual for future reference.
Production Number: xxxxxxxx
Advertisement
Related Manuals for for Living 088-1770-2
Summary of Contents for for Living 088-1770-2

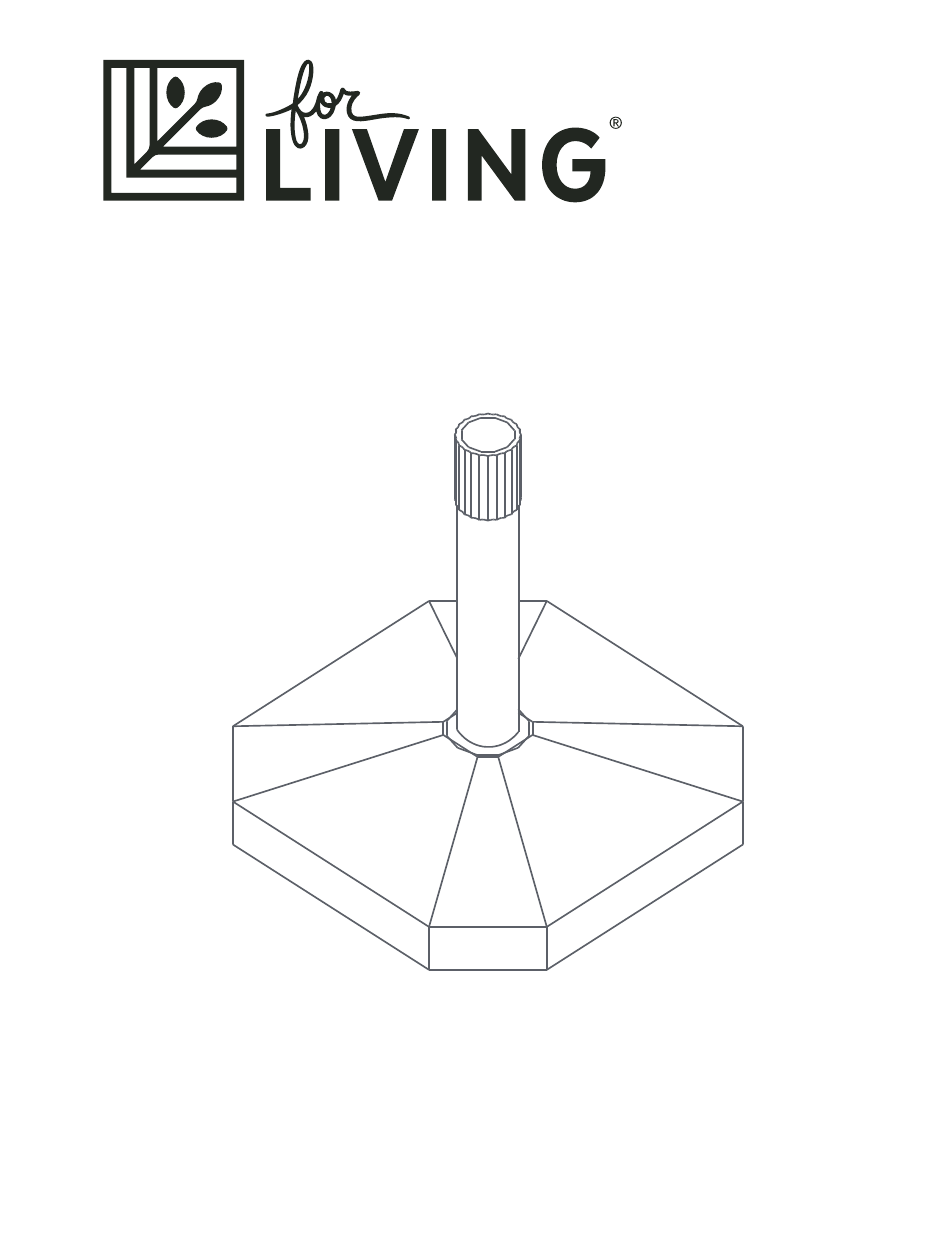

- Page 1 Concrete Umbrella Base Product No. 088-1770-2 Model No. A702000600 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Production Number: xxxxxxxx...
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
- Page 3 Table of Contents Important Safety Instructions Part List Assembly Technical Data Warranty DO NOT over-tighten any of the bolts or nuts. Tighten each bolt and nut until secure. DO NOT attempt to over-tighten as this may cause DAMAGE to the threads and umbrella pole. ENSURE that all nuts are not cross threaded before tightening commences.
- Page 4 Product No. 088-1770-2 Model No. A702000600 • P002200147 P007300008 Ring 2 Dia.34 Umbrella base mm - H010010031 P002200148 Bolt M12*55 Ring 3 Dia.38mm （Pre-assembled on B） P008100005 P005700214 Cover （Pre-assembled on B） Pole ￠48 - P002200146 Ring 1 Dia.32mm D1\D2\D3...
- Page 5 Step 1: Use bolt (B) to connect pole (C) and base (A) together, as Fig.1 illustrated. Tips: You could cross a screwdriver (not included in the package) through the holes on the pole (C) and turn around in clockwise direction to fasten the connection if needed as Fig. 2 illustrated. Fig.1 Fig.
- Page 6 Product No. 088-1770-2 Model No. A702000600 • Dimensions 14 9/16 x 14 9/16 x 13 7/10" (37 x 37 x 35 cm) Product weight 29 lb 11 oz (13.5 kg) This For Living product carries a one (1) year warranty against defects in workmanship and materials.
