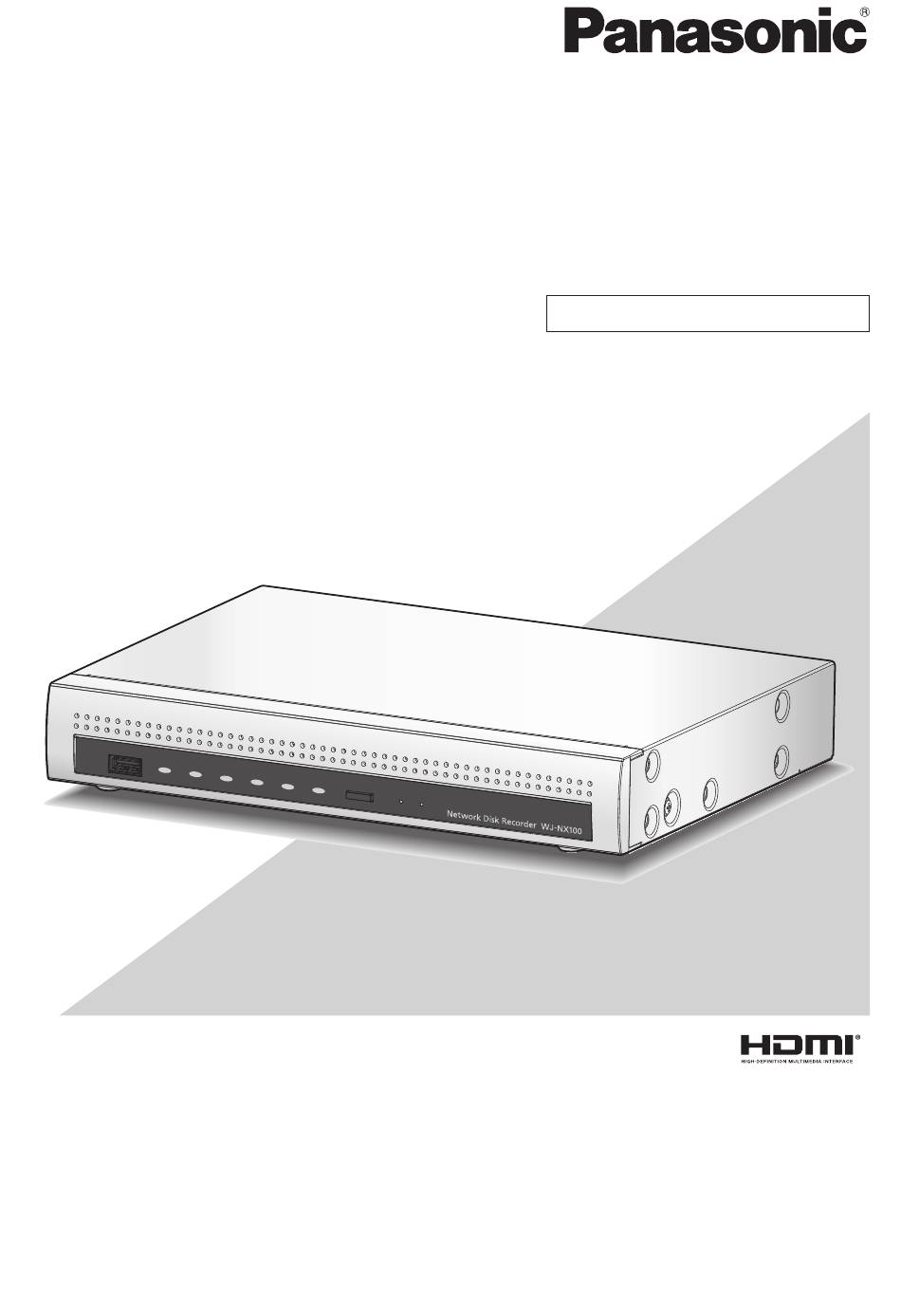

- Page 1 Important Information Network Disk Recorder WJ-NX100/2E Model No. For professional use only Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
-
Page 2: Safety Information
If you lose the fuse cover the plug must not be used until a replacement cover is obtained. Model No. : WJ-NX100/2E A replacement fuse cover can be purchased from your local Panasonic Responsible Party: Panasonic Corporation of North Dealer. -
Page 3: Table Of Contents
Contents Safety Information ........................2 Introduction ..........................4 Preface ...................................... 4 Features ....................................4 Standard accessories ................................6 About the user manuals ................................6 System requirements for a PC ..............................7 Trademarks and registered trademarks ............................ 7 GPL/LGPL ....................................8 Copyright .................................... -
Page 4: Introduction
Introduction Preface The network disk recorders WJ-NX100/2E (hereinafter, recorder) equipped H.265 CODEC and are designed for use within a H.265 surveillance system, and record images/audio from up to 4 network cameras (hereinafter, cameras) on the hard disk drives (HDDs). This product has a built-in 2 TB HDD. In addition, one more HDD is expandable. With one more HDD added, two HDDs can be used in RAID1 mode. - Page 5 Introduction (continued) System Configuration Main monitor (HDMI) Sub monitor (BNC) The sub monitor only displays live images Network Network camera (× 4 max.) AC power adapter (included) Mouse (included)
-
Page 6: Standard Accessories
Contains descriptions of how to operate functions frequently used. "NX100" shown in this manual or setup menu on this recorder indicates the WJ-NX100/2E. Refer to "readme.txt" on the included CD-ROM for further information about the dedicated software (option) that receives and displays the event and error information, compatible cameras and their versions. -
Page 7: System Requirements For A Pc
CD-ROM. Important: • Refer to the Panasonic support website (https://security.panasonic.com/support) for information about the latest operation verification of the supported operating systems and web browsers. • If using a PC that does not meet the above system requirements, it may cause problems such as slow imaging or the browser becomes inoperable. -
Page 8: Gpl/Lgpl
Disclaimer of warranty IN NO EVENT SHALL Panasonic i-PRO Sensing Solutions Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT... -
Page 9: Network Security
Use several licenses as necessary. For further information, refer to the operating instruction on the following web site. https://security.panasonic.com/training_support/documentation_database/ * Encrypted communication using an electronic certificate. -
Page 10: Precautions
Precautions Refer installation work to the dealer. Grounding Installation work requires technique and experiences. Failure The power plug of this product is 2-prong plug equipped to observe this may cause fire, electric shock, injury, or with a grounding terminal. Use this product after confirming damage to the product. - Page 11 Precautions (continued) Precautions for use When the product is accessible from the Internet • To prevent data loss from disk crashes, it is To prevent unauthorized access, note the following. recommended to keep the ambient operating • Leave user authentication turned on. temperature at approx.
- Page 12 Disclaimer of warranty on recoded data Panasonic assumes no responsibility or liability, directly or indirectly, for failure of recording or editing including loss of data due to any reason or cause which does not exclude repair or maintenance of this product regardless whether the subject is hard disk or other parts.
-
Page 13: Major Operating Controls And Their Functions
Major operating controls and their functions Front view ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Copy port (USB3.0) [COPY] ⑦ Buzzer stop button [BUZZER STOP] Press this button to stop the buzzer that started Connect an external storage device (external Hard disk drive, USB memory) to this port and copy images and sounding at an alarm/error occurrence. -
Page 14: Rear View
Major operating controls and their functions (continued) Rear view ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① Clamp mount (To prevent power cord disconnection) ④ Network port (Camera port) [CAMERA] Connect the recorder with a PC and cameras via a ②... - Page 15 Major operating controls and their functions (continued) ➂Tighten the DC cable at 15 cm to 20 cm ⑦ Mouse connection port (USB2.0) [ {5-7/8 inches ~ 7-7/8 inches} from the DC plug The included mouse is connected to this port. and fix it to the clamp mount.
-
Page 16: User/Host Management
User/Host management It is necessary to register users who operate the recorder and hosts (PC) that accesses the recorder via a network such as a LAN. Up to 32 users can be registered. It is possible to register the following for the user information. Item Description User name... -
Page 17: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Cause/solution Ref. - Page 18 Troubleshooting (continued) Symptom Cause/solution Ref. pages The "Communication error: • Confirm that the camera is connected correctly and firmly. Installation Cam.cc" indication is Check the camera connection. Guide displayed on the main monitor. • If the connection is appropriate, the cable may be broken or the ("cc"...
-
Page 19: Specifications
Specifications • General Power source: DC48 V 1.7 A Power consumption: With included AC power adapter 81.6 W (DC48 V 1.7 A) Ambient operating temperature: Main body: +5 °C - +45 °C {41 °F - 113 °F} Mouse (included): +5 °C - +40 °C {41 °F - 104 °F} Ambient operating humidity: 5 % to 90 % (non condensing) Maximum operating altitude:... - Page 20 Panasonic i-PRO Sensing Solutions Co., Ltd. Fukuoka, Japan 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada 1-877-495-0580 Authorised Representative in EU: https://www.panasonic.com/ca/ Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany © Panasonic i-PRO Sensing Solutions Co., Ltd. 2021 L0721-0 PGQP3229ZA...
