Summary of Contents for Multiaqua CWA2

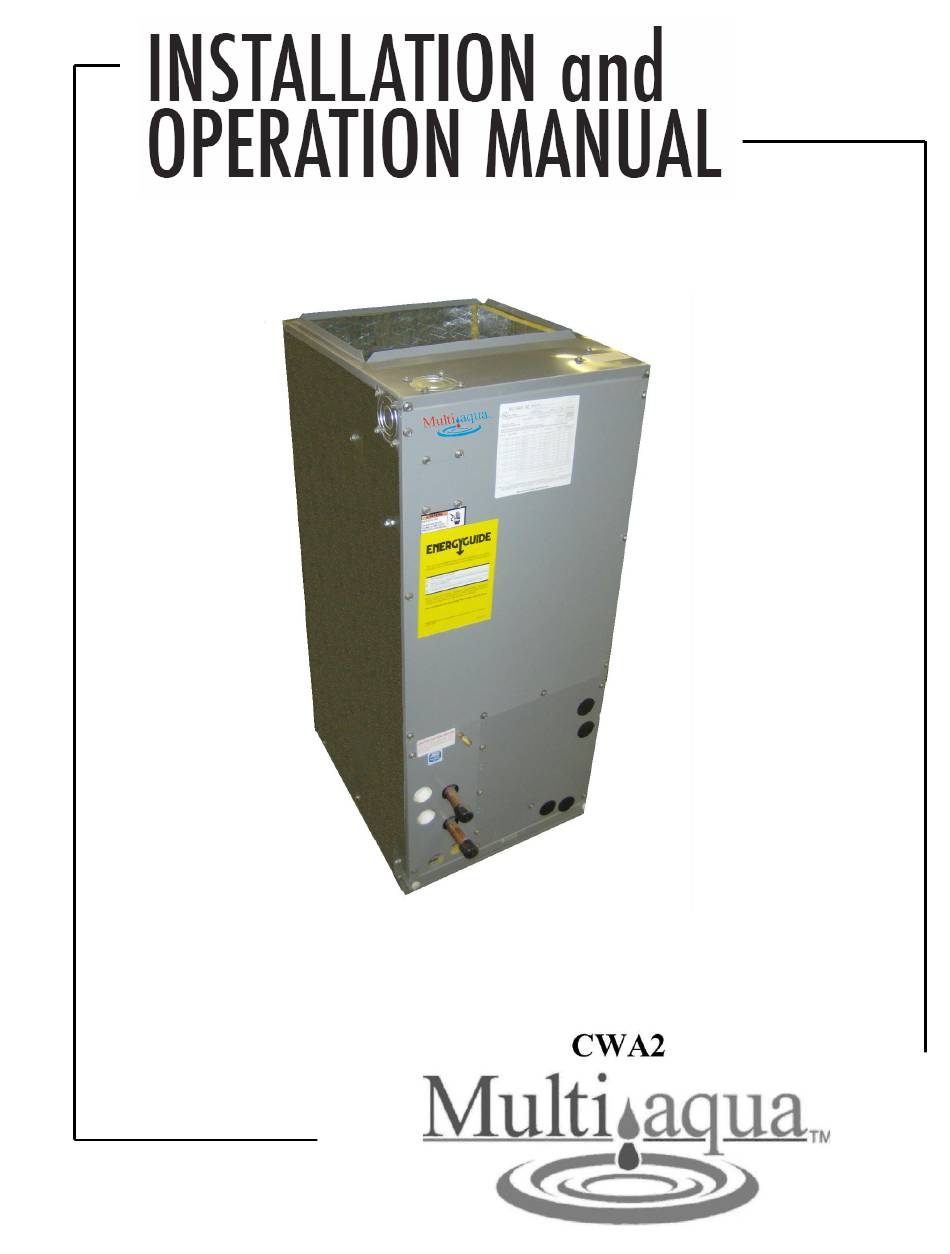

- Page 1 Rev. 1.2...
- Page 2 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH -------------------------------------- CAUTION -------------------------------------- Care must be taken when handling sheet metal. Sheet metal parts have sharp edges and could cause injury. GENERAL vertical or horizontal configuration. See Figure 2 for fan coil only dimensions.
- Page 3 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH Physical Dimensions (inches) Model Number 18CWA2-00 17.50 21.00 39.75 12.50 16.00 24CWA2-00 17.50 21.00 39.75 12.50 16.00 36CWA2-00 17.50 21.00 39.75 12.50 16.00 48CWA2-00 21.50 25.00...
- Page 4 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH -------- CAUTION ------- Care must be taken when handling sheet metal. Sheet metal parts have sharp edges and could cause injury. INSTRUCTIONS FOR INSTALLING FAN COIL...
- Page 5 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH 3. Remove the horizontal drain pan from the coil and re-install it on the other side. Figure 6 & 7 4. Ensure the coil mounting brackets are secure in order to avoid coil misplacement inside the cabinet.
- Page 6 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH HORIZONTAL DISCHARGE 8. The “A” coil includes an L-shaped SECONDARY piece of sheet metal with one leg of DRAIN the L covering the top length of one coil slab;...
- Page 7 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH ELECTRICAL 9. All duct work must be installed per local and national codes. The return air duct and the return air opening provided in the fan coil must have the same area.
- Page 8 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH...
- Page 9 INSTALLATION & OPERATING MANUAL CWA2 Chilled Water Air Handler with Electric Heat 18,000 – 60,000 BTUH PIPING 10. This fan coil is supplied with one water coil that can be used for chilled and/or hot water. The coil has one dedicated water inlet and outlet.
