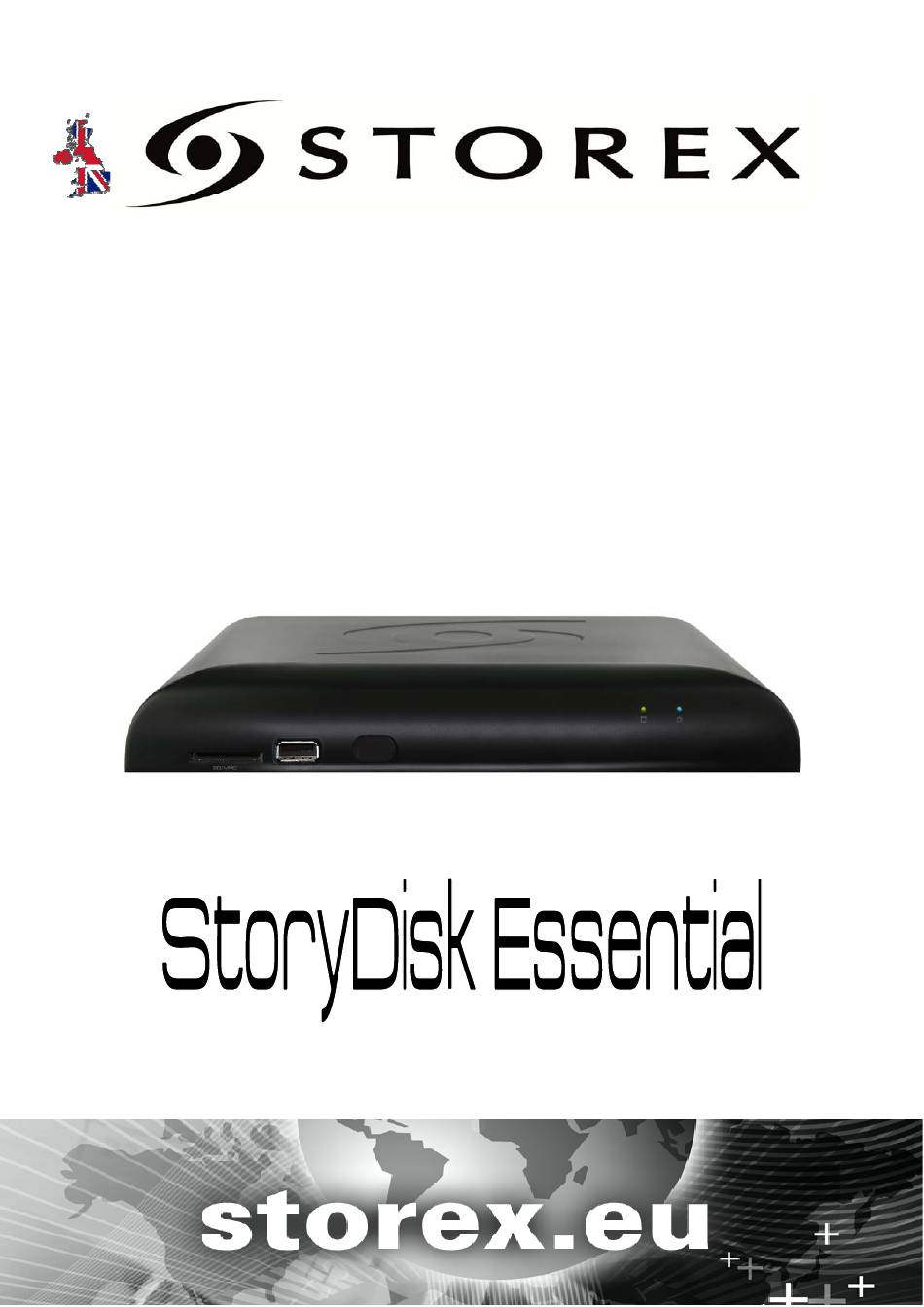

- Page 1 QUICK INSTALLATION GUIDE StoryDisk Essential Page 1/20...
- Page 2 StoryDisk Essential Page 2/20...
-
Page 3: Table Of Contents
PRINCIPAL SPECIFICATIONS .................. 6 UNIT INTRODUCTION ................... 7 REMOTE CONTROL DETAILS ................... 8 CONNECT THE STORYDISK ESSENTIAL TO THE COMPUTER ..........10 CONNECT THE STORYDISK ESSENTIAL TO THE TV ..........11 PLAYING FILES ....................12 HOW TO READ ON THE MEMORY CARD ..............13 SETTINGS ...................... - Page 4 StoryDisk Essential Page 4/20...
- Page 5 Your StoryDisk Essential is an external hard drive with a multimedia function making possible to provide you the best image quality to look at your pictures and videos on your TV in high definition (1080p), or to listen your music.
-
Page 6: Introduction
- Connected in USB to the computer, you can copy the files on your hard disk to the hard disk of StoryDisk Essential. - When disconnected from the computer, connect the StoryDisk Essential to your TV to visualize your multimedia files in high definition. -
Page 7: Unit Introduction
3. HDMI : Video output (HDMI) 4. COAXIAL : Sound output (Coaxial) 5. AV OUT : Video output (YUV) 6. AV OUT : Video output (Component) 7. USB 2.0 : To connect the StoryDisk Essential to the PC StoryDisk Essential Page 7/20... -
Page 8: Remote Control Details
REMOTE CONTROL DETAILS Remote control 1 : Same as real remote control. Remote control 2 : Numeration of remote control keys. StoryDisk Essential Page 8/20... - Page 9 TOUCHE FONCTION STANDBY Power on/Power off (Standby) StoryDisk Essential. MUTE Activate /Deactivate the sound. 0-9. NUMERICAL KEYS The (0) key allows you to add the selected audio files to the BGM list. GOTO Allows to choose a specific point (Time).
-
Page 10: Connect The Storydisk Essential To The Computer
3. Connect the USB cable with the PC or MAC 4. The “Standby” LED lights on BLUE color 5. Take a look on “My computer”, the STOREX device will appears with an additional letter or for MAC users it will automatically mount on the desktop 6. -
Page 11: Connect The Storydisk Essential To The Tv
CONNECT THE STORYDISK ESSENTIAL TO THE TV Rear TV HDMI Cable AV Cable YUV Cable 1. Connect the power supply cord to the AC IN socket 2. Put the switch behind the product to “ON” 3/4/5. Connect your AV cable (HDMI, YUV or component) behind the product in one side and to the TV for the other side (as the description see before) 3. -
Page 12: Playing Files
Press the directional keys to move highlights to select the desired modes or files then press "ENTER" to confirm your Selection. 3. Change the device. Press "DEVICE" key on remote control to switch between the devices or the disk partition. StoryDisk Essential Page 12/20... -
Page 13: How To Read On The Memory Card
Press "DEVICE" key on remote control, the memory card inserted will appear automatically like shown above. Select the partition and press "ENTER" Select the folder or files then press "ENTER" key to confirm your selection. StoryDisk Essential Page 13/20... - Page 14 Music: Listen all your favorite music’s in this mode. Photo: Slide all your favorite pictures in this mode. File: Browse all your files stored in the hard disk drive. You can use the shortcut keys to access the desired function. StoryDisk Essential Page 14/20...
-
Page 15: Settings
"ENTER". In this page you can set the language In this page you can set the resolution HINT: The 576i/576p resolution may be not appear on the setup screen. Depending on your configuration. StoryDisk Essential Page 15/20... -
Page 16: Terms Of Warranty
TERMS OF WARRANTY The WARRANTY proposed by STOREX is 1 year for the StoryDisk Essential and 3 months for its accessories (remote control, AV cables, power supply…). STOREX guarantees your product against any manufacturing and assembly faults. This warranty only applies to the first purchase of an StoryDisk Essential by the end-user, and is not transferable if the unit is subsequently sold. -
Page 17: Registering The Warranty
Web site: www.storex.eu SAFETY AND ENVIRONMENT Your STOREX unit was tested and is in conformity with the CE standards at the time of its marketing. Your STOREX unit was tested and is in conformity with the environmental standards (RoHS) at the time of its marketing. -
Page 18: Security Information
- Install the unit far from any equipment to strong attraction such as micro-waves, large loudspeakers… - Place your unit in an adequate ventilated place and on a flat surface and rigid to disperse the heat emitted by the unit. StoryDisk Essential Page 18/20... -
Page 19: Cleaning
If you leave a video image fixed or an image-screen on your television screen during a prolonged period, you may damage the screen of your television. The television plasma screen and the television projection are susceptible. StoryDisk Essential Page 19/20... - Page 20 StoryDisk Essential is a product from the range www.storex.eu © STOREX –2010 All the specified trademarks are registered trademarks from their respective owners. StoryDisk Essential Page 20/20...
