Summary of Contents for Storex D-522
-
Page 1: Quick Installation

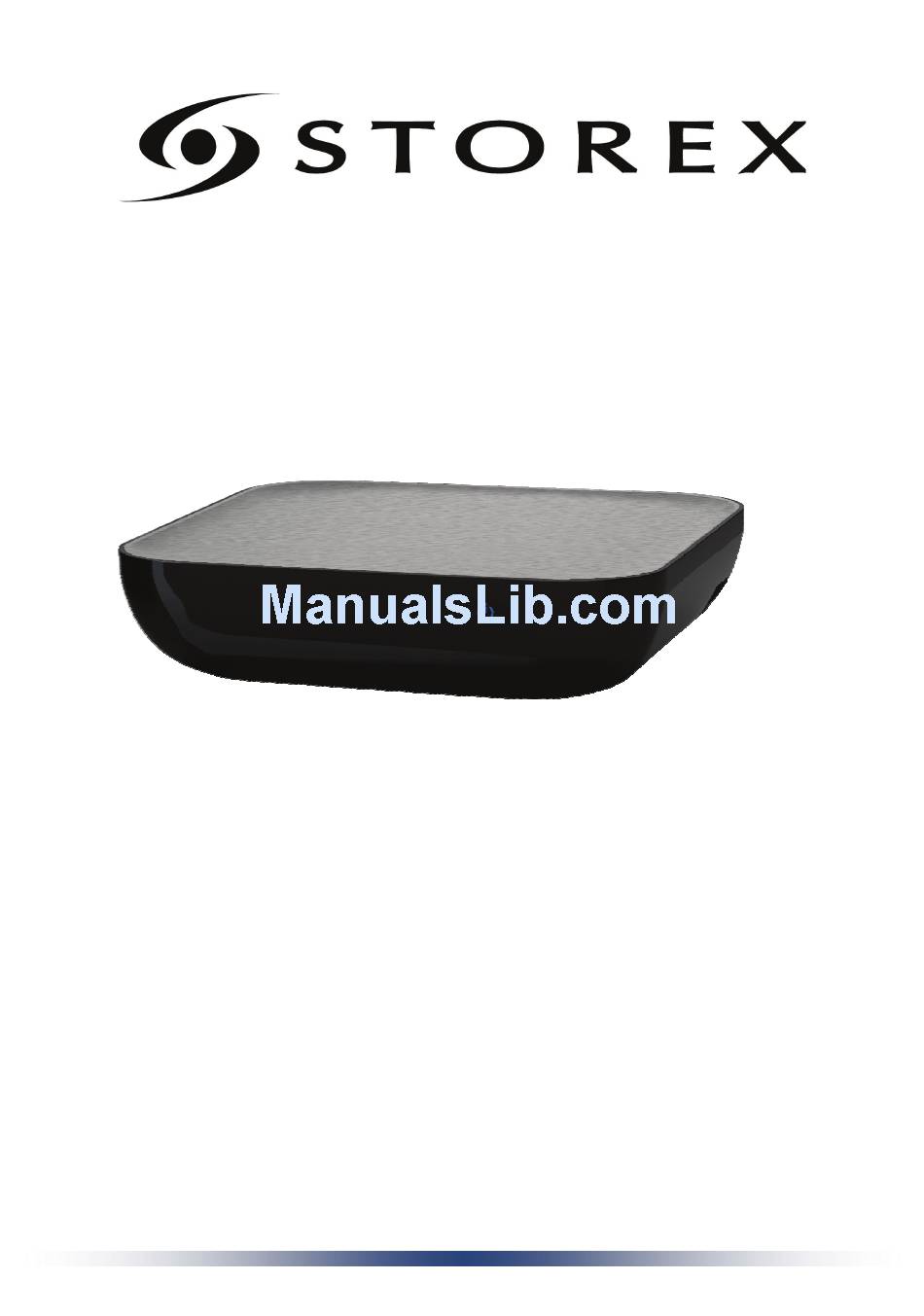

QUICK INSTALLATION GUIDE D-522 D-522 Page 1/24... - Page 2 D-522 Page 2/24...
- Page 3 D-522 is a multimedia hard drive that allows you to enjoy the best of your videos, photos and favorite music on your TV in 1080p resolution. Thanks to its function USB 2.0 HOST, you can read easily files from your USB key, external hard drive, SD or MMC.
-
Page 4: Principal Specifications
INTRODUCTION Your D-522 is an external hard drive with a multimedia function making possible to look at your pictures and videos on your TV in high definition, or to listen your music. OPERATING - Connected in USB to the computer, you can copy the files on your hard disk to the hard disk of D-522. - Page 5 REAR PANEL 1. POWER : Switch ON/OFF. 2. DC IN : To connect the power supply adapter. 3. USB 2.0 : To connect the D-522 to the PC. 4. VIDEO OUT : AV output. 5. COAXIAL : Sound output coaxial.
-
Page 6: Remote Control Details
REMOTE CONTROL DETAILS D-522 Page 6/24... - Page 7 TOUCHE FONCTION STANDBY Power on/Power off (Standby) D-522. MUTE Activate /Deactivate the sound. TASKBAR Allows the user to call the shortcut bar while viewing a file. MOVIE Allow to access directly to the "VIDEO" page. PHOTO Allow to access directly to the "PHOTO" page.
- Page 8 3. Connect the USB cable with the PC or MAC. 4. The “Standby” LED lights on BLUE color. 5. Take a look on “My computer”, the STOREX device will appears with an additional letter or for MAC users it will automatically mount on the desktop.
- Page 9 Rear TV AV Cable HDMI Cable 1. Connect the D-522 to the television with the AV cable (depending on your configuration). 2. Connect the D-522 to the television with the provided HDMI cable (depending on your configuration). 3. Connect the power supply adapter behind the D-522.
-
Page 10: Playing Files
Main Page 2. Select the device. Use directional keys on remote control then press "ENTER". Press the directional keys to move highlights to select the desired files then press "ENTER" to confirm your Selection. D-522 Page 10/24... - Page 11 3. Select the device (External hard disk, USB key or memory card). Use directional keys to select the device then press "ENTER" to confirm your selection. Use directional keys to select the file then press "ENTER" to confirm your selection. D-522 Page 11/24...
- Page 12 Video: Watch all your favorite movies in this mode. Music: Listen all your favorite music’s in this mode. Photo: Slide all your favorite pictures in this mode. File: Browse all your files stored in the hard disk drive. D-522 Page 12/24...
-
Page 13: Shortcut Bar
SHORTCUT BAR FOR MUSIC MODE : 1 : Get back to previous page. 2 : Select repetition mode (Repeat one, Repeat all, Random…). 3 : Select the equalizer type. 4 : Activate/Deactivate lyrics. 5 : Select lyrics color. D-522 Page 13/24... - Page 14 5 : Select the transition effect between pictures. 6 : Modify the display time picture. 7 : Select repetition mode (Repeat one, Repeat all, Random…). IMAGE 1 ZOOM IN ZOOM OUT LEFT ROTATION RIGHT ROTATION MOVE UP MOVE DOWN MOVE LEFT MOVE RIGHT IMAGE 2 D-522 Page 14/24...
- Page 15 "ENTER". In this page you can set the language. In this page you can set the resolution. HINT: The 576i/576p resolution may be not appear on the setup screen. Depending on your configuration. D-522 Page 15/24...
-
Page 16: Terms Of Warranty
TERMS OF WARRANTY The WARRANTY proposed by STOREX is 1 year for the D-522 and 3 months for its accessories (remote control, AV cables, power supply…). STOREX guarantees your product against any manufacturing and assembly faults. This warranty only applies to the first purchase of an D-522 by the end-user, and is not transferable if the unit is subsequently sold. - Page 17 REGISTERING THE WARRANTY Please take a moment to register the guarantee for your D-522 at our website: http://warranty.storex.eu All the requests must be formulated by e-mail with the following address: support@storex.eu...
-
Page 18: Safety And Environment
SAFETY AND ENVIRONMENT Your STOREX unit was tested and is in conformity with the CE standards at the time of its marketing. Your STOREX unit was tested and is in conformity with the environmental standards (RoHS) at the time of its marketing. - Page 19 - Disconnect the unit from the wall outlet before proceeding to cleaning of the unit. - Clean the outside of the unit as well as the remote control with a soft, dry cloth. Never use of buffer abrasive, scouring powder or solvents such as alcohol or petrol. D-522 Page 19/24...
-
Page 20: Troubleshooting
If you leave a video image fixed or an image-screen on your television screen during a prolonged period, you may damage the screen of your television. The television plasma screen and the television projection are susceptible. D-522 Page 20/24... - Page 21 Remote handling "Hello, I can't install Using the STORwebEX my external hard drive" platform allows the Hotline technicians to connect remotely to the customer's computer, in order to resolve installation issues pertaining to a STOREX product. D-522 Page 21/24...
- Page 22 D-522 Page 22/24...
- Page 23 D-522 Page 23/24...
- Page 24 D-522 is a product from the range www.storex.eu © STOREX –2011 All the specified trademarks are registered trademarks from their respective owners. D-522 Page 24/24...
