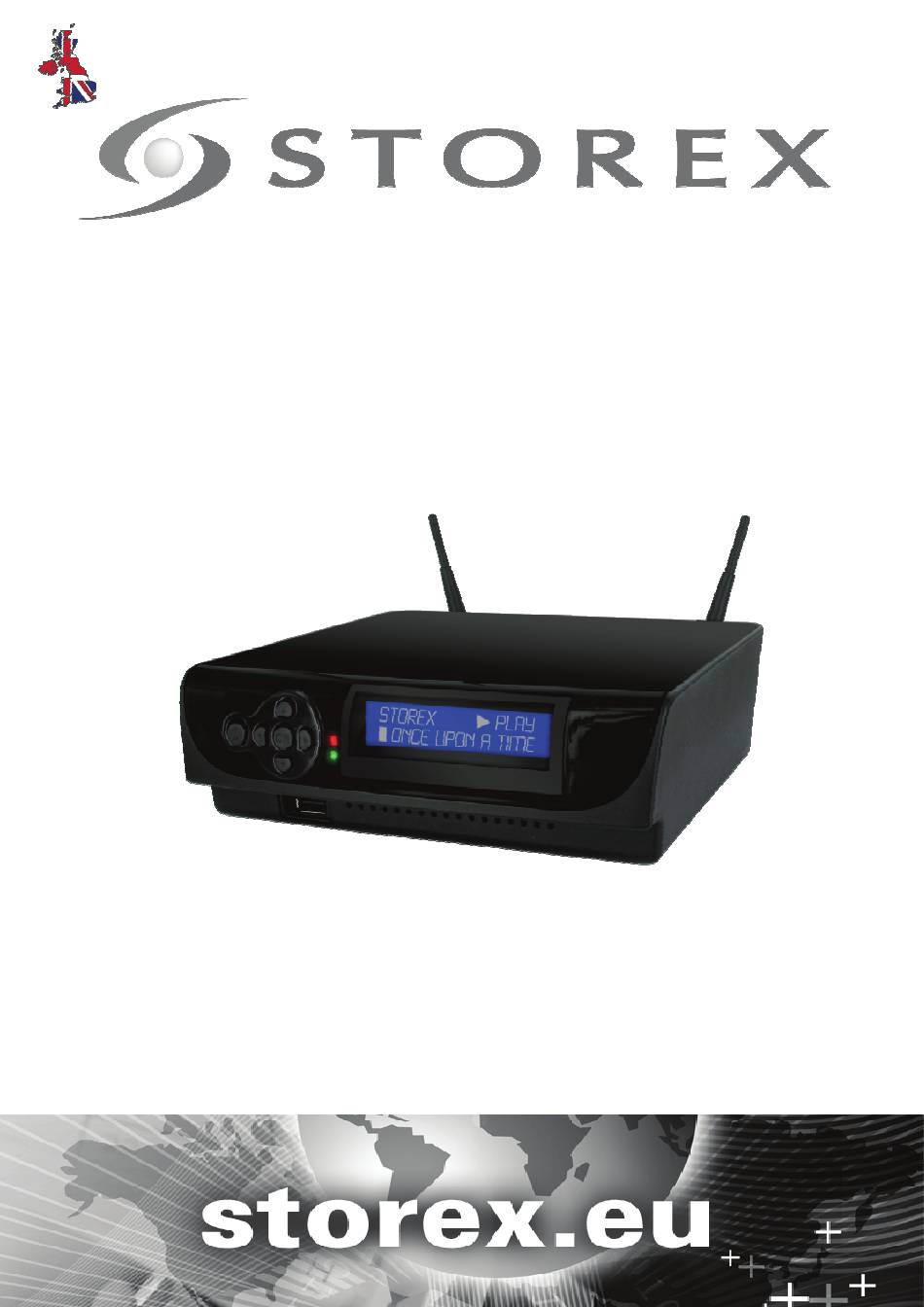

QUICK ST ART GUIDE
AivX - 372HD
STOREX AIVX-372HD
Quick Start Guide
Page 1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AivX-372HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Storex AivX-372HD

  • Page 1 QUICK ST ART GUIDE AivX - 372HD STOREX AIVX-372HD Quick Start Guide Page 1/28...
  • Page 2 STOREX AIVX-372HD Quick Start Guide Page 2/28...
  • Page 3: Main Features

    INTRODUCTION Your AivX-372HD is an external hard disk with a multimedia function permitting to look at the photos and your videos on your TV. OPERATING - Once connected in USB to the computer, you can copy to your AivX-372HD the multimedia files stocked in your PC.
  • Page 4 STOREX AIVX-372HD Quick Start Guide Page 4/28...
  • Page 5: First Time Installation

    If you have a 5.1 amplifier, you can use the (7) coaxial cable or (9) optical SPDIF  Connect AivX-372HD to the local area network using Ethernet cable (4), or if you prefer  WIFI, set up the wireless connection as described later Connect the Power Adapter to an electrical outlet ...
  • Page 6: Display Setup

    Press this key several times until you get a TV display similar to this one : Note: When you cycle through the “Output” Key, the AivX-372HD will tell you which mode you are at. Below is an example of cycling to “HDMI” mode. Please press “OK”...
  • Page 7: Network Setup

    NETWORK SETUP 1. Turn ON your AivX-372HD, after the system start-up, the Setup Menu will help you to connect on your network. Press “Setup” hotkey on the remote control or select “SETUP” mode from the Main Menu. 2. Select “Network Wizard” from the Setup Main Menu If you are using an Ethernet cable to connect the AivX-372HD to your network, please follow the instructions of section 3, and if you have a WIFI network, go to section 4.
  • Page 8 3. Wired Network Setup : Select “Wired” and follow the on screen instructions. Note: If you connect to a network using DHCP, AivX-372HD automatically detects your network. If you don’t connect using DHCP, go back to setup main menu and select Network Setup.
  • Page 9 “Network Wizard” will start to scan available Wireless devices : Please select your AP (Access Point) from the List AivX-372HD detects the network type automatically; click “Next” and then “Save” to apply settings. If the network you choose is encrypted, a “Lock” icon displays on the...
  • Page 10 SHARED KEY, same as your AP check your router settings Enter the key value, press ENTER key on There are 4 indexes for the key, use the the remote control same index 1 – 4 than your router STOREX AIVX-372HD Quick Start Guide Page 10/28...
  • Page 11 Press NEXT to validate the Control, input the key’s value. configuration. Your setup is complete, press “DONE” If the setup is successful, the display will Control, input the key’s value. show your network address and parameters. STOREX AIVX-372HD Quick Start Guide Page 11/28...
  • Page 12 Server at a time and scan all the files you want to share in the same local network. 1. Install STOREX Digital Media Server (DMS) to your PC with the CD (included). 2. Launch Digital Media Server when the installation is finished.
  • Page 13 1. After the configuration is finished, select “My Media” from Main Menu to enter server list 2. All available file sources will be listed on the server list, including files stored at Storex Media Server in your PC, at USB flash stick, at USB external Hard disk drive, local hard disk drive or at other UPnP servers.
  • Page 14 Select “PHOTO” mode and press “OK”, or press “PHOTO” hotkey to enter photo mode. If you select “Storex DMS”, you may select “My Folders” to view the image files that are organized in several subfolders as on your PC, or select “All Images”...
  • Page 15 USB HOST NETWORK On the local hard disk to the AIVX-372HD, you can play or copy Multimedia files from any USB storage device through USB2 host ports, or copy and delete files from PC through LAN. Follow below steps to copy files from USB storage device.
  • Page 16 4. The AivX-372HD will ask you whether you want to copy, select the destination and press “Ok” if you want to confirm. 5. You can monitor the copy progress on the TV screen. Note: The AivX-372 only support USB hosts copy to local HDD, you are not able to delete files copied to HDD by using this feature.
  • Page 17 NETWORK COPY & MANAGE DISK FILES FROM PC As your AivX-372HD is connected to the network, it is possible to access it from your PC, then copy, move, delete and arrange files and folders, like a local drive. 1. Setup the “network name” through the SETUP menu, Network submenu of AivX-372HD: SHARE Name is the network name that you will see in your PC’s browser in Network...
  • Page 18 VLC, then you can watch those channels on your TV without PC, but with AivX-372HD. In France, for example, FREE and NEUF PC channels are implemented to be used with AivX-372HD. Check our Web site, www.storex.eu , to know if your country and ADSL provider is implemented, and get the latest firmware to support it.
  • Page 19: Web Radio

    When adding a new Web radio station, do not use the standard radio frequencies (like 91.1 FM in France), please put the Internet address (http://web radio station address), you will find them on the respective internet radio station. STOREX AIVX-372HD Quick Start Guide Page 19/28...
  • Page 20 Use the remote control to navigate menus, to watch videos, listen to music or view photos on your TV. Remote Control 1 : Real remote control. Remote Control 2 : Numeration of remote control keys. STOREX AIVX-372HD Quick Start Guide Page 20/28...
  • Page 21 AivX-372HD Player Remote control: Keypad Function Description KEYPAD FUNCTION DESCRIPTION POWER Turn On/Off “AivX-372HD”. MUTE Mute audio output. NUMBERS Input number with the key value. SORT Sorting all the files in one folder and re-arrange in alphabetical order MENU Menu of file management VIDEO OUT Switch the video output type with S-VideoYPbPrHDMI sequence.
  • Page 22 Copy USB content into local HDD Hotkey for future implement For more details about the new functions (iTunes server, Bittorrent, IP TV recording, FTP and PC to TV) please read the user manual available on www.storex.eu STOREX AIVX-372HD Quick Start Guide Page 22/28...
  • Page 23: Terms Of Warranty

    STOREX guarantees your product against any manufacturing and assembly faults. This warranty only applies to the first purchase of an AivX-372HD by the end-user, and is not transferable if the unit is subsequently sold. The warranty does not cover incompatibilities detected by the end user outside the recommendations for use printed on the box, or incompatibilities arising with other hardware or software installed on the computer to which product is connected.
  • Page 24 WEB SITE STOREX You will find on the STOREX web site a heading SUPPORT associated with each STOREX product. Appointment with the http://www.storex.eu address, select “Multimedia Player” then AivX-372HD. You will be able to download the last complete version of the handbook, the software updates and to consult the frequently asked questions.
  • Page 25: Safety And Environment

    SAFETY AND ENVIRONMENT Your STOREX unit was tested and is in conformity with the CE standards at the time of its marketing. Your STOREX unit was tested and is in conformity with the environmental standards (RoHS) at the time of its marketing.
  • Page 26: Troubleshooting

    The television plasma screen and the television projection are susceptible. STOREX AIVX-372HD Quick Start Guide Page 26/28...
  • Page 27 STOREX AIVX-372HD Quick Start Guide Page 27/28...
  • Page 28 THE DIGITAL LIFE CREATOR http://www.storex.eu © STOREX –2010 All the specified trademarks are registered trademarks from their respective owners. STOREX AIVX-372HD Quick Start Guide Page 28/28...
