Operation & Service Manual

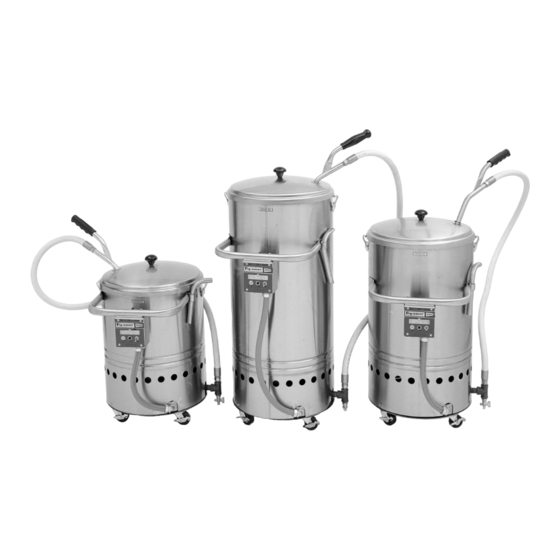

FRY-SAVER® Oil Filtration System
MODEL #
F-60
F-100
F-150
STANDARD FEATURES:
•
All stainless steel body and filter housing construction.
•
1/4 HP heavy-duty reversible pump & motor.
•
Built-in suction line heater with indicator light for solid shortening.
5-foot (1.5 meter) flexible, sanitary, high temperature hose and heat proof handle assembly.
•
Easy to remove pleated filter cartridge for super fine filtering.
•
Built-in thermal reset switch.
•
•
Four heavy-duty swivel casters allow easy movement.
•
Filters 50 lbs. of oil in 5 minutes.
®
Since 1911
OIL CAPACITY
60 lbs.
120 lbs.
150 lbs.
Cecilware Corporation
43-05 20th Avenue ~ Long Island City, NY 11105
Tel: 800.935.2211 718.932.1414 Fax: 718.932.7860
www.cecilware.com customer.service@cecilware.com
VOLTAGE
SHIP WT.
120v/60/1
85 lbs.
120v/60/1
95 lbs.
120v/60/1
105 lbs.
NM47A

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cecilware F-100

Summary of Contents for Cecilware F-100

  • Page 1 Operation & Service Manual FRY-SAVER® Oil Filtration System MODEL # F-60 F-100 F-150 STANDARD FEATURES: • All stainless steel body and filter housing construction. • 1/4 HP heavy-duty reversible pump & motor. • Built-in suction line heater with indicator light for solid shortening.
  • Page 2 FILTER CARTRIDGE DIRECTIONS: To insert or replace the filter cartridge in the unit, follow these simple steps: 1) Remove cartridge support assembly by lifting straight up, and applying a twisting motion. Discard the used cartridge. Wipe machine down with a clean cloth. DO NOT USE WATER OR OTHER CLEANING SOLUTIONS WHEN CLEANING THE FRY-SAVER®.
  • Page 3 3) Place the nozzle in the cooking oil approximately 2 inches. DO NOT REST THE NOZZLE ON THE BOTTOM OF THE FRYER. This will prevent the nozzle from becoming clogged with solid particles. 4) Turn the control switch to "FILL", keeping the nozzle tip submerged as oil is pumped into the filter. 5) When most of the oil is transferred from the fryer to the filter, turn the control switch to "OFF"...
  • Page 4 FRY-SAVER® Trouble Shooting Guide Trouble 1) FRY-SAVER® does not start 2) FRY-SAVER® will not fill 3) Gurgling Noise – oil is filling from under the cartridge instead of over the top 4) FRY-SAVER® is not filtering 5) FRY-SAVER® leaks at bottom The FRY-SAVER is equipped with an additional crank handle that can be used to free the pump should it become jammed with hardened oil.
  • Page 5 Page 5...
  • Page 6 FRY-SAVER® by Cecilware Spare Parts Price List Cecilware Blickman Part # Part # 20000 F-101 20003 20000/3 20005 F-121 20020 F-134-NB 20025 F-135 20026 F-135-NUL 20030 F-140 20035 F-141 20045 F-143 20050 F-144 20055 F-145 20065 F-146 20066 F-146 -NUL...
  • Page 7 Page 7...

  • Page 8: Quick Tips

    WHEN YOU ARE FINISHED, OPEN THE DRAIN VALVE AT THE END OF THE HOSE, TO REMOVE ANY OIL LEFT IN THE MACHINE. Since 1911 Page 8 QUICK TIPS Cecilware Corporation 43-05 20th Avenue ~ Long Island City, NY 11105 Tel: 800.935.2211 718.932.1414 Fax: 718.932.7860 ® www.cecilware.com customer.service@cecilware.com...
