AURO CRESNET ®
Installation Manual

Safety instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference. Failure to observe
these instructions might damage the device. The device may only be installed and connected by professional
electricians. All relevant rules and regulations valid in the country of use, as well as Crestron® guidelines, apply.

Description

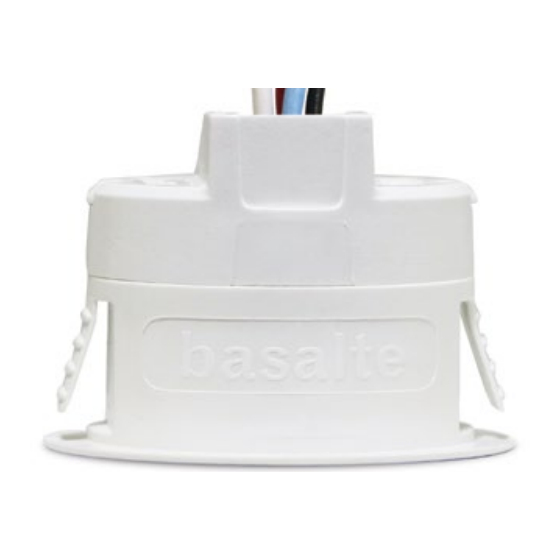

The Auro is a miniature motion detector, which connects directly to the Cresnet® bus without external interface.
Auro has an external diameter of 52 mm (2 in), the inside fitting diameter is 43 mm (1.7 in) with an installation depth
of only 39 mm (1.5 in).
The detection range of Auro is set for residential applications. Horizontal reach is 360°, while the vertical reach
attains circa 90°. If installed at height of 2.5 m (8.2 ft), Auro has a detection range with a diameter of approximately
5 m (16.4 ft). Maximum detection height is 5m (16.4 ft).
Auro contains a built-in light sensor that can be used as an individual lux meter, the temperature sensor can be
used for home automation.
An incorporated led allows the Auro to light up with every movement but can also be used as a nightlight.

Components

Model No. 0180-22 (White)
Model No. 0180-23 (Black)
A Recessed button
B Mounting clip
C Central IR window
A
B
C
43mm / 1.70"
52 mm / 2.00"
360°
90°
