AURO KNX
Installation Manual

Safety instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.
Failure to observe these instructions might damage the device.
The device may only be installed and connected by professional electricians.
All relevant rules and regulations valid in the country of use, as well as KNX guidelines, apply.

Description

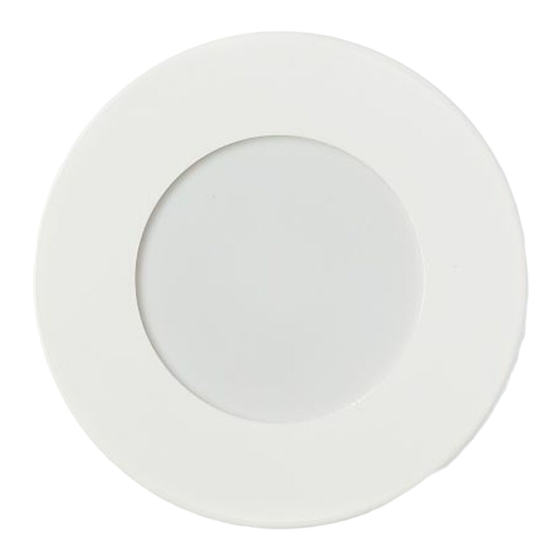

Auro is a miniature KNX motion detector, which connects directly to the KNX bus without external interface.
Auro has an external diameter of 52mm, the inside fitting diameter is 43mm with an installation depth of only
39mm.
The detection range of Auro is set for residential applications. Horizontal reach is 360°, while the vertical
reach attains circa 90°.
If installed at height of 2.5m, Auro has a detection range with a diameter of approximately 5m. Maximum
detection height is 5m.
The motion sensor can be used to switch or dim the lights and at the same time control the ventilation.
Auro contains a built-in light sensor that can be used as an individual lux meter (180-02 only), the
temperature sensor can be used for home automation.
An incorporated led allows Auro to light up with every movement but can also be used as a nightlight.

Components

Model No. 180-02 (White)
Model No. 180-03 (Black)
A
B
C
D
E
A Programming button
B Programming LED
C KNX connector
D Mounting clip
E Central IR window
43mm
52mm
360°
90°
actual size

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AURO KNX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basalte AURO KNX Series

  • Page 1 AURO KNX Installation Manual Safety instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. Failure to observe these instructions might damage the device. The device may only be installed and connected by professional electricians. All relevant rules and regulations valid in the country of use, as well as KNX guidelines, apply.
  • Page 2 Protection class: II Type of protection: IP 20 Transport: -15°C to 55°C Certification: CE basalte bv | hundelgemsesteenweg 1A | 9820 merelbeke | belgium t +32 (0)9 385 78 38 | f +32 (0)9 329 66 95 | www.basalte.be | info@basalte.be...

This manual is also suitable for:

180-02180-03
