Basalte AURO RS485 Installation Manual

AURO RS485

Installation Manual

Safety instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Failure to observe these instructions might damage the device.

The device may only be installed and connected by professional electricians.

All relevant rules and regulations valid in the country of use, as well as RS485 guidelines, apply.

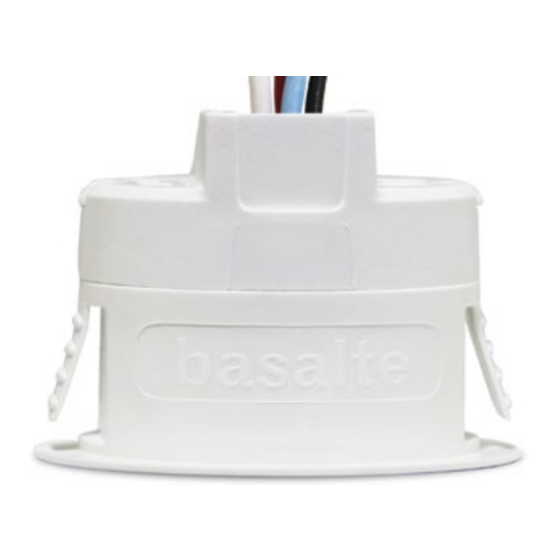

Auro RS485 is a miniature motion sensor compatible with the Basalte Serial.link.

Auro has an external diameter of 52 mm (2 in), the inside fitting diameter is 43 mm (1.7 in) with an installation depth

of only 39 mm (1.5 in). The detection range of Auro is set for residential applications. Horizontal reach is 360°, while

the vertical reach attains circa 90°. If installed at a height of 2.5 m (8.2 ft), Auro has a detection range with a

diameter of approximately 5 m (16.4 ft). Maximum detection height is 5 m (16.4 ft).

The white internal LED provides feedback of detected motion and can be manually controlled.

Model No. 0180-12 (White)

Model No. 0180-13 (Black)

A Recessed button

B Mounting clip

C Central IR window

43mm / 1.70"

52 mm / 2.00"

360°

90°
