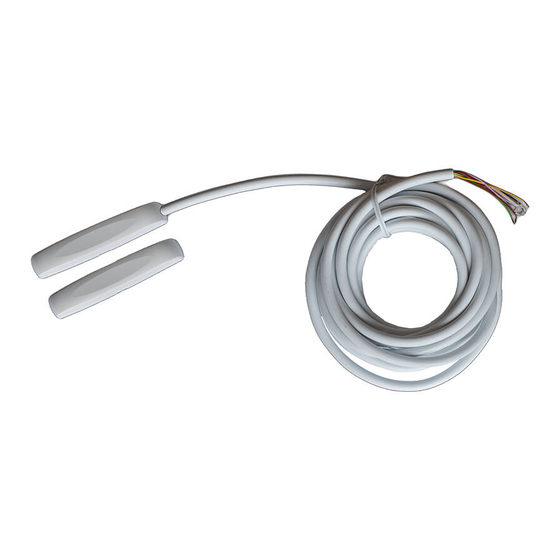

- Page 1 DC418 Magnetic Contact Operation and Installation Manual 1 of 6 © 2019 UTC Fire & Security Americas Corporation, Inc. P/N 466-2914 • REV C • ISS 15MAR19...
- Page 2 P/N 466-2914 • REV C • ISS 15MAR19 2 of 6...
- Page 3 DC418 D 418 Intrusion Tampering / Removal Protection External Field / Fault Burglar Alarm System Intrusion zone Tamper zone Intrusion internal zone DC418 D 418 Intrusion Tampering / Removal Protection External Field / Fault Termination Resistor Burglar Alarm System 12-24 V DC...
-
Page 4: Installation

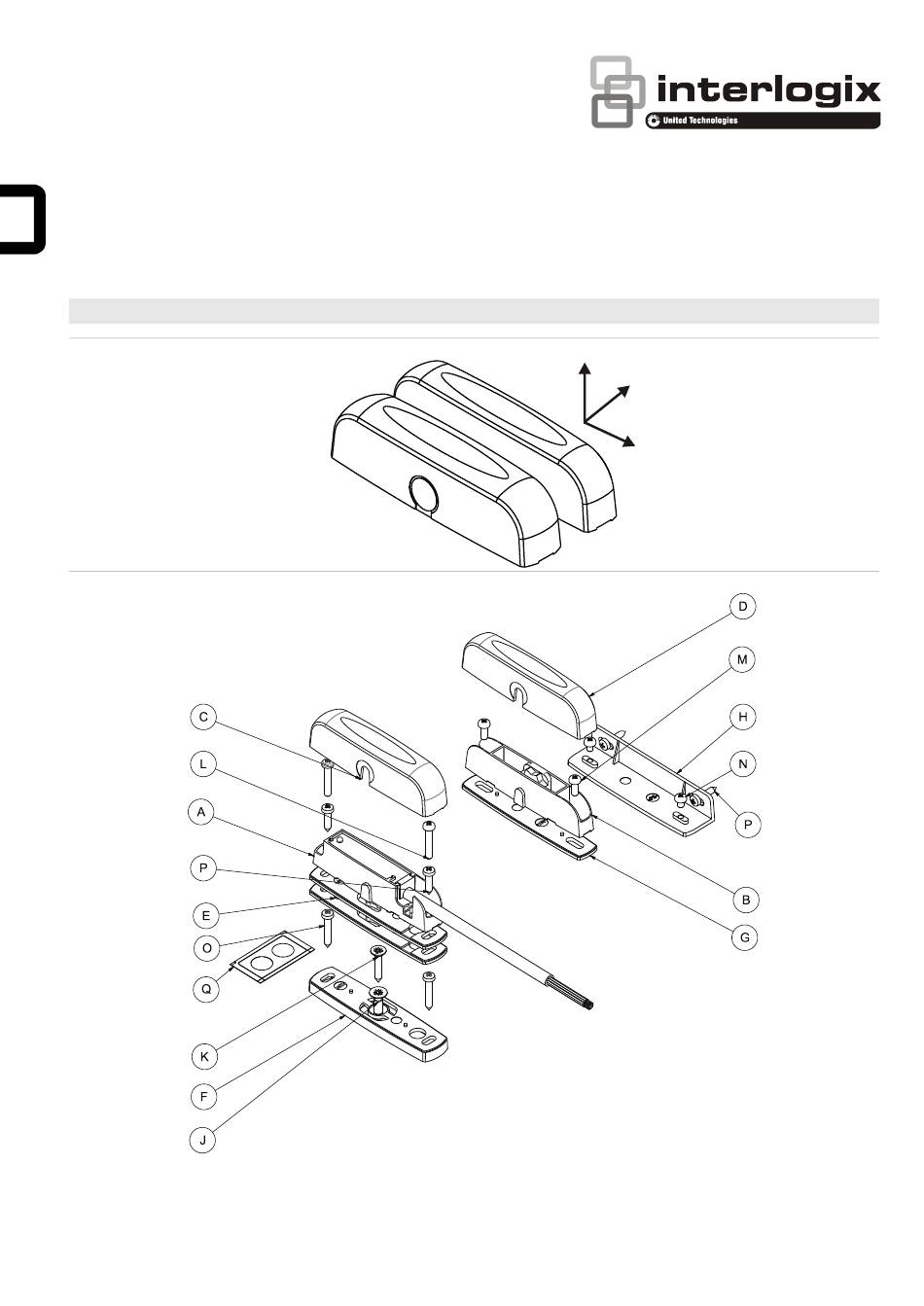

Description Detector Cover Thanks to its certification according to EN 50131-2-6:2008 Magnet Cover grade 4, the magnetic detector DC418 allows for contact-free Spacer Disk opening monitoring of doors and windows in accordance with Spacer Disk (Large) the highest security requirement specifications. - Page 5 the cable must be moved accordingly, before you screw in the To learn-in the unit to the installation environment: detector. Do not place the housing cover on the detector until Contact the command wire to ground to activate the learn- you have finished the teach-in procedure (see "Configuration"...
- Page 6 5 to 12 mm Permitted installation gap between magnet and detector Contact information Installation offset on the sides (revolving) max. 1.5 mm www.utcfireandsecurity.com or www.interlogix.com. Clearance from metal components min. 2 mm For customer support, see www.utcfssecurityproducts.eu Permitted tolerance after learn-in (radial) max.
