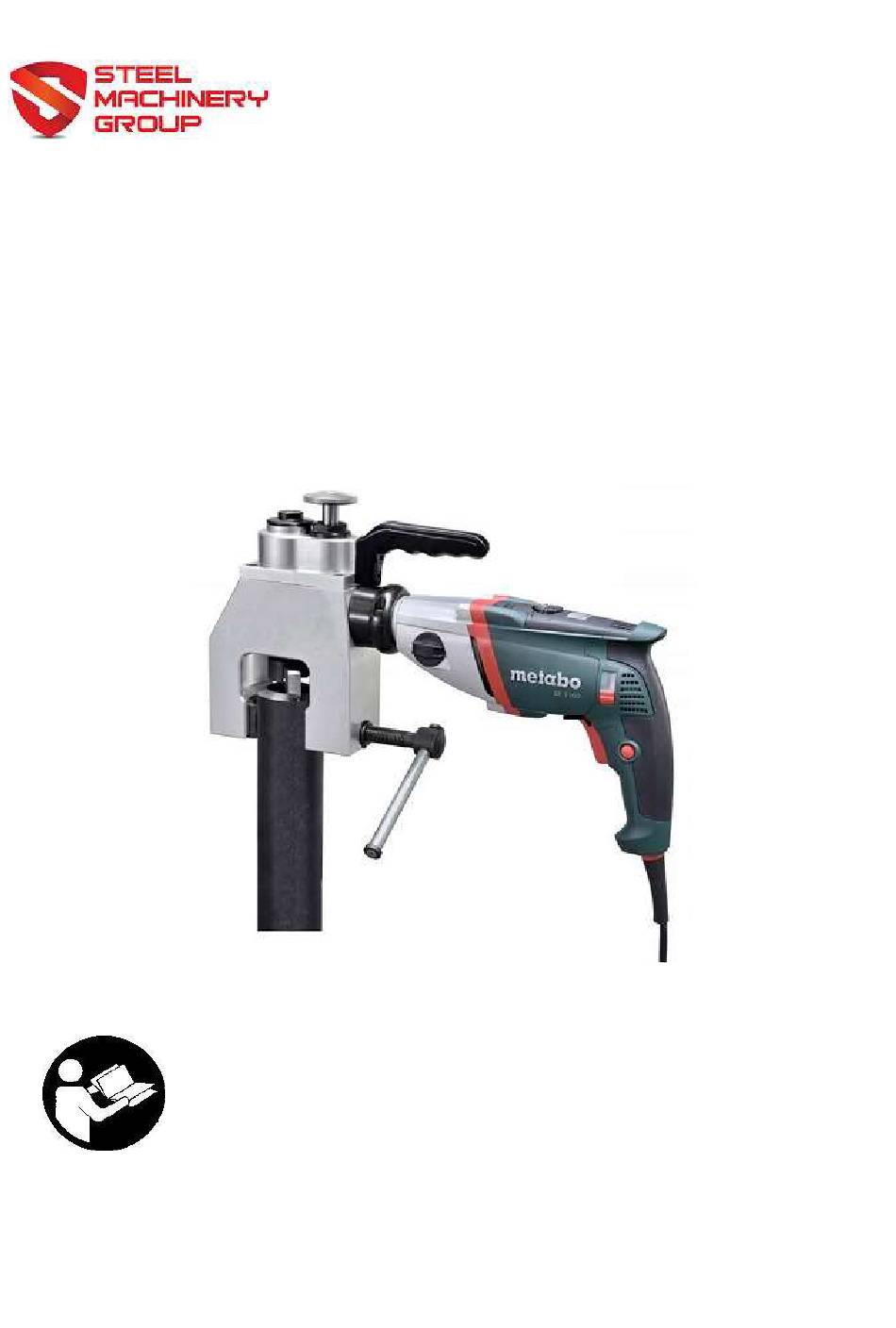

- Page 1 SMG ISO Series OD-Mounted Automatic Pipe Beveling Machine Operation Manual...
- Page 2 TABLE OF CONTENTS PART 1 EQUIPMENT INSTRUCTION PART 2 SAFETY INSTRUCTIONS PART 3 INSTALLATIONS PART 4 INSTALLATIONS AND OPERATION IMPORTANT PART 5 NOTES PART 6 EXPLODED VIEWS AND PARTS LIST TROUBLE PART 7 TROUBLE SHOOTING...

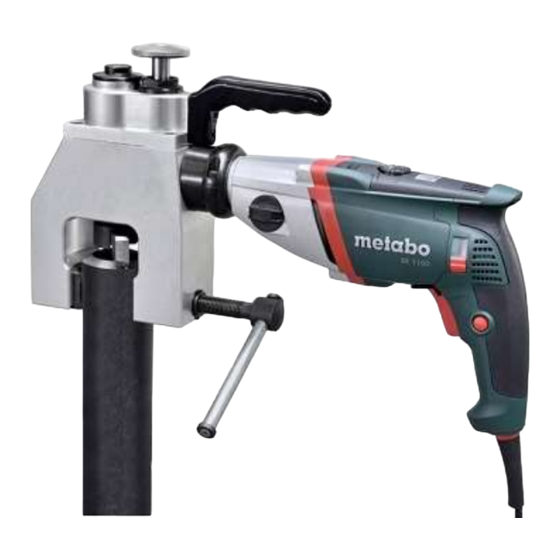

- Page 3 ISO series of automatic pipe beveling machine is a new designed OD-Mounted electric type beveling machine, equipped Germany METABO motor (BE1100). With following features make it widely used in the beveling working of small size pipe and work of pipe in narrow space, especially for pipe panel.
- Page 4 PART 2 SAFTY INSTRUCTIONS We take great pride in manufacturing safe, quality products. Please comply with the following safety rules and instructions before operating the equipment. Read the following content before working READ THE OPERATION MANUAL Before installing, you should read the manual, and make sure you understand all setup and operating instructions, it can help you save time and avoid injuring the operator and the machines INSPECT MACHINE &...
- Page 5 PART 3 INSTALLATIONS GENERAL VIEW Figure A: General View Description Description Locking key, METABO motor Beveling tool Switch, METABO motor Tool holder (Cutter disk) Direction selector, locked Body, aluminum Nameplate Speed changer Signal lamp Reduction gearbox Speed governor Clamping screw...
- Page 6 When working thin wall pipe, can adopt high grade low speed, means “2-A” or “2-B” 4. Signal lamp: METABO motor signal device, when using, should pay attention to. If the yellow light flashing, show that the carbon brush wear almost completely, need to change the new one;...
- Page 7 6. Clamp pad: Different size clamp pad for clamp the different pipe size. Each machine has different clamp pad. See below sheet: Model Clamp pad size (OD mm) SMG ISO-63C 28,32,42,45,54,57,60,63 SMG ISO-76C 42,45,54,57,60,63,68,76 SMG ISO-89C 63,68,76,83,89 SMG ISO-114C 76,83,89,95,102,108,114 Note: 1.
- Page 8 PART 4 INSTALLATIONS AND OPERATION OPERATION PROCEDURE 1. Measure the OD of the pipe, and choose the proper clamp pad install on the machine. The working range marked on the clamp pad, it is easy choose. Caution: The clamp pad size must same as pipe size, otherwise the beveling will be eccentric 2.
- Page 9 PART 5 IMPORTANT NOTES The following point, please pay more attention: 1. While working, spray the coolant continuously and clean the iron scrap. 1.1 Make the iron scrap come out easily. 1.2 Prolong the tool life 1.3 Make sure avoid the coolant goes into electric motor 1.4 Make sure avoid the iron scrap goes into electric motor 2.
- Page 10 PART 6 EXPLODED VIEWS AND PARTS LIST ISO-63C Exploded View...
- Page 11 Bearing Semicircle block 63C-08 63C-37 Deep groove ball bearing Motor couple 63C-09 63C-38 Hexagonal cap Bolts 63C-10 63C-39 Cover Motor, METABO BE1100 63C-11 63C-40 Bolts Speed governor 63C-12 63C-41 Cap, backstop Signal lamp 63C-13 63C-42 Backstop Locking key, switch 63C-14...
- Page 12 PART 7 TROUBLE SHOOTING Trouble Possible reason Remedy Check the cable to see if it is well The cable is not well connected Motor does not work installed, Wait to remove the overload Overload protection not remove protection The gear of motor wears out or Abnormal noise of Electric damaged Replace the parts by professional...
