Gorenje RI1502LA4 Mounting Instructions

Integrated refrigerating and freezing appliances

Integrated Refrigerating and Freezing

Appliances

Mounting instructions for refrigerating and freezing appliances are for qualified

technicians only. Appliance should be mounted and installed in compliance with these

instructions, current standards and regulations. Mounting instructions were prepared

for various types/models of appliances, therefore they may describe some

procedures that do not apply to your appliance.

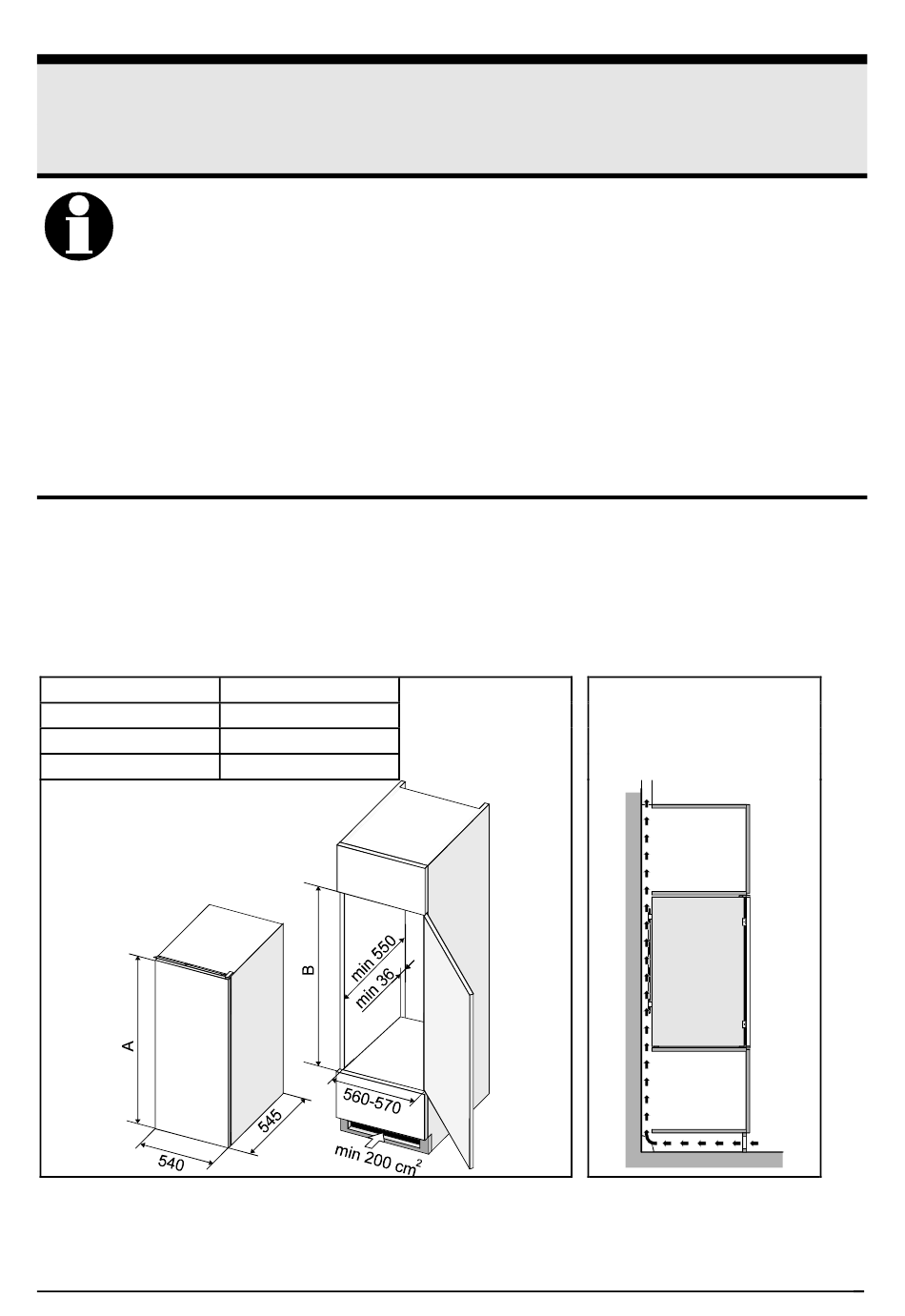

Mounting Dimensions and Required Air Circulation

The rear wall of the appliance is getting warm during the operation of the appliance (and water is

evaporating from the drain pan on the compressor). You must therefore provide for adequate air

circulation on the rear of the appliance.

• At the base of the kitchen unit intended for building in the integrated appliance, there should be

at least 200 cm˛ free space, for adequate air circulation.

• On the upper part of the appliance the air is coming out, so try not to cover the opening for the

outflow air.

A (mm)

875

1025

1225

Mounting Dimensions and Required Air

Circulation.......................................................................5

Mounting The Appliance.................................................7

B (mm)

875-880

1025-1030

1225-1230

Mounting Instructions

Table of Contents

Do you have a question about the RI1502LA4 and is the answer not in the manual?

Page 1 Integrated Refrigerating and Freezing Appliances Mounting instructions for refrigerating and freezing appliances are for qualified technicians only. Appliance should be mounted and installed in compliance with these instructions, current standards and regulations. Mounting instructions were prepared for various types/models of appliances, therefore they may describe some procedures that do not apply to your appliance.
Page 2 Changing the Direction of Opening the Door If you find the direction of opening the door on your appliance inconvenient, you can change it. Holes on the opposite side have already been prepared in the factory and are now plugged. •...
Page 3 Mounting the Appliance • Push the appliance for some 38 mm into the kitchen unit and allow at least 4 mm free space on both sides between the appliance and the side walls of the kitchen unit (Fig. 1). • Widely open the door and put it together with the kitchen unit door. The procedure is as follows. −...
