GREEN RUSSIAN
Kongratulations Komrades!
the
You now have in your possession
authentic reissue of the legendary Green
Russian Big Muff Pi. We should know, we built the original. Now you've got the exact
same sound beloved by guitarists and bassists alike at your fingertips, but in a
smaller, more pedalboard-friendly enclosure. So, throw off your chains and unite with
the finest harmonic distortion-sustain device ever made.

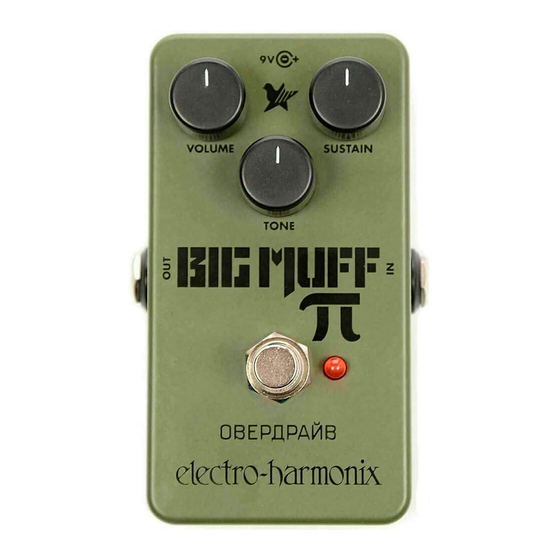

OPERATING INSTRUCTIONS

VOLUME Knob

Use the VOLUME knob to set the output level.

TONE Knob

Adjust the TONE knob to explore a range of sounds from high treble to deep bass.
Turn the knob clockwise to increase treble and decrease bass. Turn the knob
counterclockwise to increase bass and decrease treble.

SUSTAIN Knob

The SUSTAIN knob adjusts the amount of sustain and distortion.
Footswitch & Status LED
Use the footswitch to toggle between effect and bypass. The Green Russian Big Muff
is active when the LED is lit. When the LED is off, the pedal is in true bypass mode.

IN Jack

Plug the output of your instrument or another effects pedal into the ¼" IN jack. The
input impedance presented at this jack is 130kΩ.

OUT Jack

Connect the Green Russian Big Muff's ¼" OUT jack to the input of your amplifier or
another effects pedal. When the Green Russian Big Muff is in bypass mode, the OUT
jack is connected directly to the IN jack. The output impedance is nominally 25kΩ.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREEN RUSSIAN BIG MUFF Pi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electro-Harmonix GREEN RUSSIAN BIG MUFF Pi

  • Page 1 GREEN RUSSIAN Kongratulations Komrades! You now have in your possession authentic reissue of the legendary Green Russian Big Muff Pi. We should know, we built the original. Now you’ve got the exact same sound beloved by guitarists and bassists alike at your fingertips, but in a smaller, more pedalboard-friendly enclosure.
  • Page 2 POWER! Powering the Green Russian Big Muff Pi The Green Russian Big Muff Pi may be powered from a 9V battery or an optional ® ® 9VDC AC Adapter such as the EHX9.6DC-200 or any Boss or Ibanez style AC adapters capable of delivering at least 30mA.
