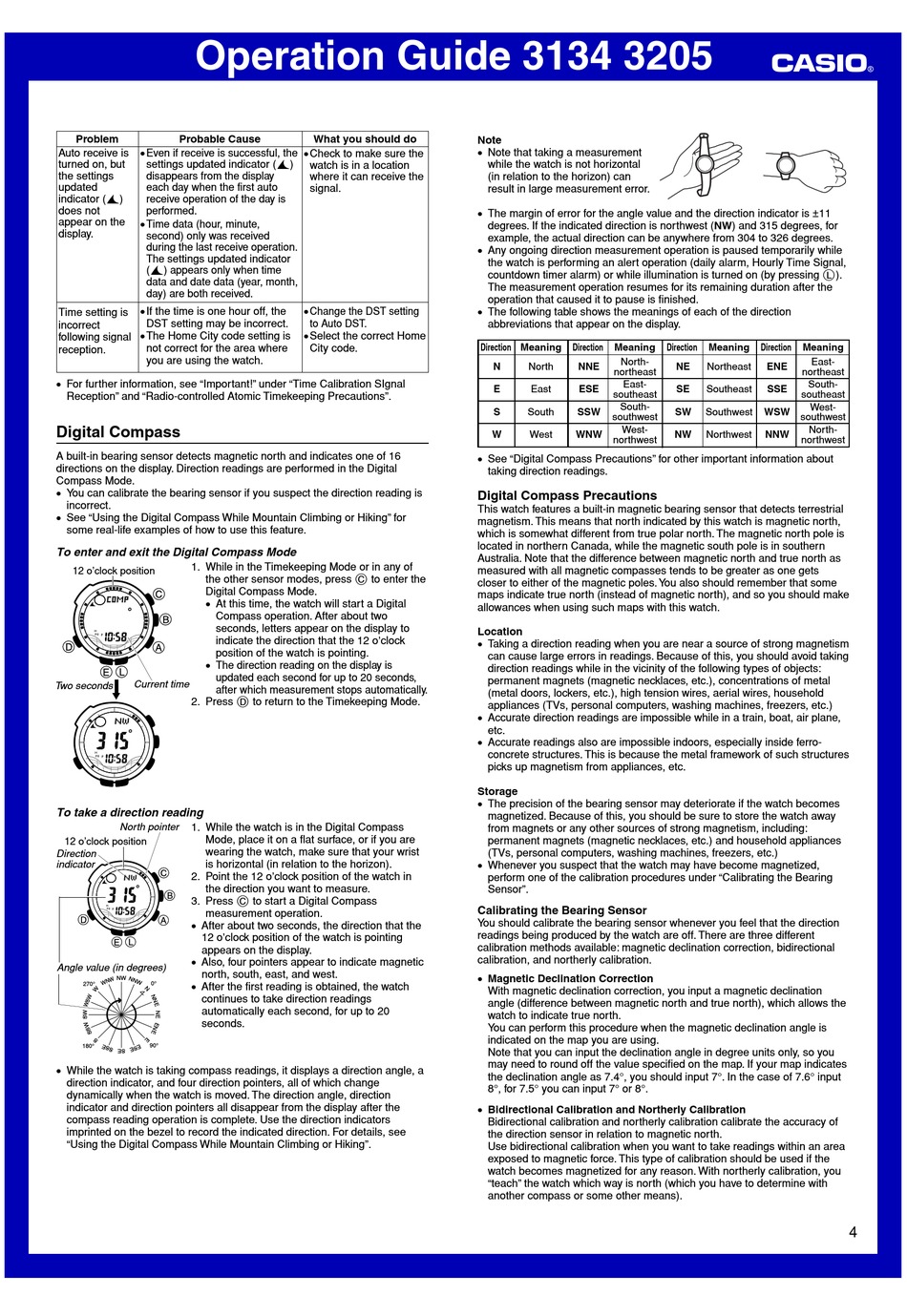

Operation Guide 3134 3205
Problem
Probable Cause
• Even if receive is successful, the
Auto receive is
turned on, but
settings updated indicator (
the settings
disappears from the display
updated
each day when the first auto
indicator (
)
receive operation of the day is
does not
performed.
• Time data (hour, minute,
appear on the
display.
second) only was received
during the last receive operation.
The settings updated indicator
(
) appears only when time
data and date data (year, month,
day) are both received.
• If the time is one hour off, the
Time setting is
DST setting may be incorrect.
incorrect
• The Home City code setting is
following signal
not correct for the area where
reception.
you are using the watch.
• For further information, see "Important!" under "Time Calibration SIgnal
Reception" and "Radio-controlled Atomic Timekeeping Precautions".
Digital Compass
A built-in bearing sensor detects magnetic north and indicates one of 16
directions on the display. Direction readings are performed in the Digital
Compass Mode.
• You can calibrate the bearing sensor if you suspect the direction reading is
incorrect.
• See "Using the Digital Compass While Mountain Climbing or Hiking" for
some real-life examples of how to use this feature.
To enter and exit the Digital Compass Mode
1. While in the Timekeeping Mode or in any of
12 o'clock position
the other sensor modes, press C to enter the
Digital Compass Mode.
• At this time, the watch will start a Digital
Compass operation. After about two
seconds, letters appear on the display to
indicate the direction that the 12 o'clock
position of the watch is pointing.
• The direction reading on the display is
updated each second for up to 20 seconds,
Current time
Two seconds
after which measurement stops automatically.
L
2. Press D to return to the Timekeeping Mode.
To take a direction reading
North pointer
1. While the watch is in the Digital Compass
Mode, place it on a flat surface, or if you are
12 o'clock position
wearing the watch, make sure that your wrist
Direction
indicator
is horizontal (in relation to the horizon).
2. Point the 12 o'clock position of the watch in
the direction you want to measure.
3. Press C to start a Digital Compass
measurement operation.
• After about two seconds, the direction that the
12 o'clock position of the watch is pointing
appears on the display.
• Also, four pointers appear to indicate magnetic
Angle value (in degrees)
north, south, east, and west.
NW
• After the first reading is obtained, the watch
270°
continues to take direction readings
automatically each second, for up to 20
seconds.
180°
90°
• While the watch is taking compass readings, it displays a direction angle, a
direction indicator, and four direction pointers, all of which change
dynamically when the watch is moved. The direction angle, direction
indicator and direction pointers all disappear from the display after the
compass reading operation is complete. Use the direction indicators
imprinted on the bezel to record the indicated direction. For details, see
"Using the Digital Compass While Mountain Climbing or Hiking".
What you should do
• Check to make sure the
)
watch is in a location
where it can receive the
signal.
• Change the DST setting
to Auto DST.
• Select the correct Home
City code.
Note
• Note that taking a measurement
while the watch is not horizontal
(in relation to the horizon) can
result in large measurement error.
• The margin of error for the angle value and the direction indicator is ±11
degrees. If the indicated direction is northwest (NW) and 315 degrees, for
example, the actual direction can be anywhere from 304 to 326 degrees.
• Any ongoing direction measurement operation is paused temporarily while
the watch is performing an alert operation (daily alarm, Hourly Time Signal,
countdown timer alarm) or while illumination is turned on (by pressing L).
The measurement operation resumes for its remaining duration after the
operation that caused it to pause is finished.
• The following table shows the meanings of each of the direction
abbreviations that appear on the display.
Direction Meaning
Direction
Meaning
North-
N
North
NNE
northeast
East-
E
East
ESE
southeast
South-
S
South
SSW
southwest
West-
W
West
WNW
northwest
• See "Digital Compass Precautions" for other important information about
taking direction readings.

Digital Compass Precautions

This watch features a built-in magnetic bearing sensor that detects terrestrial
magnetism. This means that north indicated by this watch is magnetic north,
which is somewhat different from true polar north. The magnetic north pole is
located in northern Canada, while the magnetic south pole is in southern
Australia. Note that the difference between magnetic north and true north as
measured with all magnetic compasses tends to be greater as one gets
closer to either of the magnetic poles. You also should remember that some
maps indicate true north (instead of magnetic north), and so you should make
allowances when using such maps with this watch.
Location
• Taking a direction reading when you are near a source of strong magnetism
can cause large errors in readings. Because of this, you should avoid taking
direction readings while in the vicinity of the following types of objects:
permanent magnets (magnetic necklaces, etc.), concentrations of metal
(metal doors, lockers, etc.), high tension wires, aerial wires, household
appliances (TVs, personal computers, washing machines, freezers, etc.)
• Accurate direction readings are impossible while in a train, boat, air plane,
etc.
• Accurate readings also are impossible indoors, especially inside ferro-
concrete structures. This is because the metal framework of such structures
picks up magnetism from appliances, etc.
Storage
• The precision of the bearing sensor may deteriorate if the watch becomes
magnetized. Because of this, you should be sure to store the watch away
from magnets or any other sources of strong magnetism, including:
permanent magnets (magnetic necklaces, etc.) and household appliances
(TVs, personal computers, washing machines, freezers, etc.)
• Whenever you suspect that the watch may have become magnetized,
perform one of the calibration procedures under "Calibrating the Bearing
Sensor".
Calibrating the Bearing Sensor
You should calibrate the bearing sensor whenever you feel that the direction
readings being produced by the watch are off. There are three different
calibration methods available: magnetic declination correction, bidirectional
calibration, and northerly calibration.
• Magnetic Declination Correction
With magnetic declination correction, you input a magnetic declination
angle (difference between magnetic north and true north), which allows the
watch to indicate true north.
You can perform this procedure when the magnetic declination angle is
indicated on the map you are using.
Note that you can input the declination angle in degree units only, so you
may need to round off the value specified on the map. If your map indicates
the declination angle as 7.4°, you should input 7°. In the case of 7.6° input
8°, for 7.5° you can input 7° or 8°.
• Bidirectional Calibration and Northerly Calibration
Bidirectional calibration and northerly calibration calibrate the accuracy of
the direction sensor in relation to magnetic north.
Use bidirectional calibration when you want to take readings within an area
exposed to magnetic force. This type of calibration should be used if the
watch becomes magnetized for any reason. With northerly calibration, you
"teach" the watch which way is north (which you have to determine with
another compass or some other means).
Direction
Meaning
Direction
Meaning
East-
NE
Northeast
ENE
northeast
South-
SE
Southeast
SSE
southeast
West-
SW
Southwest
WSW
southwest
North-
NW
Northwest
NNW
northwest
