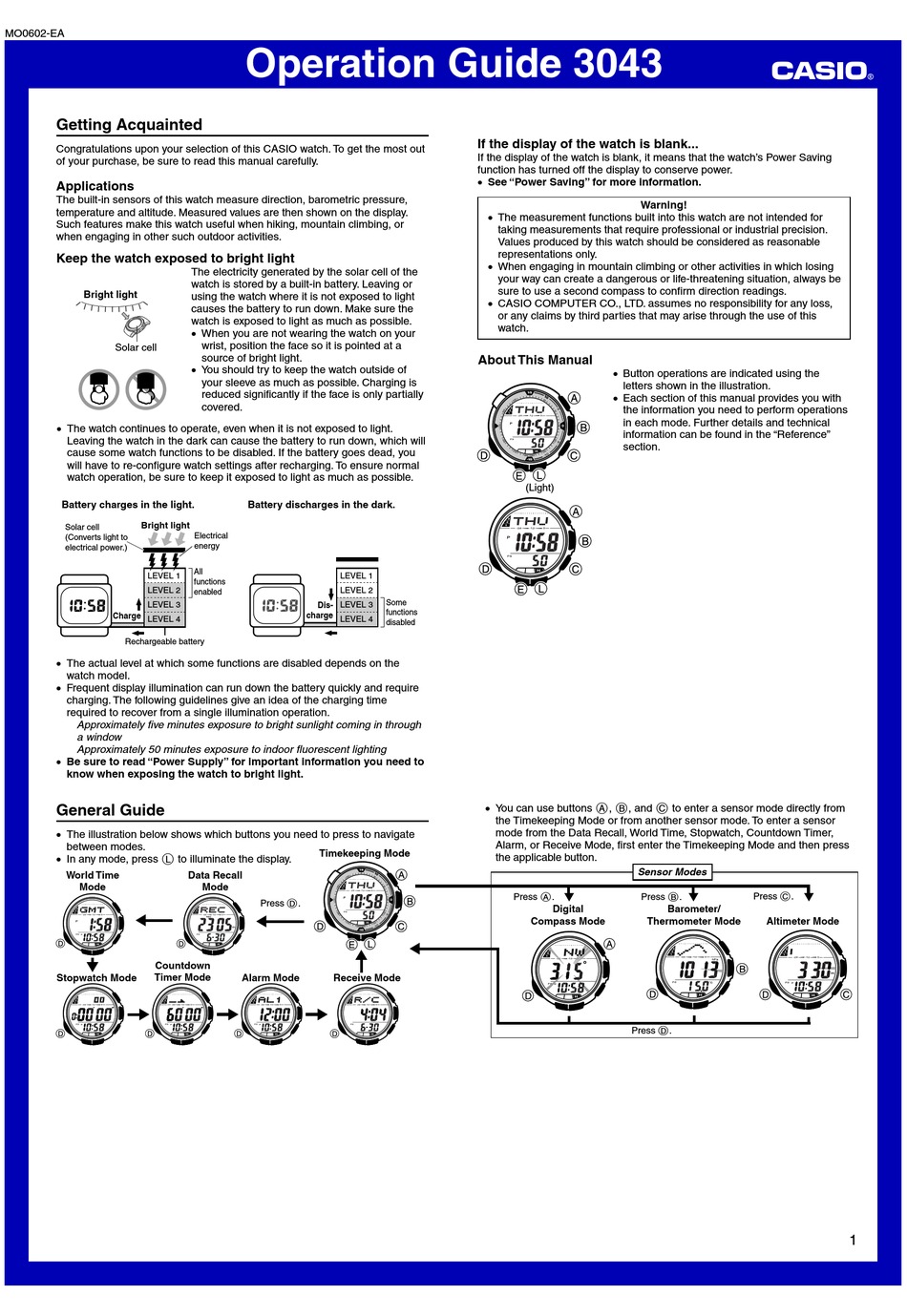

MO0602-EA

Getting Acquainted

Congratulations upon your selection of this CASIO watch. To get the most out
of your purchase, be sure to read this manual carefully.
Applications
The built-in sensors of this watch measure direction, barometric pressure,
temperature and altitude. Measured values are then shown on the display.
Such features make this watch useful when hiking, mountain climbing, or
when engaging in other such outdoor activities.
Keep the watch exposed to bright light
Bright light
Solar cell
• The watch continues to operate, even when it is not exposed to light.
Leaving the watch in the dark can cause the battery to run down, which will
cause some watch functions to be disabled. If the battery goes dead, you
will have to re-configure watch settings after recharging. To ensure normal
watch operation, be sure to keep it exposed to light as much as possible.
Battery charges in the light.
Bright light
Solar cell
(Converts light to
electrical power.)
LEVEL 1
LEVEL 2
LEVEL 3
Charge
LEVEL 4
Rechargeable battery
• The actual level at which some functions are disabled depends on the
watch model.
• Frequent display illumination can run down the battery quickly and require
charging. The following guidelines give an idea of the charging time
required to recover from a single illumination operation.
Approximately five minutes exposure to bright sunlight coming in through
a window
Approximately 50 minutes exposure to indoor fluorescent lighting
• Be sure to read "Power Supply" for important information you need to
know when exposing the watch to bright light.
General Guide
• The illustration below shows which buttons you need to press to navigate
between modes.
• In any mode, press L to illuminate the display.
World Time
Mode
Countdown
Stopwatch Mode
Timer Mode
Operation Guide 3043
The electricity generated by the solar cell of the
watch is stored by a built-in battery. Leaving or
using the watch where it is not exposed to light
causes the battery to run down. Make sure the
watch is exposed to light as much as possible.
• When you are not wearing the watch on your
wrist, position the face so it is pointed at a
source of bright light.
• You should try to keep the watch outside of
your sleeve as much as possible. Charging is
reduced significantly if the face is only partially
covered.
Battery discharges in the dark.
Electrical
energy
All
LEVEL 1
functions
LEVEL 2
enabled
Dis-
LEVEL 3
charge
LEVEL 4
Timekeeping Mode
Data Recall
Mode
Press D.
L
Alarm Mode
Receive Mode
If the display of the watch is blank...
If the display of the watch is blank, it means that the watch's Power Saving
function has turned off the display to conserve power.
• See "Power Saving" for more information.
• The measurement functions built into this watch are not intended for
taking measurements that require professional or industrial precision.
Values produced by this watch should be considered as reasonable
representations only.
• When engaging in mountain climbing or other activities in which losing
your way can create a dangerous or life-threatening situation, always be
sure to use a second compass to confirm direction readings.
• CASIO COMPUTER CO., LTD. assumes no responsibility for any loss,
or any claims by third parties that may arise through the use of this
watch.
About This Manual
(Light)
Some
functions
disabled
• You can use buttons A, B, and C to enter a sensor mode directly from
the Timekeeping Mode or from another sensor mode. To enter a sensor
mode from the Data Recall, World Time, Stopwatch, Countdown Timer,
Alarm, or Receive Mode, first enter the Timekeeping Mode and then press
the applicable button.
Press A.
Digital
Compass Mode
Warning!
• Button operations are indicated using the
letters shown in the illustration.
• Each section of this manual provides you with
the information you need to perform operations
in each mode. Further details and technical
information can be found in the "Reference"
section.
Sensor Modes
Press B.
Press C.
Barometer/
Thermometer Mode
Altimeter Mode
Press D.
1
