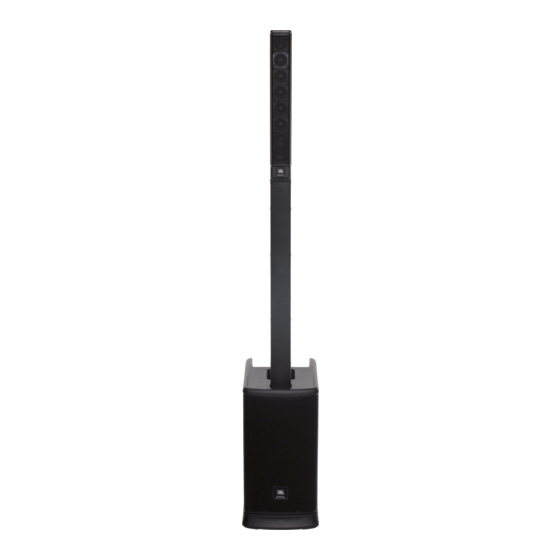

Harman JBL Professional EON ONE MK2 Quick Start Manual

BA TTERY POWERED | PORT ABLE P.A. SY STEM | BLUETOOTH AUDIO | LEGENDARY JBL SOUND
QUICKST ART GUIDE
1 . LISTENING
CONFIGURA TIONS
321.07
1
Battery
and Speaker
2. POWER ON THE UNIT
1. Connect the power cord to the
Power Receptacle
2. Press the Power Button [G]
second to engage power.
321.07
2
Battery with
Speaker and
Spacer
(M).
for .5 of a
3. PLUG IN THE INPUTS
1. Turn the Channel Volumes (E)
to the left before connecting any inputs.
2. Connect your devices to the
[J] (K) (L] .
4. SET UP THE CHANNELS
1. Insert input into desired channel
2. Determine the CH1 thru CH5 (F]
For microphone set to 3 o'clock. For line
source set to 9 o'clock.
3. Slowly turn the Master /Menu Encoder
(C) to the right until the desired volume
is reached.
5. EDIT A CHANNEL
1. Depress the knob of the channel
wish to edit
2. The CH LED (F) above the respective
channel will light
3. You can now edit Bass, Treble, Mid and
Reverb for that respective channel.
4. Press the knob again to return to
mix mode.
6. PAIR
This device supports Bluetooth audio
streaming.
To connect your device:
1. Turn on Bluetooth on your source device.
2. Long press CH5. Or use
to trigger BT pairing.
3. Find EON ONE MK2 on your device and
select Bluetooth.
all the way
Input Jacks
source.
(E) you
AUDIO
LCD Display [A]
