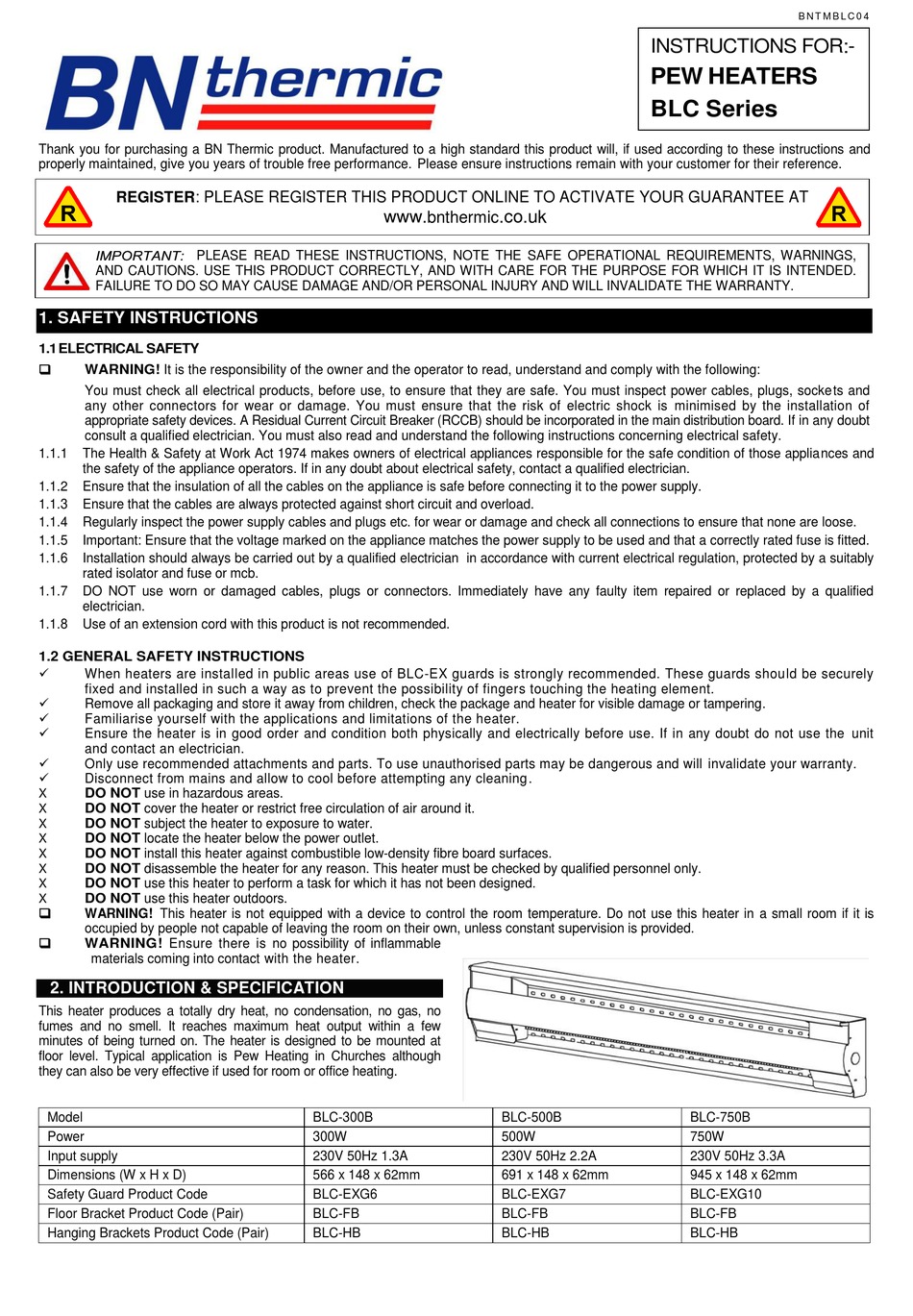

BN Thermic BLC Series Instructions

Thank you for purchasing a BN Thermic product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE YOUR GUARANTEE AT
PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS,
AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

1. SAFETY INSTRUCTIONS

1 . 1 ELECTRICAL SAFETY


WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. If in any doubt
consult a qualified electrician. You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and
the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.2 Ensure that the insulation of all the cables on the appliance is safe before connecting it to the power supply.
1.1.3 Ensure that the cables are always protected against short circuit and overload.
1.1.4 Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.
1.1.5 Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.
1.1.6 Installation should always be carried out by a qualified electrician in accordance with current electrical regulation, protected by a suitably
rated isolator and fuse or mcb.
1.1.7 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified
electrician.
1.1.8 Use of an extension cord with this product is not recommended.

1.2 GENERAL SAFETY INSTRUCTIONS


When heaters are installed in public areas use of BLC-EX guards is strongly recommended. These guards should be securely
fixed and installed in such a way as to prevent the possibility of fingers touching the heating element.

Remove all packaging and store it away from children, check the package and heater for visible damage or tampering.

Familiarise yourself with the applications and limitations of the heater.

Ensure the heater is in good order and condition both physically and electrically before use. If in any doubt do not use the unit
and contact an electrician.

Only use recommended attachments and parts. To use unauthorised parts may be dangerous and will invalidate your warranty.

Disconnect from mains and allow to cool before attempting any cleaning .
X DO NOT use in hazardous areas.
DO NOT cover the heater or restrict free circulation of air around it.
X
DO NOT subject the heater to exposure to water.
X
DO NOT locate the heater below the power outlet.
X
DO NOT install this heater against combustible low-density fibre board surfaces.
X
X DO NOT disassemble the heater for any reason. This heater must be checked by qualified personnel only.
DO NOT use this heater to perform a task for which it has not been designed.
X
X DO NOT use this heater outdoors.

WARNING! This heater is not equipped with a device to control the room temperature. Do not use this heater in a small room if it is
occupied by people not capable of leaving the room on their own, unless constant supervision is provided.

WARNING! Ensure there is no possibility of inflammable
materials coming into contact with the heater.

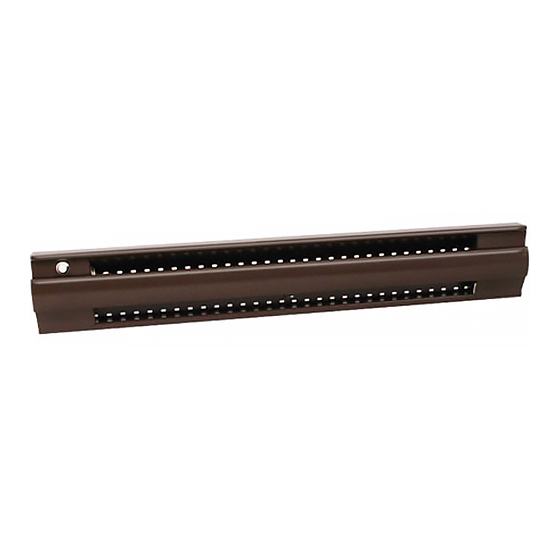

2. INTRODUCTION & SPECIFICATION
This heater produces a totally dry heat, no condensation, no gas, no
fumes and no smell. It reaches maximum heat output within a few
minutes of being turned on. The heater is designed to be mounted at
floor level. Typical application is Pew Heating in Churches although
they can also be very effective if used for room or office heating.
Model
Power
Input supply
Dimensions (W x H x D)
Safety Guard Product Code
Floor Bracket Product Code (Pair)
Hanging Brackets Product Code (Pair)
www.
bnthermic
BLC-300B
300W
230V 50Hz 1.3A
566 x 148 x 62mm
BLC-EXG6
BLC-FB
BLC-HB
INSTRUCTIONS FOR:-
PEW HEATERS
BLC Series
.co.uk
BLC-500B
500W
230V 50Hz 2.2A
691 x 148 x 62mm
BLC-EXG7
BLC-FB
BLC-HB
B N T M B L C 0 4
BLC-750B
750W
230V 50Hz 3.3A
945 x 148 x 62mm
BLC-EXG10
BLC-FB
BLC-HB
