Summary of Contents for Ferguson Ariva HDplayer 200A

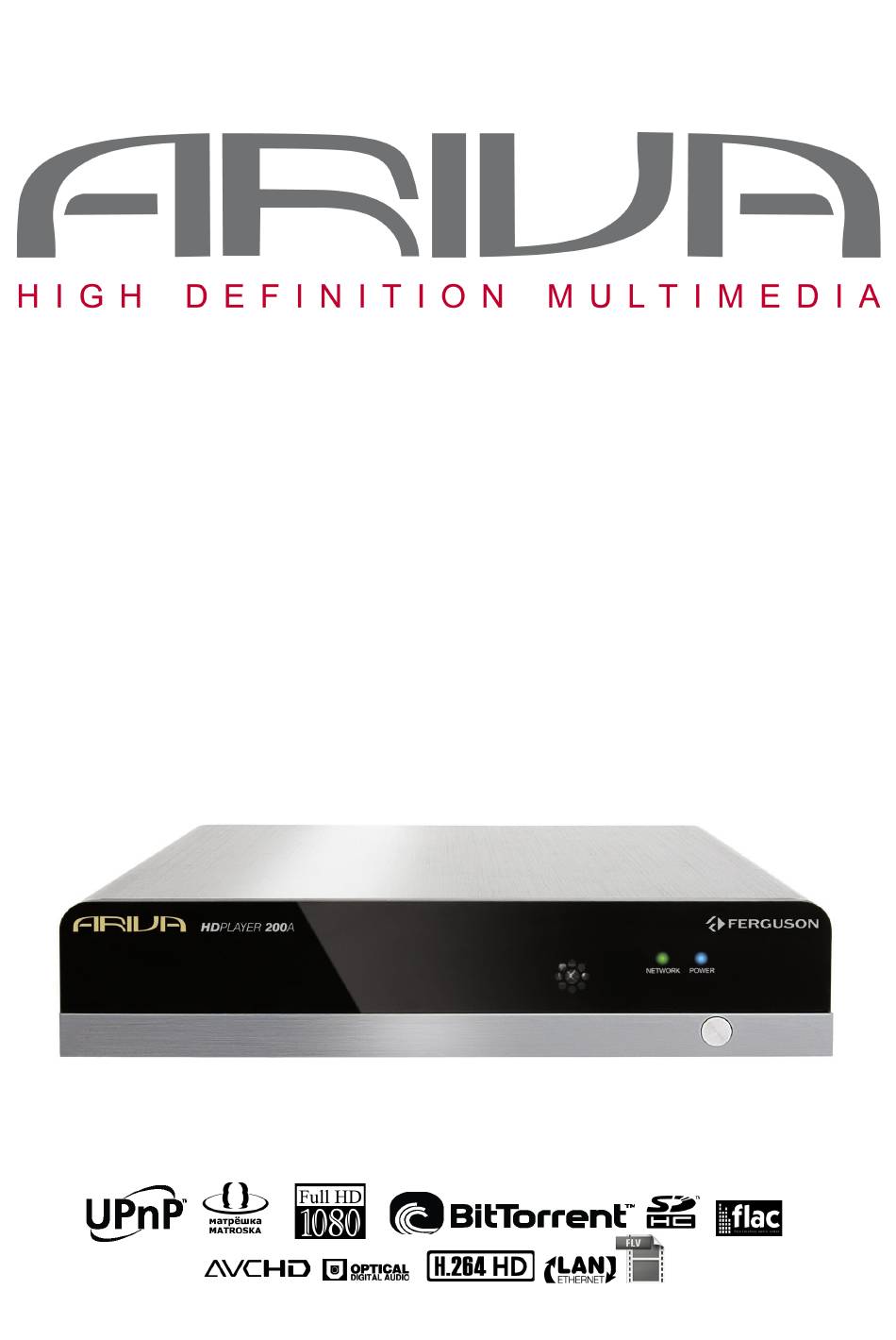

  • Page 1 Ariva HDplayer 200A Networked Media Tank English...

  • Page 3: Table Of Contents

    Spis treści ABOUT THE INSRUCTION MANUAL....................4 MARKINGS AND SIGNS APPLIED TO THE RECEIVER..............4 1. Before you begin..........................5 1.1 Safety Information........................5 1.2 Features............................7 1.3 Package Contents........................9 1.4 Introduction of remote......................10 1.5 Replace the batteries of remote control...................11 1.6 Front and rear panel.........................11 2.
  • Page 4 7.2 Language Setting........................36 7.3 Photo Setting..........................36 7.4 Movie Setting...........................36 7.5 Music Setting...........................37 7.6 TXT Setting..........................37 7.7 Default Setting.........................37 7.8 About Media Box........................38 7.9 Up-grade Setting........................38 7.10 Network setup........................39 Troubleshooting..........................40 Specification............................41 Glossary..............................42...

  • Page 5: About The Insruction Manual

    Ferguson has made every effort to provide the most current information about its products. Ferguson does not grant any guarantee as to the contents of the present instruction manual and disclaims any implied guarantees concerning market value or suitability for specific purposes.

  • Page 6: Before You Begin

    Thank you for purchasing the Ariva HDplayer 200A. This user manual provides step-by-step instructions for installing and using your new HD media player. Ariva HDplayer 200A is a- compact, highdefinition (HD) USB 2.0 media player that attaches to an entertainment unit through a variety of audio/video interfaces and supports playback of major audio, video, and image file formats.
  • Page 7 Ferguson has used all the available means to ensure the latest information regarding its products. Ferguson does not give a warranty regarding the contents of this User Manual and waives any implied warranties regarding market value or fitness for specific purposes. The information contained herein provide guidelines allowing the operation and maintenance of the receiver.

  • Page 8: Features

    1.2 Features Playable Content File Systems FAT (FAT16 and FAT32) NTFS EXT2, EXT3 ISO-9660 and partly UDF on external optical drive (DVD) Video containers MPEG-1/2 Program Stream (MPG, MPEG) MPEG-2 Transport Stream (TS, TP, TRP, M2TS) MPEG-4 Part 14 (MP4) VOB (also ISO images with DVD-Video) AVI Matroska (MKV)
  • Page 9 Extensions recognized in Ariva file browser. List of recognized multimedia file extensions are listed below. Not all files with those extensions are playable - some files may include not supported codecs and/or settings. Files with other extensions Ariva will not play. aac, ape, flac, m4a, mps, ogg, wav, wma, bmp, gif, jpeg, jpg, png, tif, tiff, m3u, pls, txt, 3gp, avi, divx, flv, m2ts, m4v, mkv, mov, mpeg, mpg, mts, ogm, tp, trp, ts, vob, dat, iso, mp4, rm, rmvb.

  • Page 10: Package Contents

    1.3 Package Contents Please check to make sure the following contents are in the product package. Product contents may be subject to change.  Cables not specified above must be purchased separately. ...

  • Page 11: Introduction Of Remote

    1.4 Introduction of remote Functions of remote controller's keys: POWER: Turns the player on or switches it to standby mode MUTE: Turn on/off sound RESET: box resetting COPY/DELETE: copy or delete the files (from folder or device) FOLDER: go to the folder structure VIEW: press it to adjust the image ratio between 16:9 and 4:3 (not supported temporarily) DEVICE: choose the device...

  • Page 12: Replace The Batteries Of Remote Control

    1.5 Replace the batteries of remote control Remove the cover of the battery compartment on the rear panel of the remote control unit; slide it downwards and put it aside. Insert two AAA (R03) batteries into the compartment, observing the indicated polarity. Do not mix old and new batteries, or batteries of different types.
  • Page 13 Rear panel 1. COMPONENT - Component video output 3 x RCA (YpbPr). 2. COAXIAL (Digital Audio Out) – connect to coaxial audio input of an amplifier. 3, 9. USB 1/2 - Input the supported USB device. 4. HDMI - Audio and video output socket for the high definition television set. 5.

  • Page 14: System Start Up

    2. System Start up 2.1 AV input connection and TV 1. Connect one end of the 3 color ( white/Red/ Yellow) AV cable to the media player’s AV output interface ,the other end to TV Set AV input . Connection Can be made by color. 2.

  • Page 15: Hdmi Interface To Connect Tv (Suggested)

    1. Connect YPbPr Component cable into the product interface,the other three color input into a TV set. Connection can be made by color. 2. A two AV cable (red, white), respectively insert the AV output ports L, R,another two entered into TV audio ports L, R, according to the color connection is needed, or 2 (white, red) into the Power Amplifier or speaker for audio input.

  • Page 16: Startup Media Player

    3. Startup Media Player Follow the above steps to well connect and set up media player with TV, turn on the power switch, then enter into the main menu. Note: All available external storage device will show on the right corner of Main Menu (In blue can be used , Contrary in Grey).

  • Page 17: Movie Play

    Move to your desired function, press “OK” to enter in. If any empty device connect to player, there will Tips “No file”. 3.2 Movie Play Press “Left / Right” button on the remote to select the Movie icon, Press “OK” to enter into Movie thumbnail or Movie list Menu a) Press “Up/Down/Right/Left ”...

  • Page 18: Menu Of Movie List

    3.2.2 Menu of Movie list → → → When setting Movie setup View Thumbnail. Select Movie on the Main Menu and Press “OK” to enter into Movie thumbnail Video preview will show the Movie on the left interface. 3.2.3 Play Movie a) In Movie play status.
  • Page 19 b) In the process of playing video file, press “9” key, recall an time selection interface, time selection play can be set. (The election time should not longer than the total time the file). c) When Play Movie Press “Return” button to return video list/thumbnail interface, press “OK” key to play again.

  • Page 20: Photo Play

    3.3 Photo Play → → → a) When the Setting Photo setup View thumbnail ,Select the photo the by the "Left/ Right" key, press "OK” button to enter into the picture thumbnails or pictures list of the menu. b) Through "Up/Down/Left/Right" select preview images. Click "Slideshow button" Start Auto Play pictures, Press "Play/Pause”...

  • Page 21: Play Photo

    3.3.3 Play Photo In the photo preview process, according to remote control "OK" at the bottom of the screen will pop up picture messages menu (with out any operation, the menu will automatically fade out after 5 seconds) the contents of the course in the photo are "on a picture, play/suspense, stop pictures, rotate pictures, zoom images, background music on/off, image pulled effects".

  • Page 22: Music List Menu

    Choose "Music" icon on the main interface, press "OK' to enter into the music thumbnail. Sort → → music files according to user’s setting. ("Settings" "Music Settings" "The order of music files"). On the left of photo will shows "Artist" "Album" "File size" "File Types", "Total Time" of selected songs.

  • Page 23: Text Play

    3.5.2 Text Play When playing TXT document, press "OSD" bottom of the screen will pop up text messages menu, which are "Previous, on the line, Play/Pause, Stop, Playback, Zoom, Next line, Next page. Press "Left/ Right" to select the appropriate function, press "OK" to confirm. 3.6 Flash Play a) Select "Flash"...

  • Page 24: Flash Play

    3.6.2 Flash Play Press "Up/Down" key to choose flash on the list Menu, press "OK” to enter into flash play. 3.7 Network function 3.7.1 Streaming via UpnP-server A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.

  • Page 25: C) Streaming Media On Your Player

    c) Streaming Media on your Player - Connect your player to the home network (LAN or WLAN). - Visit UPNP menu on the player and press OK. - Enter into UPNP menu to visit Movie, Music, Photo or Text menu.
  • Page 26 - Enter into the Movie menu to browse or play the media library shared by Windows Media Player 11. The above menu language and list on the player will be same as the Windows Media Player 11. - Music,Photo and Text are with the same operating instruction as stream the movies.

  • Page 27: Net Radio

    3.7.2 Net Radio a) Visit NetRadio menu on the player and press OK. b) Enter into the NetRadio menu and sub-menu to browse the files.
  • Page 28 c) Enter into the last sub-menu and browse or play the files. Favorites - Press "Copy" under the last sub-menu to copy the selected file to Favorites List. For example: Select the file "Radio Swing Worldwide.mp3" and copy to favorites:...
  • Page 29 - Press "Return" until you come to Favorites menu,you will see the file "Radio Swing Worldwide.mp3" Favorites list. - Come to and press "OK" button to return and show all the radiolist. - Come to and press "OK" to delete the selected file. - Come to and press "OK"...

  • Page 30: Picasa

    3.8 Picasa Visit Picasa menu on the player and press OK. Enter into Picasa menu to input your Picasa account and password, then you can browse it.

  • Page 31: Flickr

    3.9 Flickr Visit Flickr menu on the player and press OK. Enter into Flickr menu to input your Flickr account, then you can browse it.

  • Page 32: Copy Function

    4. Copy function 4.1 Copy file and Folder Select any icon on the Main Menu to enter into the list menu (eps. File list, Movie List) after choose the file or folder, press "Menu" key to copy Menu, press “Left/Right" button select copy to enter into copy Sub-Menu interface.
  • Page 33 After copied device be chosen and press OK to file copy. Copy Complete After Copy complete Press Return key to return file list menu...

  • Page 34: Delete Function

    5. Delete Function Delete file and Folder Select the various options on the Main Menu to enter into the list Menu (eps. file list ,Movie List) after choose the file or folder, Press "Menu" key to copy/delete menu, press "Left/Right" button select delete to enter into delete.

  • Page 35: File List Menu

    6. File List Menu Select file icon on Main Menu press "OK" to enter in. All Audio/Video/Flash/Picture file will be show, press "Movie/Music/Flash/Photo"" can switching file interface view (File list Menu/File Thumbnail). Press "OK" to play. 6.1 File list menu 6.2 File thumbnail...

  • Page 36: System Setup

    7. System setup 1. Press "Left/Right" button to select "Setup", press "OK" to enter into "Setup" menu interface. 2. Pres "Up/Down" button to select the options, press "OK" to enter into the Sub-Menu. 3. Press "Exit" to return to the setup interface, press again to return to "Main Menu" interface. 7.1 Display Settings...

  • Page 37: Language Setting

    7.2 Language Setting 7.3 Photo Setting 7.4 Movie Setting...

  • Page 38: Music Setting

    7.5 Music Setting 7.6 TXT Setting 7.7 Default Setting In this menu you can restore the default settings of the HDplayer. Restoration of default settings results in the removal of all user setting.

  • Page 39: About Media Box

    7.8 About Media Box In this menu you can obtain detailed information about your software version. 7.9 Up-grade Setting 1 Press "Up/down" Key to choose the Up-grade setting. Press "OK" to confirm and enter into the Sub-Menu of Up-grade setting. 2.

  • Page 40: Network Setup

    7.10 Network setup...

  • Page 41: Troubleshooting

    Troubleshooting WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer for help.

  • Page 42: Specification

    Specification Operating System Avos Processor AMlogic AML8626H Flash 128MB 1Gbit Network Wired 100Mbs Ethernet Connections CVBS Output Cinch (yellow) HDMI Output HDMI 1.3 Audio Output (L+R) 2x Cinch (white/red) 1 optical Port USB 2x USB 2.0 type A Port Ethernet 1x RJ-45 Card reader 1x SD/MMC HDD Support Support built-in 10GB to 1TB 2.5-inch HDD;...

  • Page 43: Glossary

    Glossary HD (High Definition) - Used to describe video content that is in one of the high definition video formats. These are broadly 720i/p and 1080i/p. The 720 or 1080 refers to the number of horizontal lines used to define the picture and the “i” and “p” refer to “interlaced” or “progressive scan”.
  • Page 44 Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does. PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.
  • Page 45 SATA (Serial ATA) - Interface standard for connecting internal hard drives. Replaced ATA / EIDE and is capable of very fast data transfer. Is available as SATA 1 operating at a maximum 1.5Gb/s and SATA 2 operating at a maximum 3Gb/s. In real world use mechanical hard disks will never reach the data transfer ceiling of SATA 1.
  • Page 46 v.1.01...
