1. What's in the box?
H I G H
D E F I N I T I O N
M U L T I M E D I A
Ariva
User manual
EN
HDplayer 110
Instrukcja obsługi
PL
HD Networked
Media Tank
User manual
Remote Control

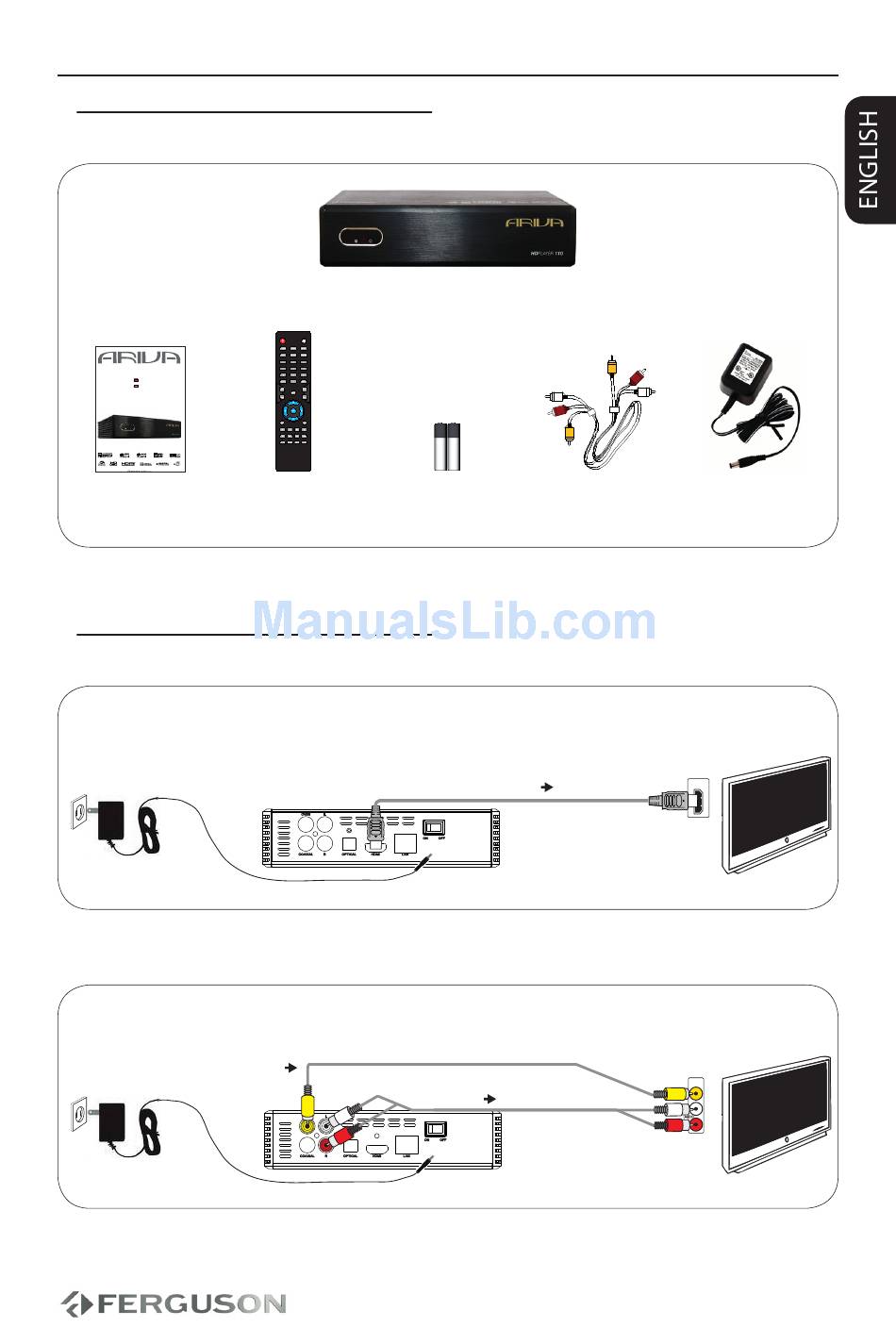

2. Connect - basic audio/video connections
HDMI (Best quality, cable not supplied)
Power
230V
50Hz
CVBS / Composite (Normal quality) and stereo audio
Power
230V
50Hz
Ariva HDplayer 110
2x AAA baterries
Unit
video
Qucik Start Guide
A/V cable
video, audio
or
audio
AC power
adaptor
HDMI IN
TV
VIDEO IN
(CVBS)
