Gliderol IGDU GEN II Upgrade Kit Install & User's Manual

IGDU GEN II Upgrade Kit

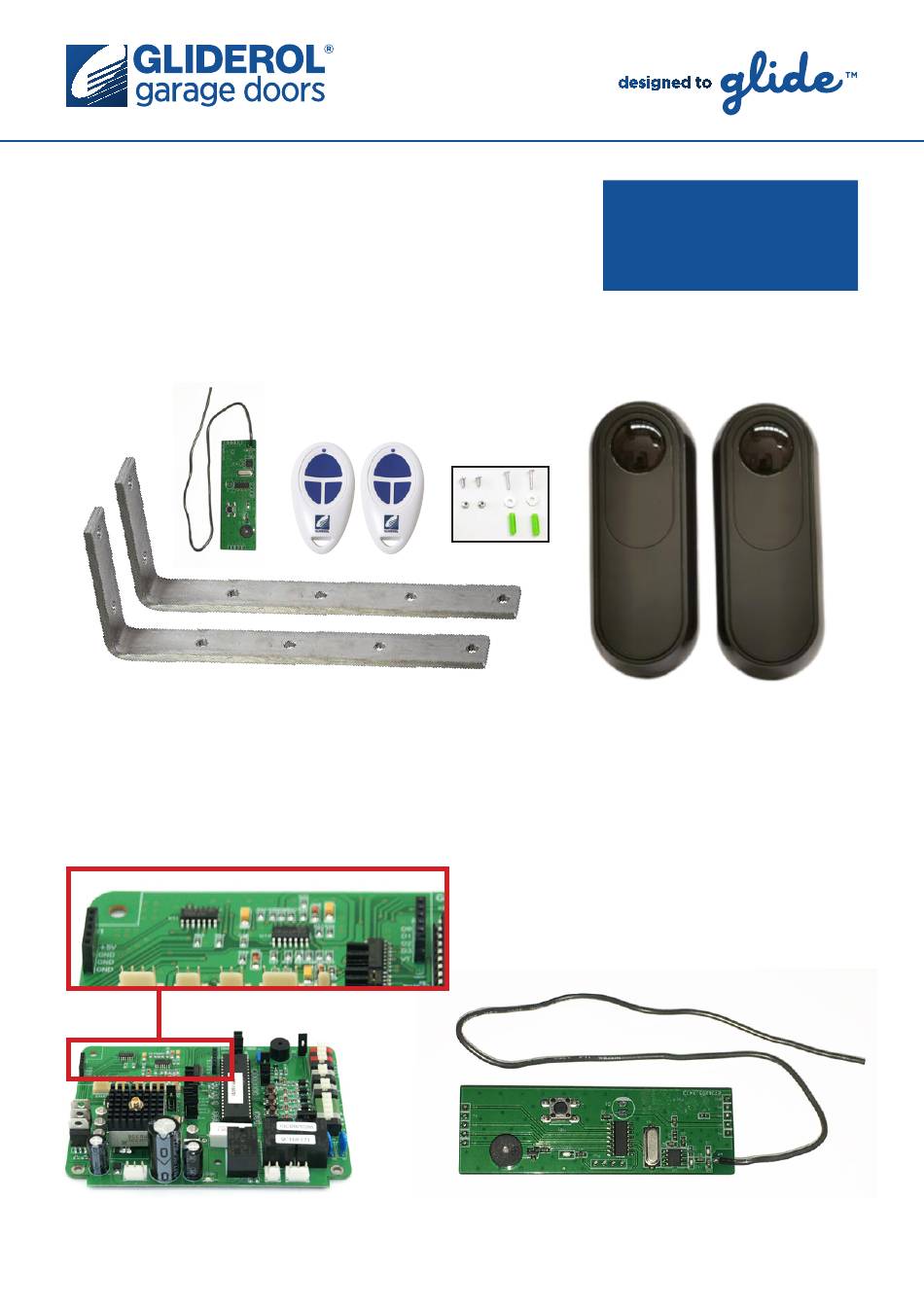

IGDU GEN II Upgrade Kit includes:

2 x Gliderol TM390+ remotes

Install & User Guide

1 x Plug-in Receiver Board

2 x PE Beams

2 X 'L' Shaped Mounting Brackets

1 x Fixings Bag

The IGDU GEN II Upgrade Kit enables safe and convenient handset operation of your Gliderol IGDU

opener. The following details will assist in the installation of your new IDGU GEN II Upgrade Kit.

Step 1: Install Plug-in Receiver Board

Connect receiver board to main circuit board in the top left hand corner using the pins on the back of the

receiver, ensuring they are aligned and all pins are connected (please note pins are off-center to ensure

the board is not connected the wrong way around).

www.gliderol.com.au

Table of Contents

Do you have a question about the IGDU GEN II Upgrade Kit and is the answer not in the manual?

Page 1 2 X ‘L’ Shaped Mounting Brackets 1 x Fixings Bag The IGDU GEN II Upgrade Kit enables safe and convenient handset operation of your Gliderol IGDU opener. The following details will assist in the installation of your new IDGU GEN II Upgrade Kit.
Page 2 IGDU GEN II Upgrade Kit Install & User Guide cont... Step 2: Install Safety Beam Kit Safety Beam sensors work to detect obstructions within the opening (stopping the travel of the door if an obstruction is identified) and are recommended as a supplementary safety system. Safety Beams also enable your openers auto-close feature, ensuring your door is never left open.
Page 3 IGDU GEN II Upgrade Kit Install & User Guide cont... Step 3: Install PE Beams Once all wiring has been completed, the accompanying PE Beams must be installed. Attach lower PE Beam case to L Bracket using 4M -10mm bolts and nuts supplied. With holes to be drilled 4mm diameter with 100mm apart in lower PE Beam case.
Page 4 IGDU GEN II Upgrade Kit Install & User Guide cont... Step 4: Program Remote The following instructions demonstrate how to program a new or additional Gliderol handset to suit your existing IGDU control box. Part 1: Part 2: LEARN BUTTON...
Page 5 IGDU GEN II Upgrade Kit Install & User Guide cont... Your IGDU GEN II Upgrade Kit has now been installed. For further assistance or to discuss your IGDU GEN II Upgrade Kit please contact your local Gliderol office on 1300 799 177. www.gliderol.com.au...
