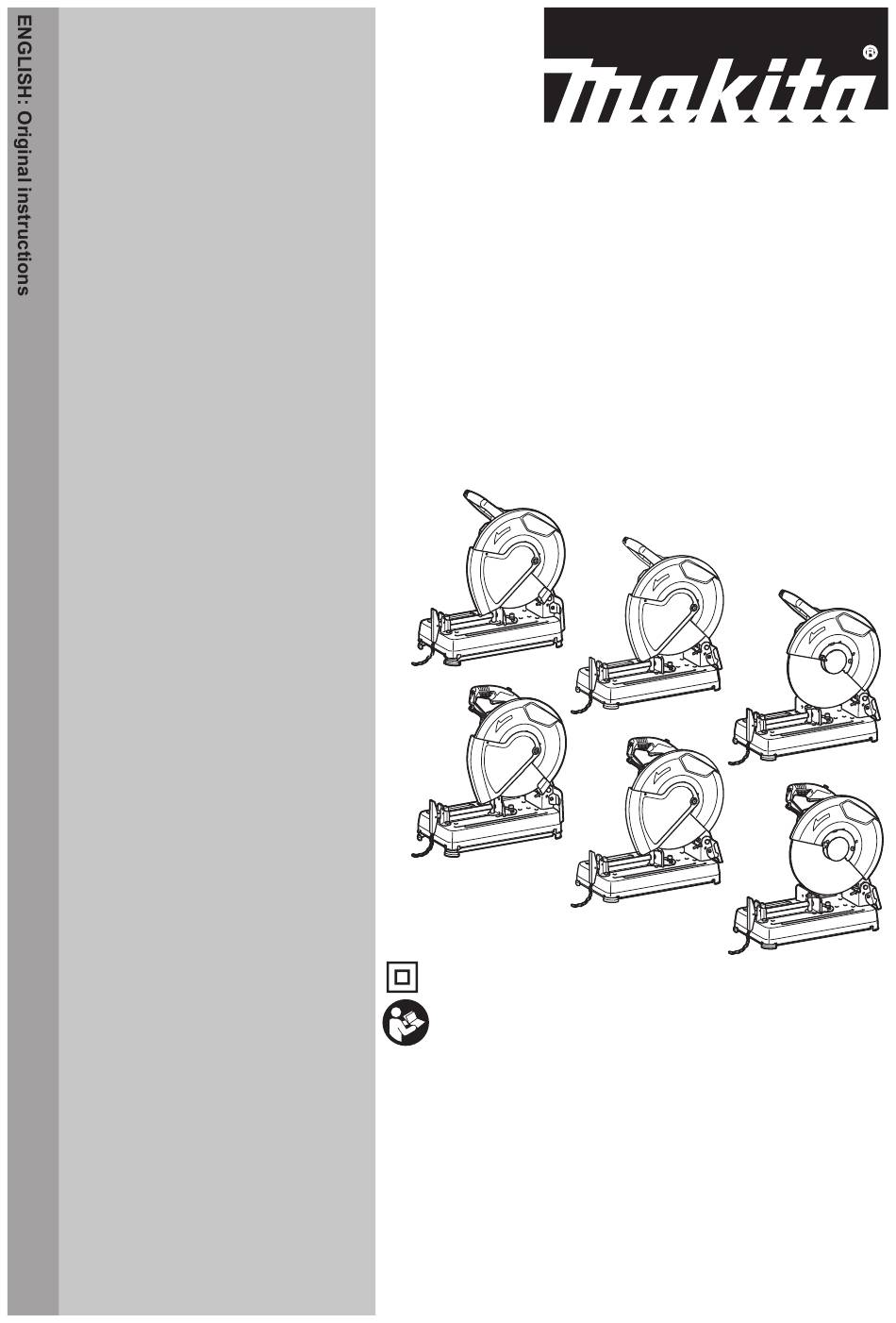

- Page 1 INSTRUCTION MANUAL Portable Cut-off M2402 M2403 DOUBLE INSULATION Read before use.
-
Page 2: Specifications
The typical A-weighted noise level determined accord- ronmentally compatible recycling facility. ing to EN62841-3-10: Model M2402 Intended use Sound pressure level (L ) : 98 dB(A) Sound power level (L... -
Page 3: Ec Declaration Of Conformity
Keep children and bystanders away while The vibration total value (tri-axial vector sum) deter- operating a power tool. Distractions can cause mined according to EN62841-3-10: you to lose control. Model M2402 Electrical safety Vibration emission (a ) : 4.5 m/s Uncertainty (K) : 1.5 m/s Power tool plugs must match the outlet. -
Page 4: Cut-Off Machine Safety Warnings
Personal safety Power tool use and care Stay alert, watch what you are doing and use Do not force the power tool. Use the correct common sense when operating a power tool. power tool for your application. The correct Do not use a power tool while you are tired or power tool will do the job better and safer at the under the influence of drugs, alcohol or med- rate for which it was designed. - Page 5 Wheels must be used only for recommended Kickback and related warnings applications. For example: do not grind with Kickback is a sudden reaction to a pinched or snagged the side of a cut-off wheel. Abrasive cut-off rotating wheel. Pinching or snagging causes rapid stalling wheels are intended for peripheral grinding, side of the rotating wheel which in turn causes the uncontrolled forces applied to these wheels may cause them to...
-
Page 6: Functional Description
When not in use or carrying, always hook the lock chain 12. Always switch off and wait for the cut-off to the hook. wheel to come to a complete stop before M2402 removing, securing workpiece, working vise, changing work position, angle or the cut-off wheel itself. -
Page 7: Cutting Angle Adjustment
70 - 240 mm (2-3/4″ - 9-7/16″) position hinders personal injury. Return tool to a Makita service center the movement of stopper plate, which results in a for proper repairs BEFORE further usage. - Page 8 Loosen the two hex socket bolts using a hex wrench. Stopper plate Turn the guide plate to the desired angle and secure it with the hex socket bolts. Be careful not to move the set Country specific angle while securing the hex socket bolts. The stopper plate prevents the cut-off wheel from contacting the workbench or floor.
- Page 9 When not in use, store the hex wrench as shown in the figure to keep it from being lost. CAUTION: Always lower the safety guard after replacing the wheel. M2402 CAUTION: Wear gloves when handling wheels. Raise the safety guard. Turn the hex socket bolt coun- terclockwise using a hex wrench while holding down the shaft lock.
-
Page 10: Securing Workpiece
M2403 Securing workpiece CAUTION: Always place the thread holder on the shaft threads when securing the workpiece. Failure to do so may result in insufficient securing of the workpiece. This could cause the workpiece to be ejected or cause a dangerous breakage of the cut-off wheel. -
Page 11: Carrying Tool
Carrying tool Fold down the tool head and lock it. Hold the handle when carrying. M2402 When the cut-off wheel has worn down, raise the cutting position by putting a spacer block which is slightly nar- rower than the workpiece as shown in the figure. This will help you to utilize the cut-off wheel economically. -
Page 12: Replacing Carbon Brushes
Use a screwdriver to remove the brush holder repairs, any other maintenance or adjustment should caps. be performed by Makita Authorized or Factory Service Take out the worn carbon brushes, insert the new Centers, always using Makita replacement parts. ones and secure the brush holder caps.
