BEFORE OPERATION
POWER ON–OFF BUTTON
Used to turn projector on or
off. (P19)
MENU BUTTON
Used to open or close ON-
SCREEN MENU operation.
(P17, 18)
SET BUTTON
Used to execute the item
selected, or to expand/
compress the image in
DIGITAL ZOOM +/– mode.
(P30)
INPUT BUTTON
Used to select input source.
(P22, 31)
ZOOM BUTTON
Used to adjust zoom.
(P20)
POINT (VOLUME + / – ) BUTTONS
Used to select an item or adjust value in ON-
SCREEN MENU. They are also used to pan
the image in DIGITAL ZOOM
POINT LEFT/RIGHT buttons are also used as
VOLUME +/– buttons.
16

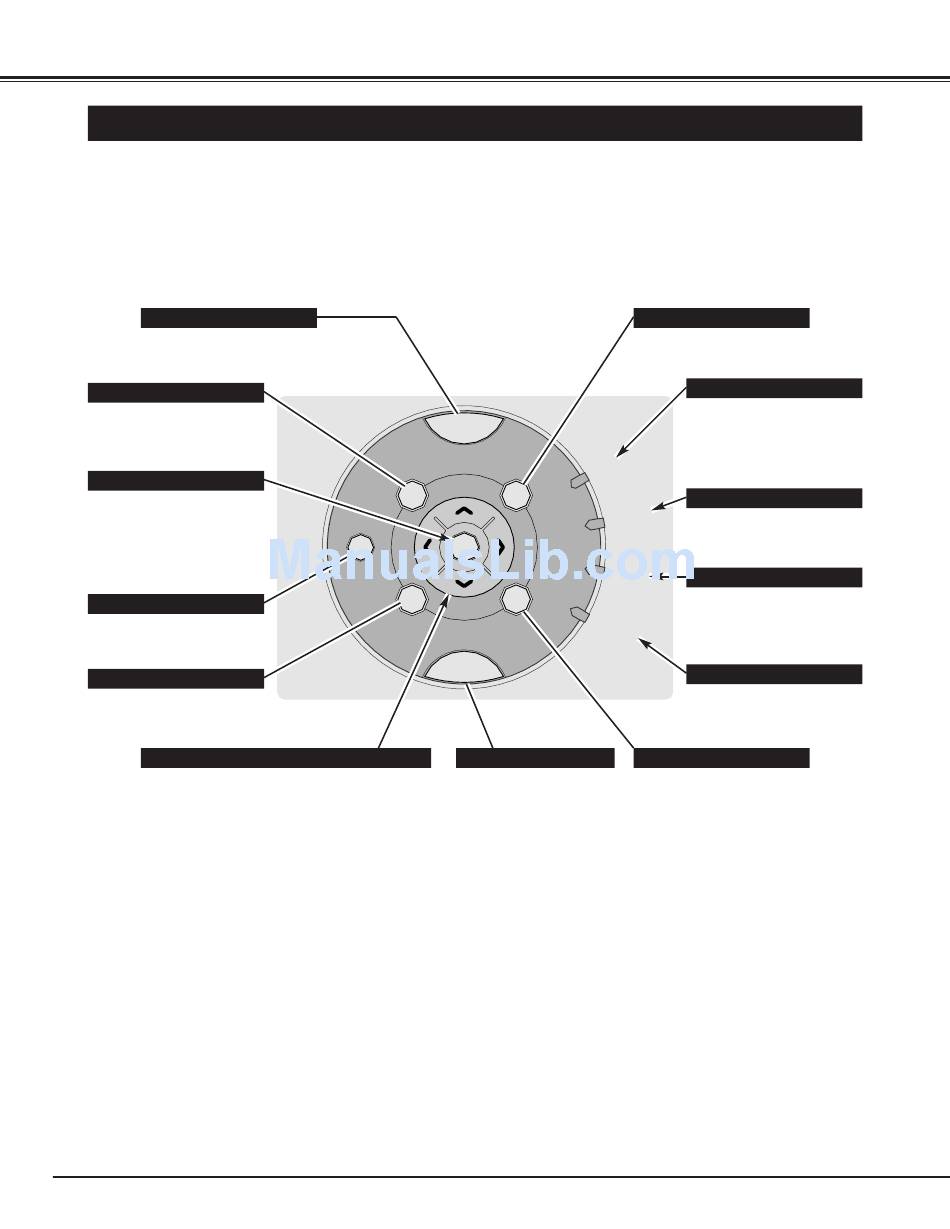

TOP CONTROLS AND INDICATORS

MENU
INPUT
Vol –
ZOOM
mode. (P30)
+/–
POWER
READY
KEY
STONE
LAMP
REPLACE
SET
Vol +
LAMP
FOCUS
WARNING
TEMP.
IMAGE BUTTON
Used to select image
level. (P28, 33)
KEYSTONE BUTTON
Used to correct keystone
distortion. (P20, 36)
READY INDICATOR
Lights green when the
projector is ready to be
turned on, and flashes
green while in Power
Management mode. (P37)
LAMP REPLACE INDICATOR
Turns yellow when the life
of Projection Lamp draws
to an end. (P38)
LAMP INDICATOR
Becomes dim when the
projector is turned on. And
bright when the projector is
in stand-by mode.
WARNING TEMP. INDICATOR
Flashes red while internal
projector temperature is too
high. (P41)
FOCUS BUTTON
Used to adjust focus. (P20)
