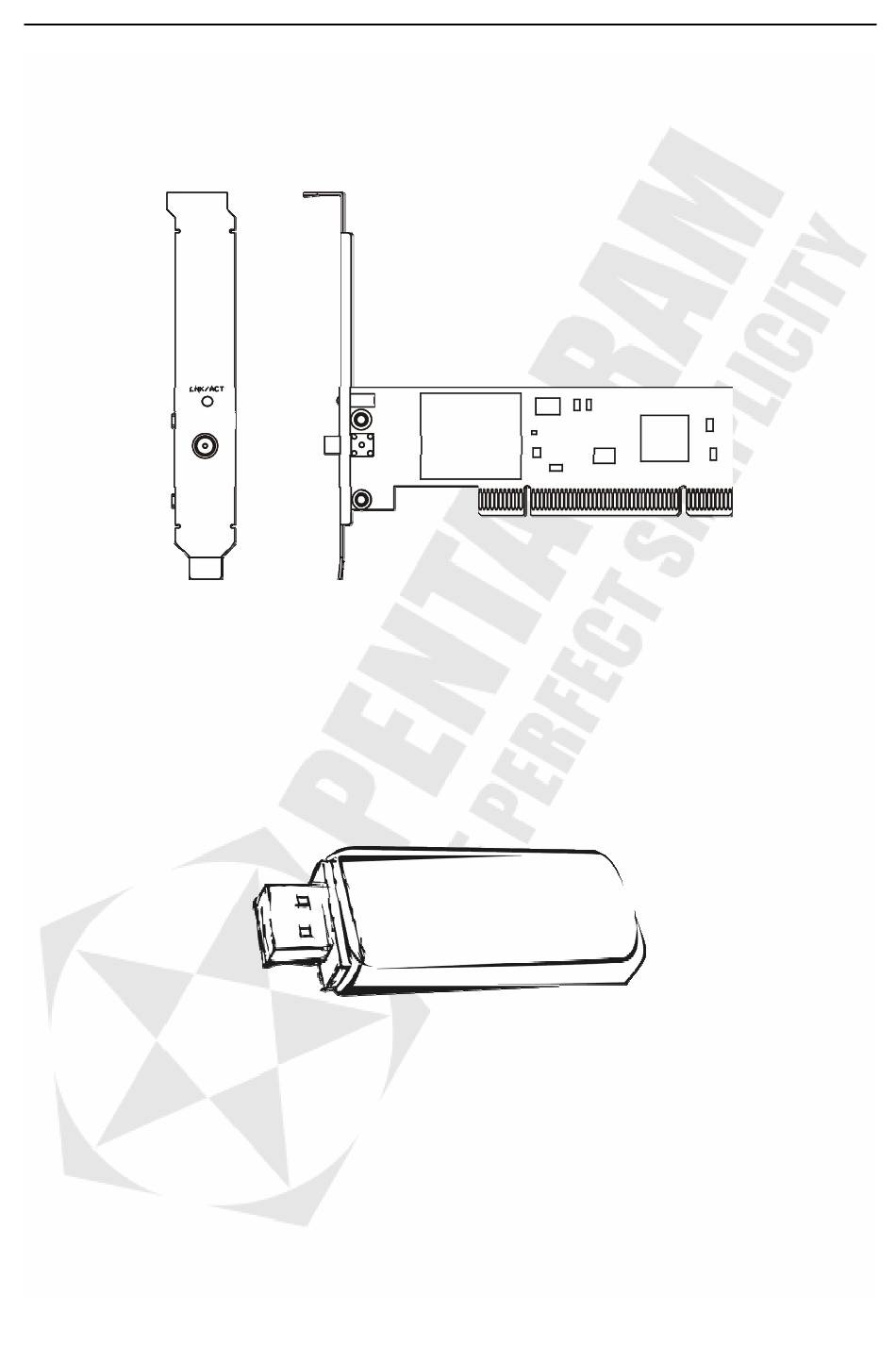

Device diagram
PCI
The following LED indicators show the adapter's status:
•
LNK/ACT on — connection established;
•
LNK/ACT flashing — the device is transmitting or receiving data.
USB
The following LED indicators show the adapter's status:
•
LNK/ACT on — connection established;
•
LNK/ACT flashing — the device is transmitting or receiving data.
horNET P 6121-L3 / P 6122-11
