horNET P 6121-L3 / P 6122-11
Associated AP Name: Shows the name of the access point assigned to the profile.
Associated AP IP Address: Shows the IP address of the access point assigned to the profile.
Associated AP MAC Address: Shows the MAC address of the access point assigned to the
profile.
Power Save Mode: Shows the power saving mode.
Current Signal Strength: Shows the current wireless network signal strength.
Current Noise Level: Shows the current noise level.
Up Time: Shows the adapter's operating time (since last launch).
802.11b Preamble: Shows the 802.11b network preamble.
Current Receive Rate: Shows the current rate at which data is received.
Current Transmit Rate: Shows the current rate at which data is transmitted.
Channel: Shows the Wi-Fi channel used by the current wireless network.
Frequency: Shows the Wi-Fi frequency used by the current wireless network.

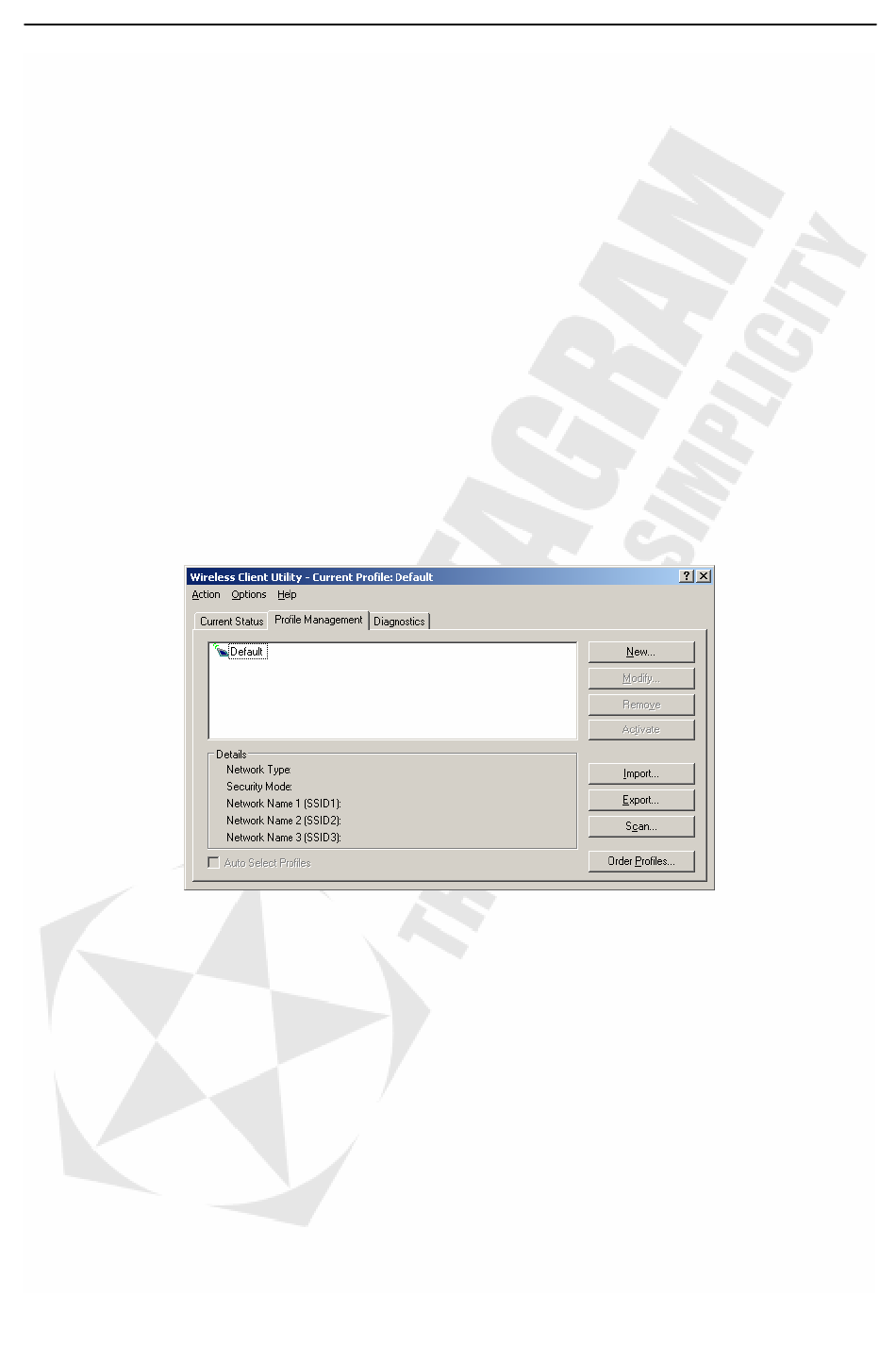

Profile Management tab

Use this tab to manage profiles in which settings for different wireless networks can be saved.
For example, one profile may contain configuration for a wireless network in the workplace,
while another one may contain home network settings. Whenever you move to a different
place, you can select a profile which matches the network that covers your new location from
the list, without having to reset all connection parameters. All configured profiles are listed on
this tab.
Details: Shows details of the selected profile.
New...: Opens the Profile Management window and allows you to configure a new profile.
Modify...: Opens the Profile Management window and allows you to configure an existing
profile selected from the list.
Remove: Removes the selected profile.
Activate: Activates the selected profile.
Import...: Loads profile settings from a file.
Export...: Saves profile settings to a file.
Scan...:Opens the Available Infrastructure and Ad Hoc Networks window.
Order Profiles...: Opens the Auto Profile Selection Management window.
