Pentagram horNET Wi-Fi PCI 11g Installation And Operation Manual page 12

horNET P 6121-L3 / P 6122-11

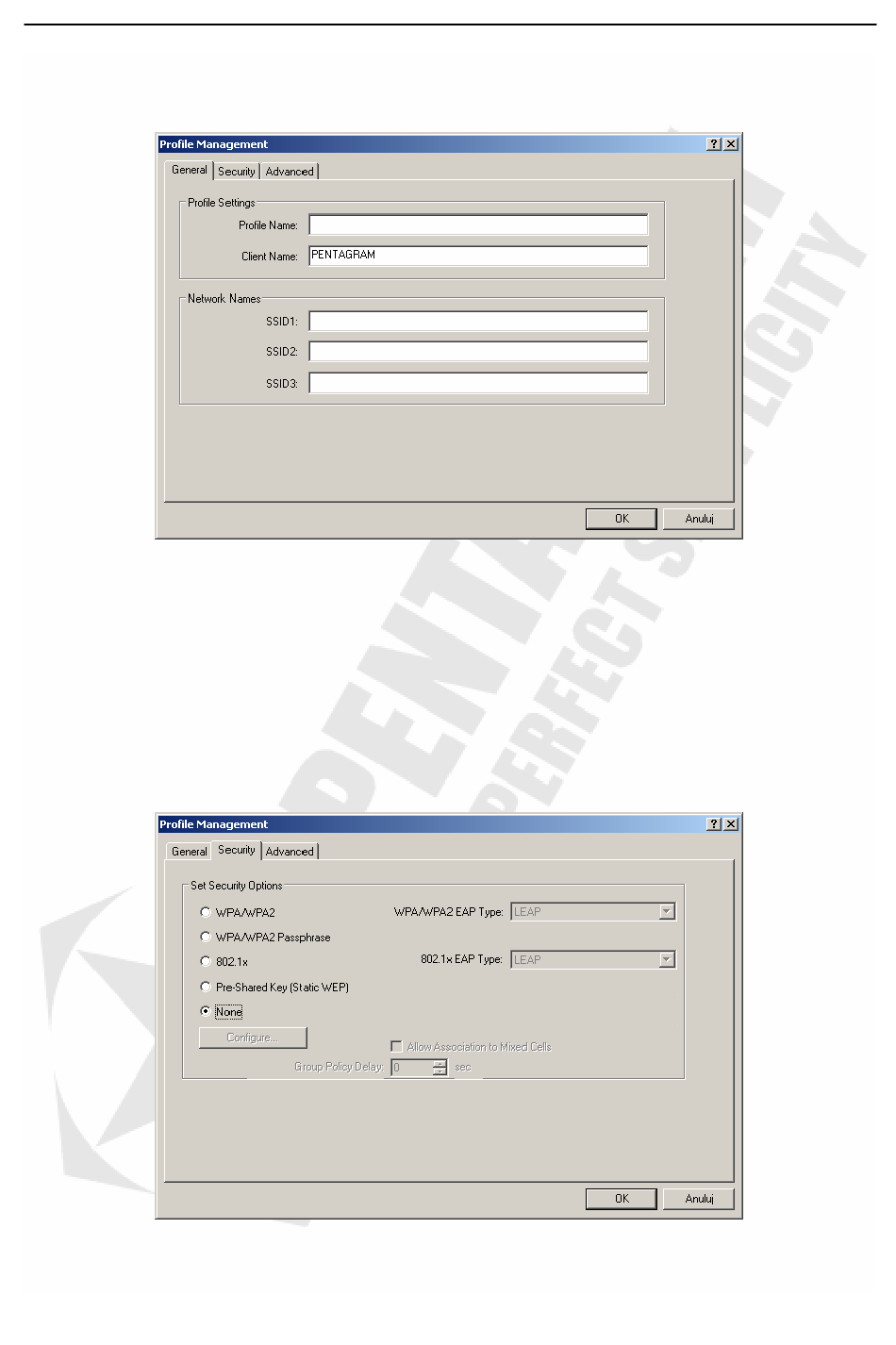

Profile Management window, General tab
This tab contains basic profile settings.
Profile Name: Enter a profile name to be displayed in the profile list.
Client Name: Enter a client name for easy identification on the wireless network.
SSIDx: Enter names for the wireless networks to which the adapter will connect in the
selected profile.
Profile Management window, Security tab
This tab contains security settings used by the wireless network in the profile. Security details
required to connect to the wireless network can be obtained from the network's administrator.
WPA/WPA2: Select this option and then choose the EAP authentication protocol used by the
network from the WPA/WPA2 EAP Type list. Click Configure... to set up the protocol.
