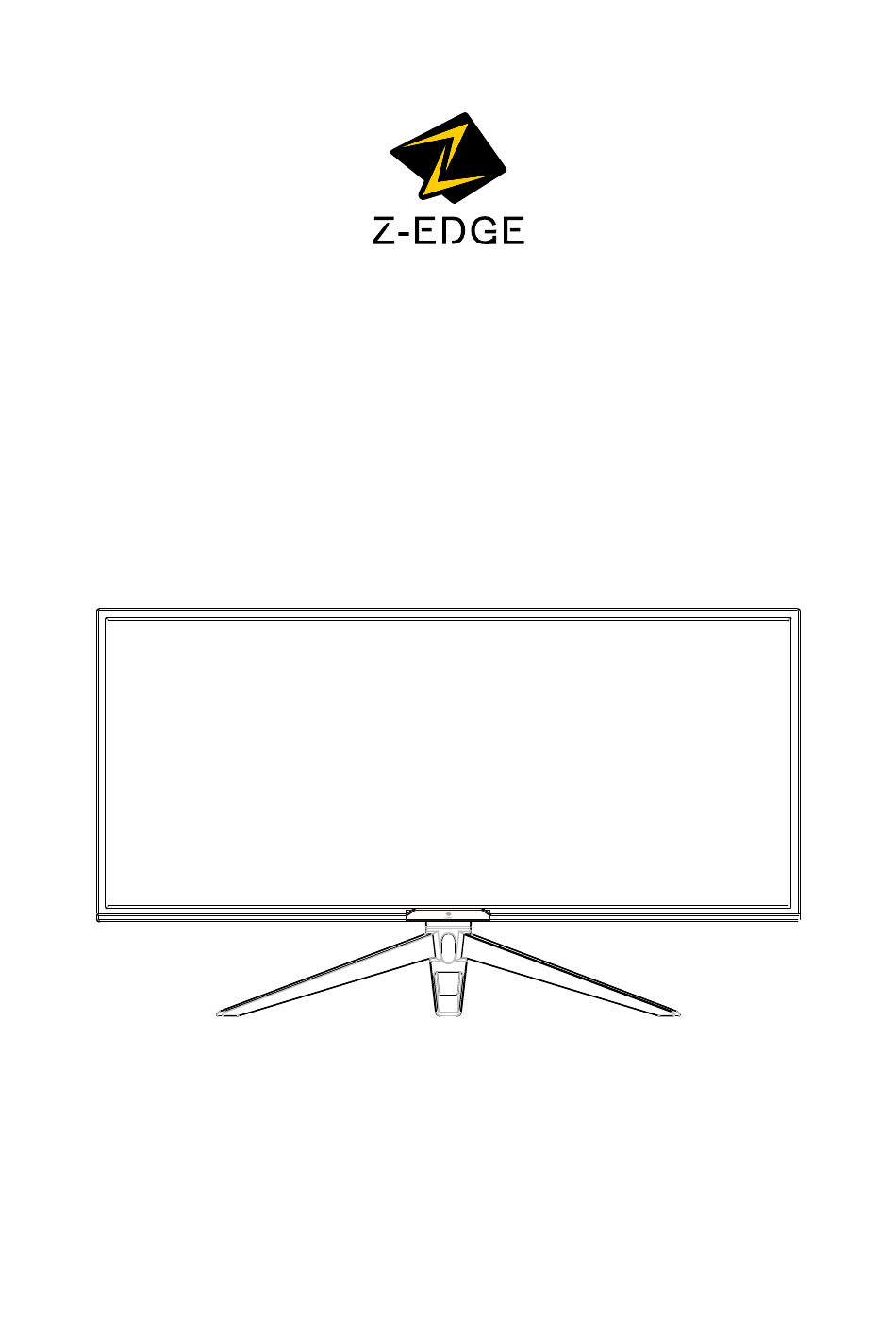

- Page 1 34" LED GAMING MONITOR Model: UG34 Instruction Manual Please read this manual thoroughly before use and keep it handy for future reference...
-
Page 2: Safety Information
SAFETY INFORMATION • Read these instructions - All the safety and operating instructions should be read before this product is operated. • Keep these instructions - The safety and operating instructions should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to. - Page 3 Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. • Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around.
- Page 4 WHAT’S INCLUDED...
-
Page 5: Connections Available On The Monitor
CONNECTIONS AVAILABLE ON THE MONITOR DC 12V HDMI 2 HDMI 1 AUDIO OUT Power (Firmware updates) HDMI 2 (HDMI 1.4,WQHD 60Hz FreeSync) HDMI 1 (HDMI 2.0,WQHD 100Hz FreeSync) (DlsplayPort1.2,WQHD 100Hz FreeSync&G-sync) AUDIO OUT WALL MOUNTING The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied). - Page 6 Shortcut Key Guide ◄ ► Ac vate the Signal Input Selec n menu.Use to navigate and M to select the source. Ac veate the Line of Sight feature. Further press to cycle between the colors or turn off. Ac veate the ECO Mode feature.Further press to cycle through the presets. INITIAL SETUP Connect the monitor to a power outlet.
- Page 7 OSD MENU Imput Source Resolution: 3440x1440@100Hz 3440x1440@100Hz Switch the signal input to DisplayPort,HDMI1,HDMI2. Brightness/Contrast Resolution: 3440x1440@100Hz HDMI1 3440x1440@100Hz Brightness: change the brightness value from 0 to 100. Contrast: Change the contrast ratio from 0 to 100 . DCR : Turn the Dynamic Contrast Ratio by on or off .
- Page 8 Color Setting Resolution: 3440x1440@100Hz Picture Mode Standard Warm Low Blue Light HDMI1 3440x1440@100Hz Gamma: Change he gamma value to 1.8/2.0/2.2/2.4/2.6. Picture M ode: Change the picture mode to Standard/photo/movie/ game. Color T emper ature: change the color temperature to Standard/warm/cool/user. Hue: change Hue value from 0 to 100.
- Page 9 Display Resolution: 3440x1440@100Hz Wide Screen HDMI1 3440x1440@144Hz Aspect Ratio: Adjust the Aspect ration by Auto/ 4:3 /1:1. Audio Resolution: 3440x1440@100Hz Mute HDMI1 3440x1440@100Hz Mute: Turn on or off to mute the Audio source. Volume: Change the Audio source value from 0 to 100 .
- Page 10 Multi-window Resolution: 3440x1440@100Hz Multl-Window HDMI2(1.4) Mediun TopRight HDMI1 3440x1440@100Hz Multi-window: adjust the mutil-window to off / PIP/ PBP. Resolution: 3440x1440@100Hz OSD H-Position OSD V-Position OSD Time Out Normal HDMI1 3440x1440@100Hz Language: Adjust the language to Chinese, English, Korean, Russian, Spanish, Japanese,French. H-position: change the horizontal position from 0 to 100.
- Page 11 Other Resolution: 3440x1440@100Hz FreeSync (Adaptive Sync) MPRT Firmware Update Reset HDMI1 3440x1440@100Hz FreeSync(Adaptive Sync): Turn on or off FreeSync (Adaptive Sync). HDR: Turn of or off HDR function. MPRT: Turn on or off MPRT function. Firmware update: Update Firmware by USB port. Reset : Return to factory mode.
-
Page 12: Specification
