Regin ED-RU-DOS Quick Start Manual

• Set temperature, extended running, etc.
• Stylish design suitable for all environments
• Range of up to 300 m
ED-RU-DOS is connected to a Corrigo with two ports.
Port 2 is used for the room unit and can be used together
with expansion units. The room unit enables starting
and stopping the air handling unit as well as changing
fan speeds and adjusting the setpoint displacement. The
room unit can also be used together with EXOcompact
and EXOflex. If so, the unit must first be configured by a
competent system integrator using Project Builder.
For more information on Corrigo, EXOflex and
EXOcompact, see the respective product sheet for each
controller.

Simple wiring

ED-RU-DOS is connected to the same supply voltage as
the controller (G and G0). Communication takes place
via EXOline and is connected to port 2, A and B.
ED-RU-DOS is capable of communicating with a
controller over a range of up to 300 meters.

Sensor

The room unit has a built-in temperature sensor. An
external PT1000-sensor can also be connected to the
Corrigo if the built-in sensor is not to be used, enabling
the temperature to be shown in the room unit display.
ED-RU-DOS
ED-RU-DOS

External room unit

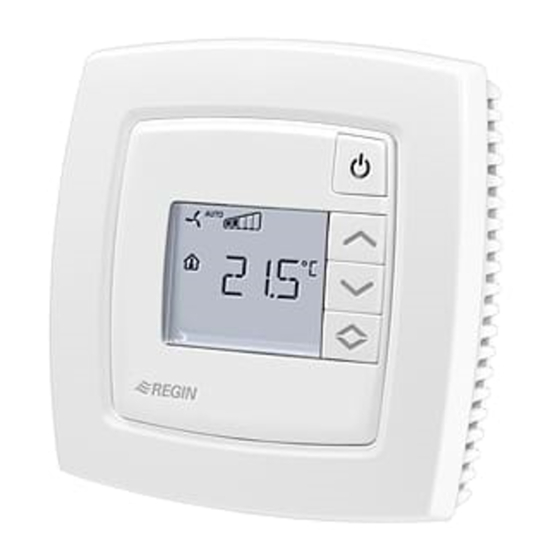

ED-RU-DOS is an external room unit intended for
control of an air handling unit via a Corrigo controller
running a ventilation application. It can also be used
together with EXOcompact and EXOflex.
• Can be used as a display
• Built-in room sensor

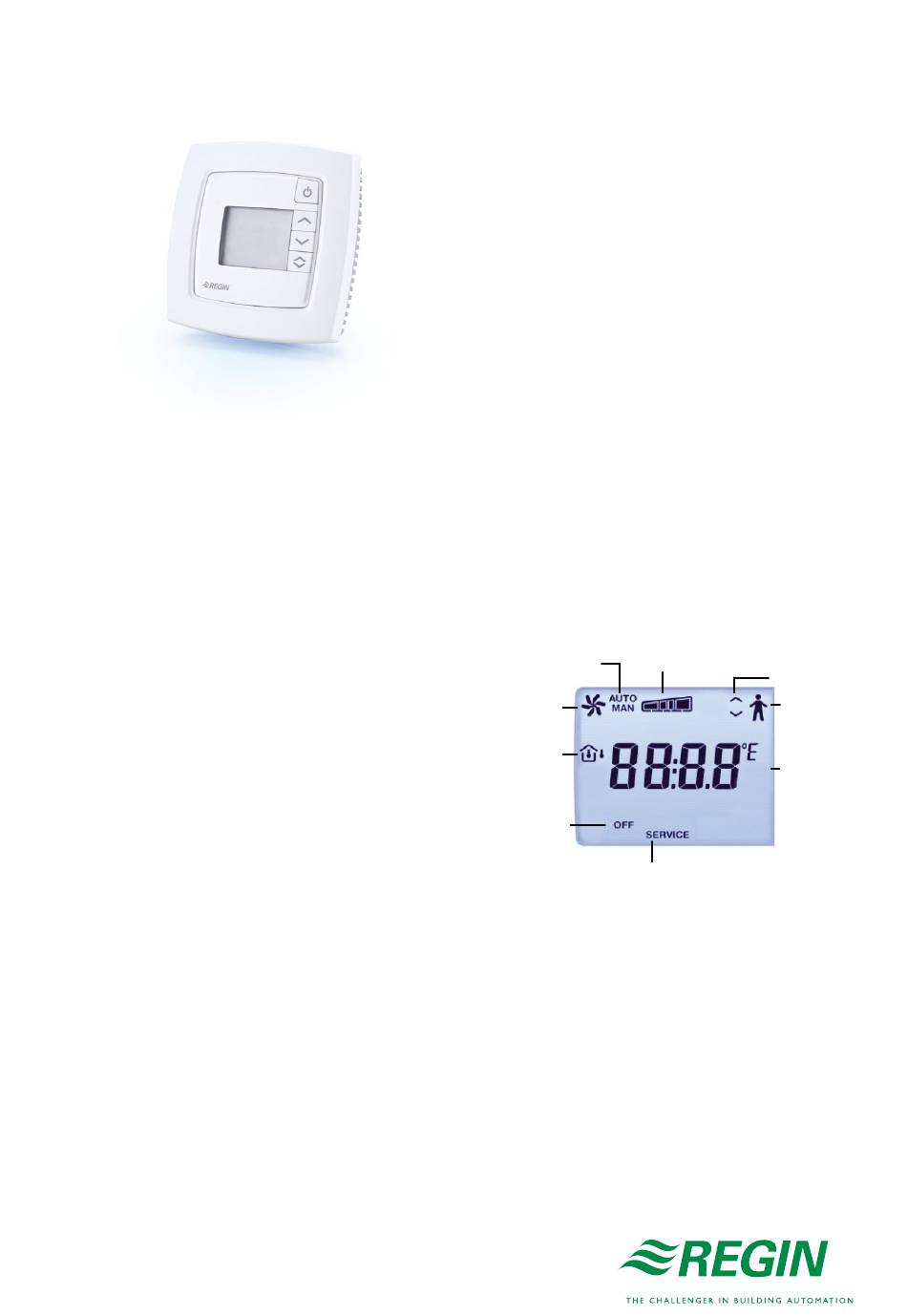

Display information and handling

ED-RU-DOS has a simple, intuitive design consisting of
a display and four buttons. The display has the following
indications:
Auto/Man
indication for
the unit
Operation
indication
Indoor /
outdoor
temp.
Off mode
(only the
temperature
is shown)
Current fan speed
(Reduced/Normal)
Changeable value
SERVICE: Is lit when alarm is
coming from the Corrigo
revision
08 2013
Occupancy
indication
Current room
temperature or
setpoint in °C to
one decimal point
