Item # 1005 443 240
Model # FRS60786-STBC

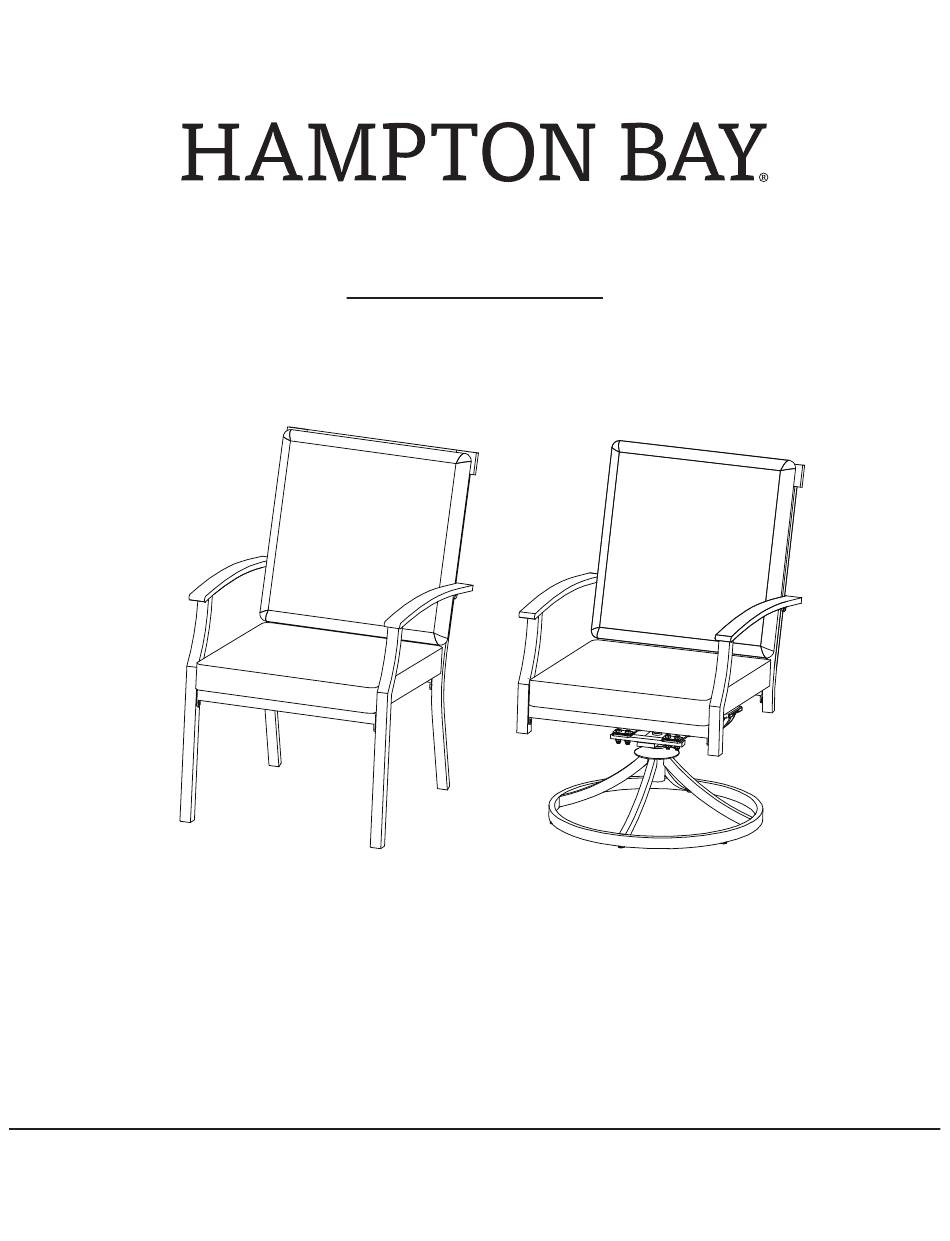

USE AND CARE GUIDE
GENEVA 6PK DINING CHAIR - BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY GENEVA 6PK FRS60786-STBC

Summary of Contents for HAMPTON BAY GENEVA 6PK FRS60786-STBC

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Pre-Assembly.

  • Page 3: Warranty

    Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.

  • Page 4: Hardware Included

    Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 60+1 M8x20 Combination Bolt Hex Wrench Wrench STATIONARY CHAIR PACKAGE CONTENTS Part Description Quantity Stationary Chair Back Stationary Chair Left Arm Stationary Chair Right Arm Stationary Chair Seat Back Cushion Seat Cushion...

  • Page 5: Swivel Chair Package Contents

    Pre-assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Back Cushion Seat Cushion Swivel Chair Back Swivel Chair Left Arm Swivel Chair Right Arm Swivel Chair Seat Support Bar Swivel Base Plastic Cover HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Stationary Chair Assembly

    Stationary Chair Assembly Attaching The Stationary Chair Seat To The Stationary Chair Back NOTE: Loosely tighten all bolts using the hex wrench (CC). Place the stationary chair back (A) and stationary chair seat (D) on a soft surface. Attach the stationary chair seat (D) to the stationary chair back (A) using M6x15 combination bolts (AA).
  • Page 7 Stationary Chair Assembly (continued) Attaching The Stationary Chair Seat To The Stationary Chair Left Arm NOTE: Loosely tighten all bolts using the hex wrench (CC). Place the stationary chair left arm (B) upside down on a soft surface. Attach the stationary chair seat (D) to the stationary chair left arm (B) using M6x15 combination bolts (AA) Attaching The Stationary Chair Left And Right Arm To The Stationary Chair Back NOTE: Loosely tighten all bolts using the hex wrench (CC).
  • Page 8 Stationary Chair Assembly (continued) Tightening All The Bolts Once all the bolts are in place, fully tighten all the bolts. Turn the stationary chair right side up. Place the seat cushion (F) and back cushion (E) on the stationary chair. Ensure that all connections are secure before use.

  • Page 9: Swivel Chair Assembly

    Swivel Chair Assembly Attaching The Swivel Chair Seat To The Swivel Chair Back NOTE: Loosely tighten all bolts using the hex wrench (CC). Place the swivel chair back (G) and swivel chair seat (J) on a soft surface. Attach the swivel chair seat (J) to the swivel chair back (G) using M6x15 combination bolts (AA).
  • Page 10 Swivel Chair Assembly (continued) Attaching The Swivel Chair Seat To The Swivel Chair Left Arm NOTE: Loosely tighten all bolts using the hex wrench (CC). Place the swivel chair seat (J) and the swivel chair left arm(H) on a soft surface. Attach the swivel chair seat (J) to the swivel chair left arm(H) using M6x15 combination bolts (AA).
  • Page 11 Swivel Chair Assembly (continued) Attaching The Support Bar To The Swivel Chair Seat Attach the support bar (K) to the swivel chair seat (J) using M8x20 combination bolts (BB). Fully tighten the bolts using the wrench (DD). Inserting The Support Bar Into The Swivel Base Place the plastic cover (M) to the swivel base (L).

  • Page 12: Care And Cleaning

    Swivel Assembly (continued) Checking The Chair Place the seat cushion (F) and back cushion (E) to finish the assembly of the swivel chair. Ensure that all connections are secure before use. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 13 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
