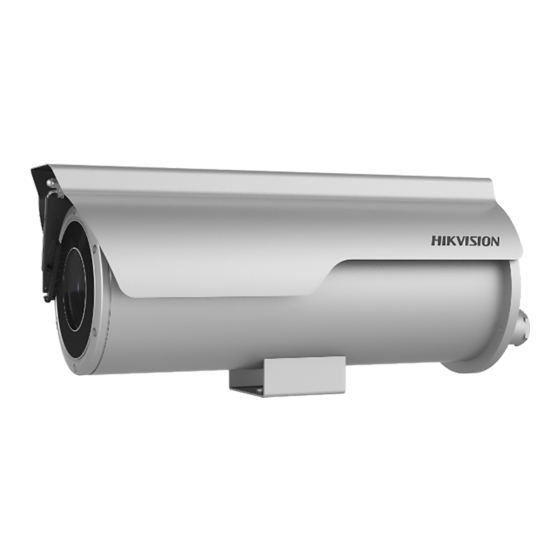

Anti-corrosion network bullet camera
Hide thumbs Also See for DS-2XC6685G0:

Advertisement

Quick Links

Anti-Corrosion Network Bullet Camera
Quick Start Guide
Installation Video
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-2XC6685G0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKVISION DS-2XC6685G0

  • Page 1 Anti-Corrosion Network Bullet Camera Quick Start Guide Installation Video...
  • Page 2 Anti-Corrosion Network Bullet Camera·Quick Start Guide Quick Start Guide © 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only.
  • Page 3 BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR...
  • Page 4 Anti-Corrosion Network Bullet Camera·Quick Start Guide NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 Anti-Corrosion Network Bullet Camera·Quick Start Guide FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 Anti-Corrosion Network Bullet Camera·Quick Start Guide supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
  • Page 7 Anti-Corrosion Network Bullet Camera·Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information. ● The power source should meet limited power source or PS2 requirements according to IEC 60950-1 or IEC 62368-1 standard.
  • Page 8 Anti-Corrosion Network Bullet Camera·Quick Start Guide applied to the location and about any precautions that shall be taken. ● Make sure the power supply voltage is correct before using the camera. ● Do not drop the camera or subject it to physical shock. ●...
  • Page 9 Anti-Corrosion Network Bullet Camera·Quick Start Guide ● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all the users.
  • Page 10 Anti-Corrosion Network Bullet Camera·Quick Start Guide ● If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)
  • Page 11: Table Of Contents

    Anti-Corrosion Network Bullet Camera·Quick Start Guide Table of Contents 1 Appearance Description ............... 11 2 Installation ..................14 Wall Mounting .............. 14 Junction Box Installation and Wiring ......18 3 Activate and Access Network Camera .......... 23...
  • Page 12: Appearance Description

    Anti-Corrosion Network Bullet Camera·Quick Start Guide 1 Appearance Description The anti-corrosion network camera has two appearance types, the camera with wiper and the camera without wiper. Type I with Wiper Type I Overview...
  • Page 13 Anti-Corrosion Network Bullet Camera·Quick Start Guide Type II without Wiper Type II Overview Description of Type I and Type II Description Description Front cover Sun shield Audio input and Main body output interfaces...
  • Page 14 Anti-Corrosion Network Bullet Camera·Quick Start Guide Description Description Alarm input and output Power supply (AC 24V) interface RJ45 network interface Wiper RS-485 interface...
  • Page 15: Installation

    Anti-Corrosion Network Bullet Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 24 VAC, please make sure your power supply matches with your camera.
  • Page 16 Anti-Corrosion Network Bullet Camera·Quick Start Guide Steps: Install the wall mounting bracket to wall with expansion bolts. Expansion Bolts Install Wall Mounting Bracket Unscrew and remove the pedestal from the bracket.
  • Page 17 Anti-Corrosion Network Bullet Camera·Quick Start Guide Screws Pedestal Screws Remove the Pedestal Align the screw holes on the camera mounting base with those on the pedestal, and fix the camera to the pedestal with screws. Fix the Camera to the Pedestal Loosen the fixing screw, and adjust the panning position for the camera.
  • Page 18 Anti-Corrosion Network Bullet Camera·Quick Start Guide Adjust Panning Position Adjust the tilting position when fixing the camera to the wall mounting bracket. Tilt: -45° to 45° Adjust Tilting Position...
  • Page 19: Junction Box Installation And Wiring

    Anti-Corrosion Network Bullet Camera·Quick Start Guide Note: Use at least 3 screws on each side of pedestal to fix the camera. Fix the Camera Junction Box Installation and Wiring Before You Start: Junction box is not included in package. You need to prepare one in advance.
  • Page 20 Anti-Corrosion Network Bullet Camera·Quick Start Guide Steps: 1. Paste the drill template of the junction box to desired mounting place. Drill Template of Junction Box 2. Drill 4 screw holes according to Hole 1 on the template. 3. Insert supplied expansion bolts. Unscrew the nuts and gaskets. Wall Expansion Bolts Insert Expansion Bolts...
  • Page 21 Anti-Corrosion Network Bullet Camera·Quick Start Guide 4. Fix the junction box to wall with nuts and gaskets. 5. Unscrew the junction box cover. Unscrew the Cover 6. Route the camera cables through the cable hole that is marked with a “Camera” sign on the junction box. Tighten the nut.
  • Page 22 Anti-Corrosion Network Bullet Camera·Quick Start Guide Route Camera Cables 7. Route cables of power source, network source, etc. through the other two cable holes of the junction box. Connect the cables.
  • Page 23 Anti-Corrosion Network Bullet Camera·Quick Start Guide Fix Wall Mounting Bracket to Wall 8. Tighten the nuts and screw the junction box cover back. Screw the Cover Back...
  • Page 24: Activate And Access Network Camera

    Anti-Corrosion Network Bullet Camera·Quick Start Guide 3 Activate and Access Network Camera Scan the QR code to get Activate and Visit Network Camera. Note that mobile data charges may apply if Wi-Fi is unavailable.

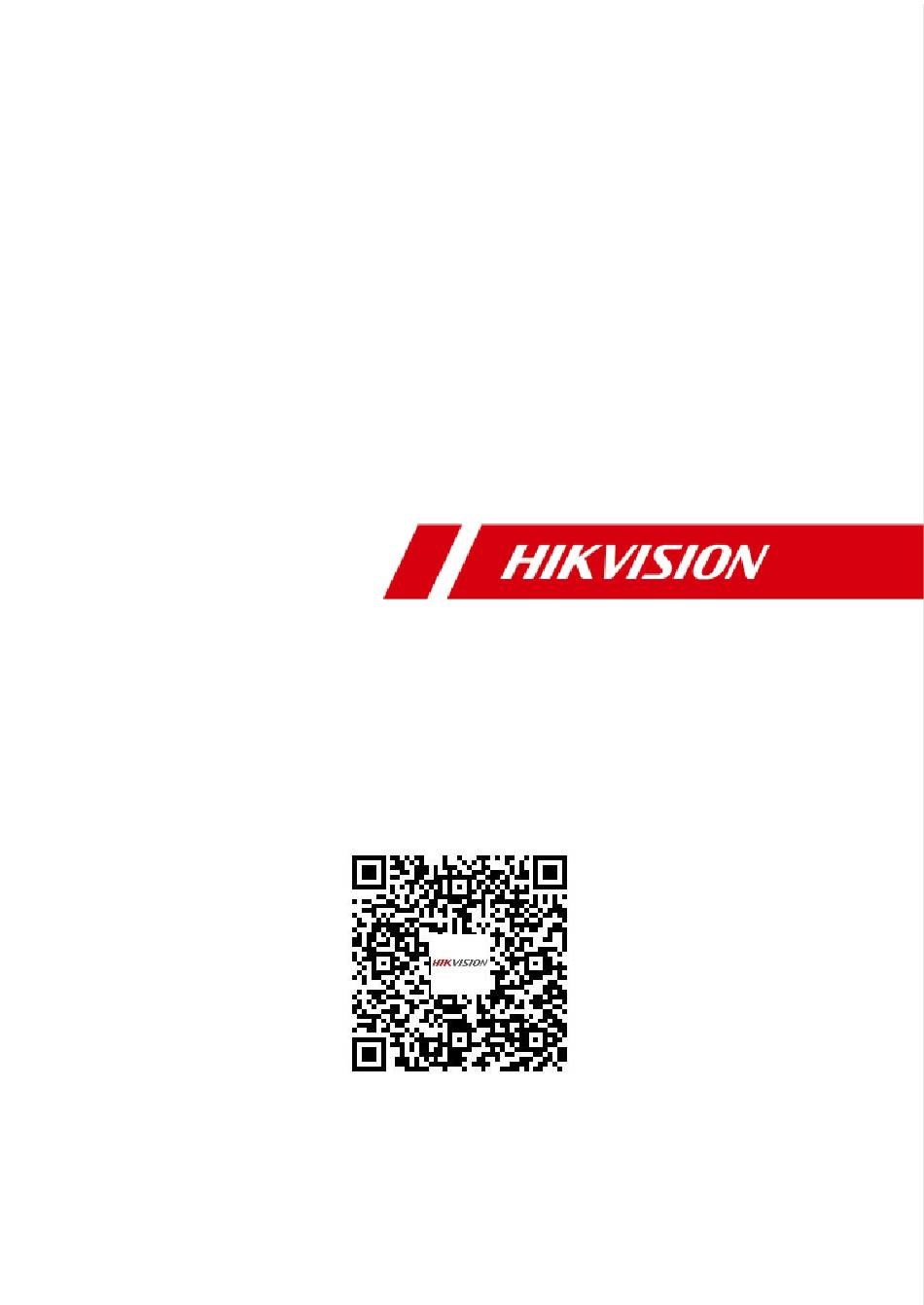

  • Page 25 UD04342B-A...
