Summary of Contents for Ryobi RLT3640P

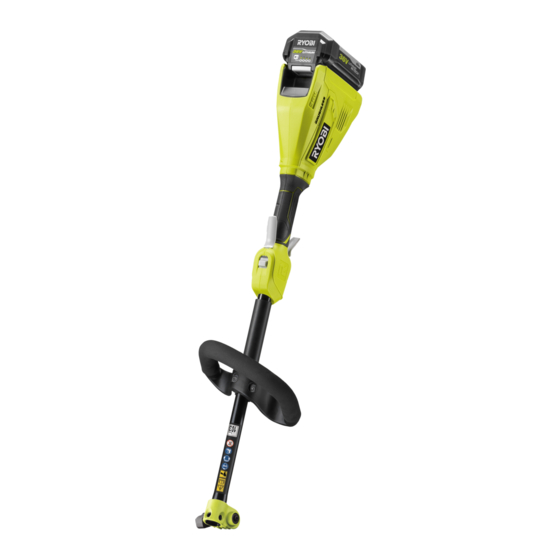

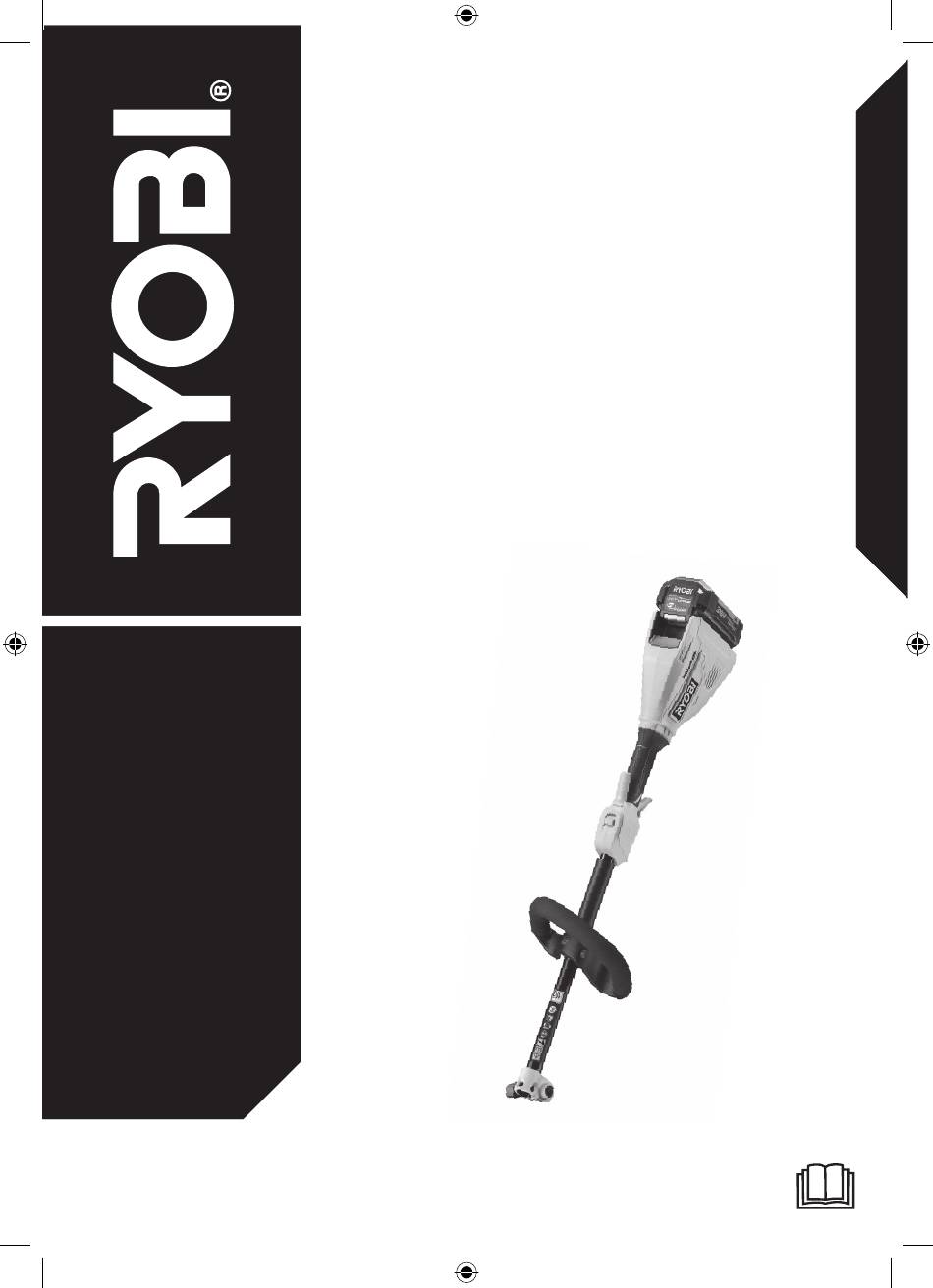

- Page 1 ORIGINAL INSTRUCTIONS ORIGINAL INSTRUCTIONS Cordless Brushless Powerhead Kit RLT3640P...
-
Page 2: Intended Use
carrying, pulling or unplugging the power tool. IMPORTANT! Keep cord away from heat, oil, sharp edges or It is essential that you read the instructions in this manual moving parts. Damaged or entangled cords increase before assembling, operating, and maintaining the the risk of electric shock. -
Page 3: Additional Safety Warnings
and do not allow persons unfamiliar with the power jewellery of any kind. tool or these instructions to operate the power tool. ■ Secure long hair so that it is above shoulder level to Power tools are dangerous in the hands of untrained prevent entanglement in moving parts. -
Page 4: Transporting Lithium Batteries
Check with your local authority or retailer BATTERY PROTECTION FEATURES for recycling advice. RYOBI 36 V lithium-ion batteries are designed with features that protect the lithium-ion cells and maximise battery life. Regulatory compliance mark The following conditions may cause the product to stop during use: ■... -
Page 5: Symbols In This Manual
SYMBOLS IN THIS MANUAL Parts or accessories sold separately Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Note Warning... - Page 6 WHAT’S IN THE BOX...
-
Page 7: Know Your Product
Know your product KNOW YOUR PRODUCT 1. Rear handle 6. Charger 2. Variable speed trigger 7. Charger power supply and cable 3. Lower handle 8. Boom clamp 4. Battery pack 9. Front handle 5. Battery latch button 10. Speed adjustment... -
Page 8: Getting Started
GETTING STARTED Always wear safety goggles or safety glasses with side shields Insert the lower shaft into the upper shaft until the latches snap when operating the product. Wear non-slip, heavy-duty protective into place. Tighten the boom clamp to secure. gloves. - Page 9 GETTING STARTED Loosen the wing nut from the front handle. Remove the tab and Install the front handle to the upper shaft. Tighten the wing nut to screw from the front handle. secure the front handle.
- Page 10 OVERVIEW Operating the product p.10 Cleaning the product Storing the product p.11 p.12...
-
Page 11: Operation
OPERATION OPERATING THE PRODUCT WARNING: For safety reasons, the product must be adequately controlled by a two-handed operation. Hold the product with the right hand on the rear handle and the left hand on the front handle. 1. Insert the battery pack until the battery latch button clicks into place. -
Page 12: Cleaning The Product
MAINTENANCE CLEANING THE PRODUCT 1. Press the battery latch button, and remove the battery pack. 2. Clean the product with a soft, dry cloth. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. -
Page 13: Storing The Product
STORAGE STORING THE PRODUCT NOTE: Clean the product before storing. 1. Press the battery latch button, and remove the battery pack. 2. Loosen the boom clamp. Push the lock button. Remove the lower shaft from the upper shaft. 3. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children. -
Page 14: Product Specifications
For assembling with battery-driven edger attachment (below values measured with AED05 edger attachment) Cordless Brushless Powerhead Kit Noise emission values determined according to IEC 60335-2-91 Model RLT3640P A-weighted sound pressure level = 84.2 dB(A) Uncertainty K = 2.5 dB Rated voltage... - Page 15 WARNING! The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.
- Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trademark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...
