General Specifications - Creative Sound BlasterAxx AXX 200 User Manual

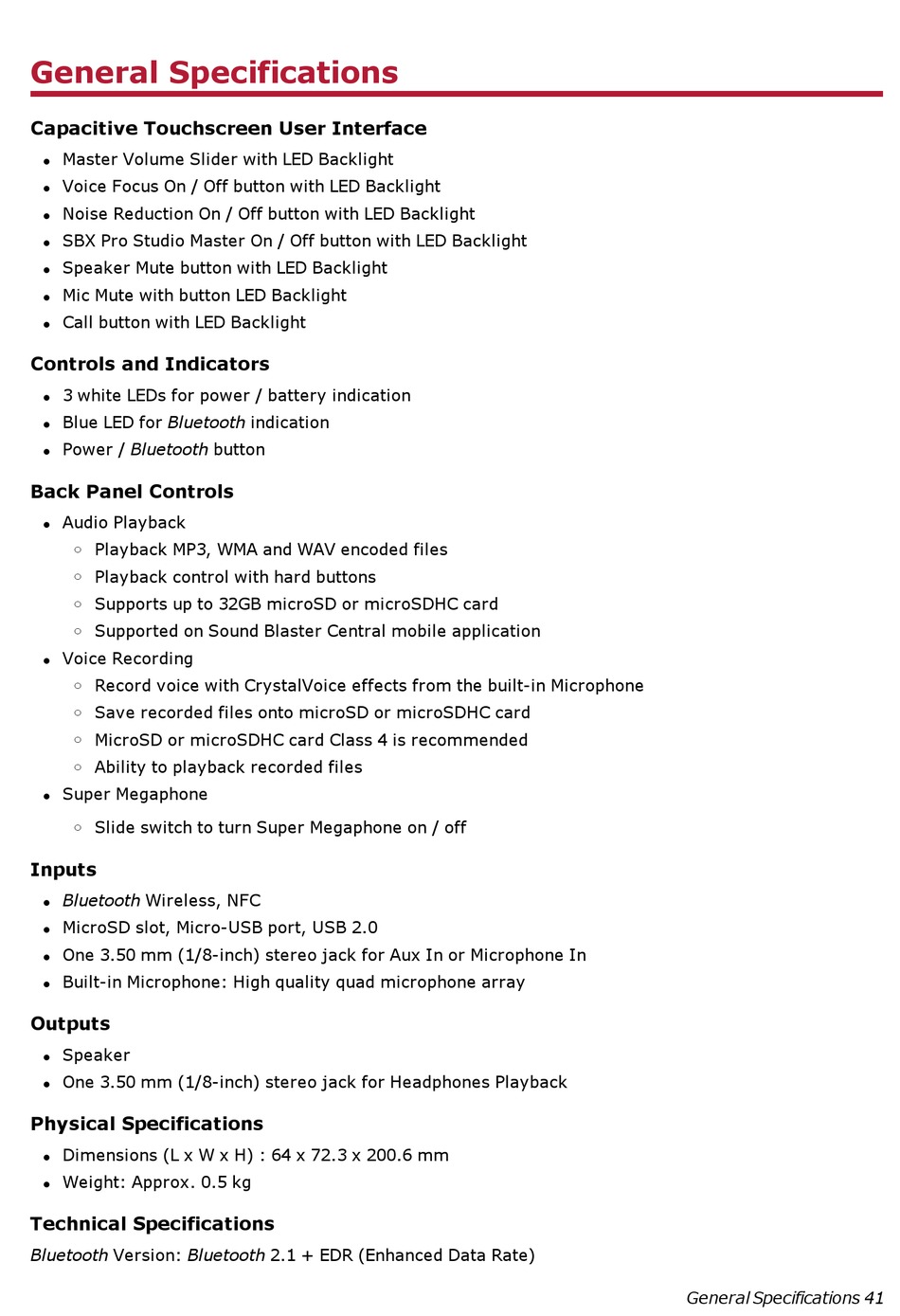

General Specifications

Capacitive Touchscreen User Interface
Master Volume Slider with LED Backlight
l
Voice Focus On / Off button with LED Backlight
l
Noise Reduction On / Off button with LED Backlight
l
SBX Pro Studio Master On / Off button with LED Backlight
l
Speaker Mute button with LED Backlight
l
Mic Mute with button LED Backlight
l
Call button with LED Backlight
l
Controls and Indicators
3 white LEDs for power / battery indication
l
Blue LED for Bluetooth indication
l
Power / Bluetooth button
l
Back Panel Controls
Audio Playback
l
Playback MP3, WMA and WAV encoded files
o
Playback control with hard buttons
o
Supports up to 32GB microSD or microSDHC card
o
Supported on Sound Blaster Central mobile application
o
Voice Recording
l
Record voice with CrystalVoice effects from the built-in Microphone
o
Save recorded files onto microSD or microSDHC card
o
MicroSD or microSDHC card Class 4 is recommended
o
Ability to playback recorded files
o
Super Megaphone
l
Slide switch to turn Super Megaphone on / off
o
Inputs
Bluetooth Wireless, NFC
l
MicroSD slot, Micro-USB port, USB 2.0
l
One 3.50 mm (1/8-inch) stereo jack for Aux In or Microphone In
l
Built-in Microphone: High quality quad microphone array
l
Outputs
Speaker
l
One 3.50 mm (1/8-inch) stereo jack for Headphones Playback
l
Physical Specifications
Dimensions (L x W x H) : 64 x 72.3 x 200.6 mm
l
Weight: Approx. 0.5 kg
l
Technical Specifications
Bluetooth Version: Bluetooth 2.1 + EDR (Enhanced Data Rate)
General Specifications 41
