Little Tikes 633904M Assembly Instructions Manual

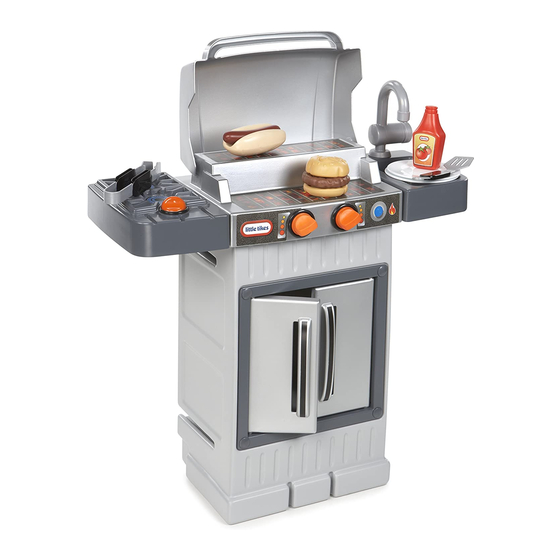

Cook 'n grow bbq grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
18+
months
Cook 'N Grow
BBQ Grill
™
ASSEMBLY INSTRUCTIONS
#633904M
Adult assembly required. Approx. assembly time: 25min.
Look for video of assembly at
littletikes.com/videoinstructions
XIM633904 - 9/20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 633904M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Little Tikes 633904M

Summary of Contents for Little Tikes 633904M

  • Page 1 Cook 'N Grow BBQ Grill ™ ASSEMBLY INSTRUCTIONS #633904M Adult assembly required. Approx. assembly time: 25min. Look for video of assembly at littletikes.com/videoinstructions XIM633904 - 9/20...
  • Page 2 © Thank you for choosing the Little Tikes Cook 'N Grow BBQ Grill . ™ We strive to provide a durable, easy-to-assemble toy thats made to last, giving your child years of imaginative, engaging fun! Really important information you should know! •...
  • Page 3 BEFORE you begin assembly, make sure you have all the parts listed below. Some packages of hardware may have extras pieces. Questions? We’re here to help. Little Tikes customer service team at 1-800-321-0183. Tools required (not included) Shown actual size Fastener (4) (4) 1"...
  • Page 4 Ready...let’s start with decals! Decals must be applied to a clean, dry surface. Wipe clean with a dry rag before application. Remove air from under decals by applying pressure to the decals starting from the center, and work towards edges. NOTE: If decals bubble, prick with a pin to remove the air. Locate your decal sheet.
  • Page 5 Turn it on PUSH in (2) knobs (part J) into the countertop (part D) snap into place. One more knob PUSH in grill knob (part K) onto the burner (part F) snap into place.
  • Page 6 Grill and SINK it! Grill and SINK it! Snap the grill (part F) into the countertop. Snap the grill (part F) into the countertop. Snap the sink (part G) into the countertop. Snap the sink (part G) into the countertop. Ready for the faucet Insert faucet (part H) into the countertop and secure by attaching the faucet fastener (part I) under the countertop...
  • Page 7 Frame it! Push each fastener into the door frame (part B) Then firmly push each fastener into the holes on the grill base (part A). Fastener...
  • Page 8 2 ways to assemble! Cook ‘N Grow™ BBQ Grill GROWS WITH YOUR CHILD! STAGE Choose from 2 heights STAGE...
  • Page 9 STAGE #1 Attach the grill lid (part E) onto the counter top. Then slide the counter top into the grill base (part A). Finally, pop the 2 doors (part C) onto the grill base. Snap in one side of the grill lid first, then the other side Attach doors in 2 steps.
  • Page 10 STAGE #2 When converting from STAGE 1 to STAGE 2. Remove the countertop from the grill base (part A). Remove the doors and turn the grill base into the tall position. Re-attach the countertop then pop the doors back into place.

  • Page 11: Instructions De Montage

    Barbecue Cook ‘N Grow INSTRUCTIONS DE MONTAGE mois Montage par un adulte requis. Durée de montage approximative : 25 min. Merci d’avoir choisi l’ensemble Barbecue Cook 'N Grow de Little Tikes © . Nous sommes déterminés à fournir un jouet durable et facile à monter, procurant à...

  • Page 12: Service À La Clientèle

    à compter de sa date d’achat (le reçu d’achat daté est exigé comme preuve d’achat). Au titre de travail (partie D) pour qu’ils s’enclenchent en place. la présente garantie, la seule responsabilité de The Little Tikes Company et le seul recours se limitent Étape 3 : Un autre bouton au remplacement de la pièce défectueuse ou au remplacement du produit.

  • Page 13: Instrucciones De Montaje

    ROJO Llame a nuestro equipo de servicio al cliente de para una referencia sencilla. Little Tikes al 1-800-321-0183. • Las ilustraciones son solo a modo de referencia. Los Herramientas necesarias: Destornillador Phillips, estilos pueden ser distintos del contenido real.

  • Page 14: Servicio Al Cliente

    Limpie con Impreso en E.U.A. © The Little Tikes Company, una compañía de MGA Entertainment. LITTLE TIKES® es una marca registrada de un trapo seco antes de la aplicación. Para MINIMUM SIZE allowed is .2” high Little Tikes en EE.UU.

  • Page 16: Consumer Service

    LIMITED WARRANTY The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required for proof of purchase).
