Anleitung_RT_RO_55_SPK1:_
Original operating instructions
t

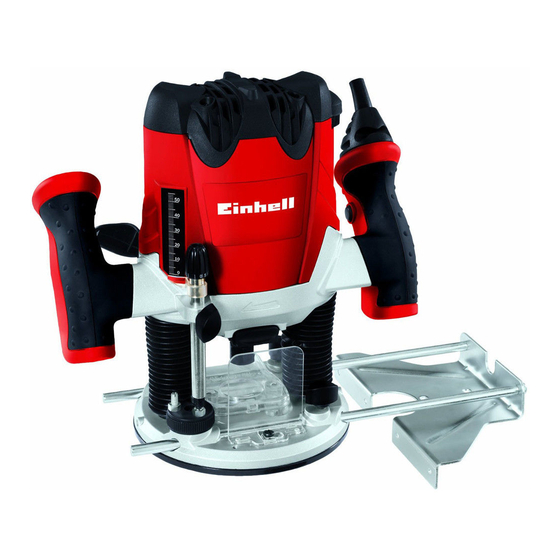

Electric Router
Art.-Nr.: 43.504.92
23.04.2009
13:25 Uhr
Seite 1
I.-Nr.: 11010
55
RT-RO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-RO 55 and is the answer not in the manual?

Questions and answers

Related Manuals for EINHELL RT-RO 55

Summary of Contents for EINHELL RT-RO 55

  • Page 1 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 1 Original operating instructions Electric Router RT-RO Art.-Nr.: 43.504.92 I.-Nr.: 11010...
  • Page 2 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 2...
  • Page 3 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 3...
  • Page 4 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 4...
  • Page 5 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 5 —...
  • Page 6 Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 13 “Caution - Read the operating instructions to reduce the risk of in ury” Wear ear-muffs. The impact of noise can cause damage to hearing. Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Wear safety goggles.

  • Page 7: Safety Information

    Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 14 3. Proper use Important! When using equipment, a few safety precautions The router is ideal for machining wood and plastic must be observed to avoid injuries and damage. and also for cutting out knots, cutting grooves, Please read the complete operating manual with due removing recesses, copying curves and logos, etc.

  • Page 8: Before Starting The Equipment

    Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 15 5.3 Parallel stop assembly (Fig. 4/Item 21) Important! Push the guide shafts (a) of the parallel stop (21) The vibration value changes according to the area of into the holes (b) on the routing shoe (2). application of the electric tool and may exceed the Set the parallel stop (21) to the required specified value in exceptional circumstances.

  • Page 9: Operation

    Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 16 Press the spindle lock (12) and allow the spindle 6.2 Speed control (Fig. 18 – Item 11) to engage by turning it at the same time. The best speed depends on the material and the Undo the clamp nut (10) using the open-ended diameter of the cutter.

  • Page 10: Replacing The Power Cable

    Anleitung_RT_RO_55_SPK1:_ 23.04.2009 13:25 Uhr Seite 17 Turning the fine adjuster (20) through one division operation in this setting as well. corresponds to a change of cutting depth of 0.1 mm, Now set the lowest end stop (15) and finish the one whole turn corresponds to 1 mm.

  • Page 11: Cleaning, Maintenance And Ordering Of Spare Parts

    Identification number of the machine Replacement part number of the part required For our latest prices and information please go to www.einhell.com.au 9. Disposal and recycling The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

  • Page 12: Guarantee Certificate

    The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the product. Claims made under the Einhell Express Guarantee should be submitted before the end of this guarantee period and within two weeks of the defect being noticed.
