2.3 ASSEMBLY

We always recommend wearing protective masks, gloves, goggles and any other PPE during all
installation steps and when handling chemical products.

WALL MOUNTING

Proceed as follows to secure the pump to the wall:
▪
Fix the bracket to the wall using the wall plugs and screws supplied.
▪
Place the pump on the bracket.
▪
Ensure the fixing is stable.
It is also recommended to install the pump in a dry environment, away from heat sources and
exhaust vapours.

2.3.1 ASSEMBLY OF THE ACCESSORIES

Insert the delivery tube into the system through the injection valve (see Figures 2/a, 2/b) supplied in the installation
kit.
In order to assemble the injection valve follow the instructions in Fig. 2/b.
ADSP7000722

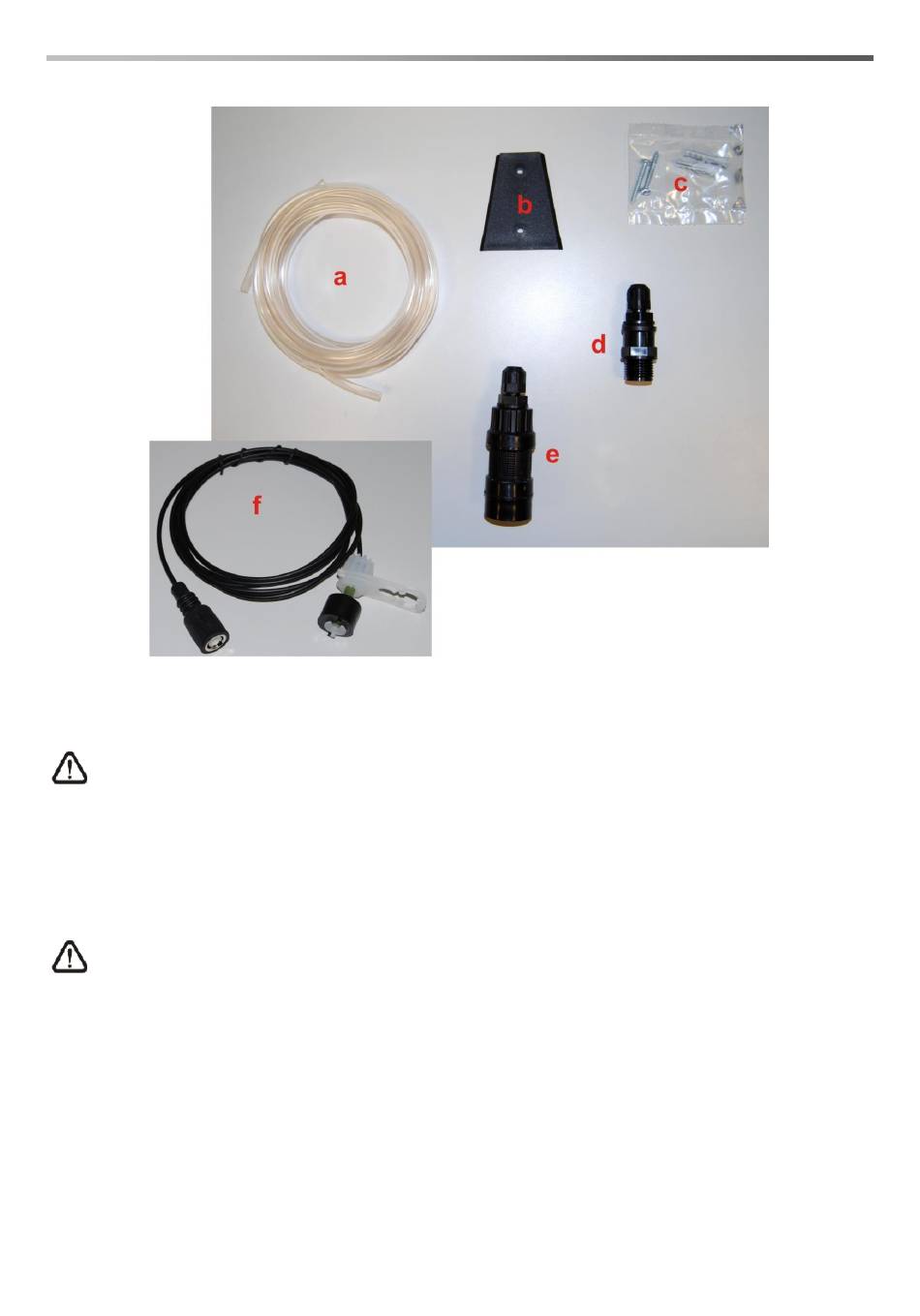

Fig. 1- Installation kit
