Simpool pH model
Programmable digital peristaltic pump

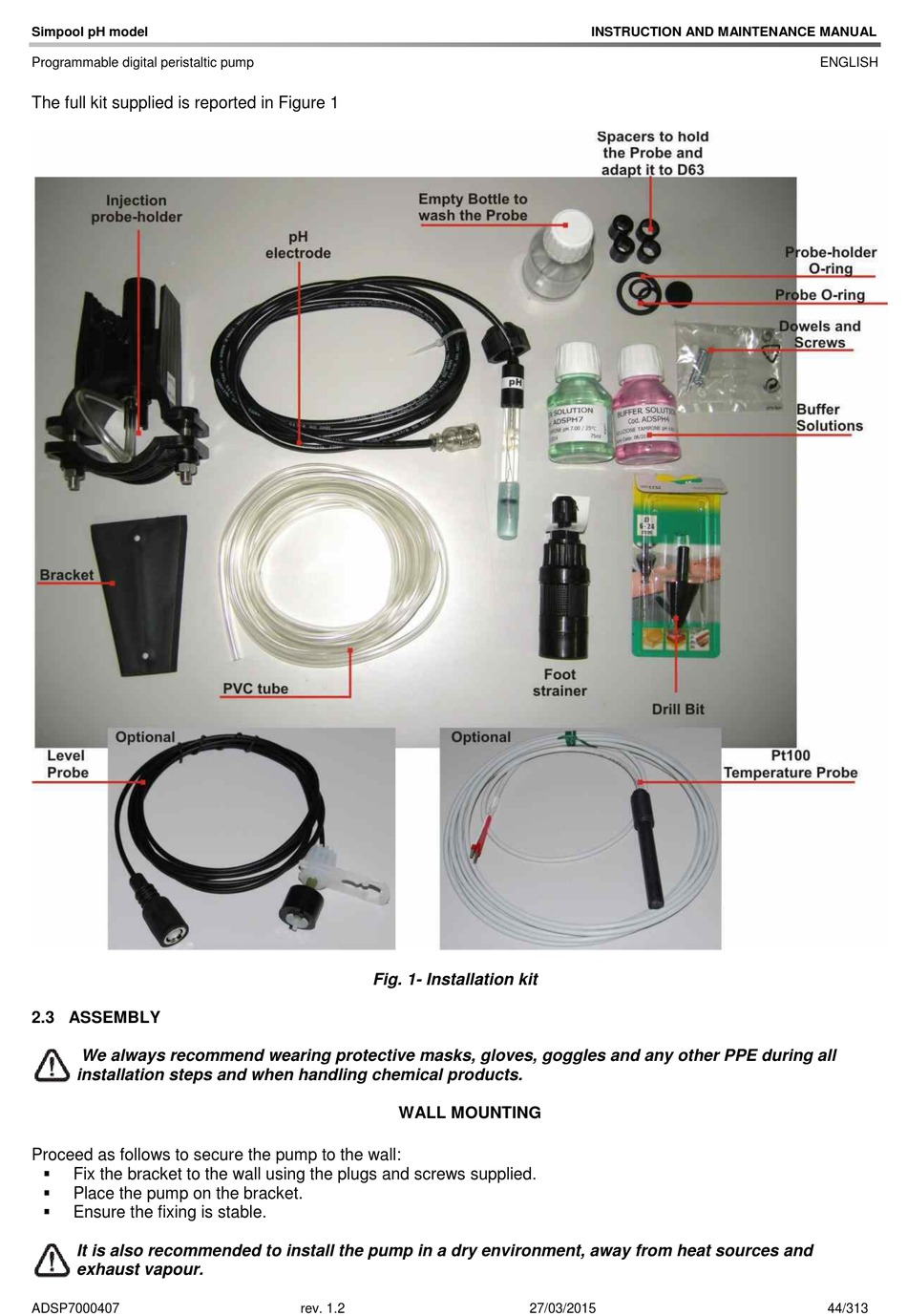

The full kit supplied is reported in Figure 1

2.3 ASSEMBLY

We always recommend wearing protective masks, gloves, goggles and any other PPE during all
installation steps and when handling chemical products.
Proceed as follows to secure the pump to the wall:

Fix the bracket to the wall using the plugs and screws supplied.

Place the pump on the bracket.

Ensure the fixing is stable.
It is also recommended to install the pump in a dry environment, away from heat sources and
exhaust vapour.
ADSP7000407
Fig. 1- Installation kit
WALL MOUNTING
rev. 1.2
INSTRUCTION AND MAINTENANCE MANUAL
27/03/2015
ENGLISH
44/313
