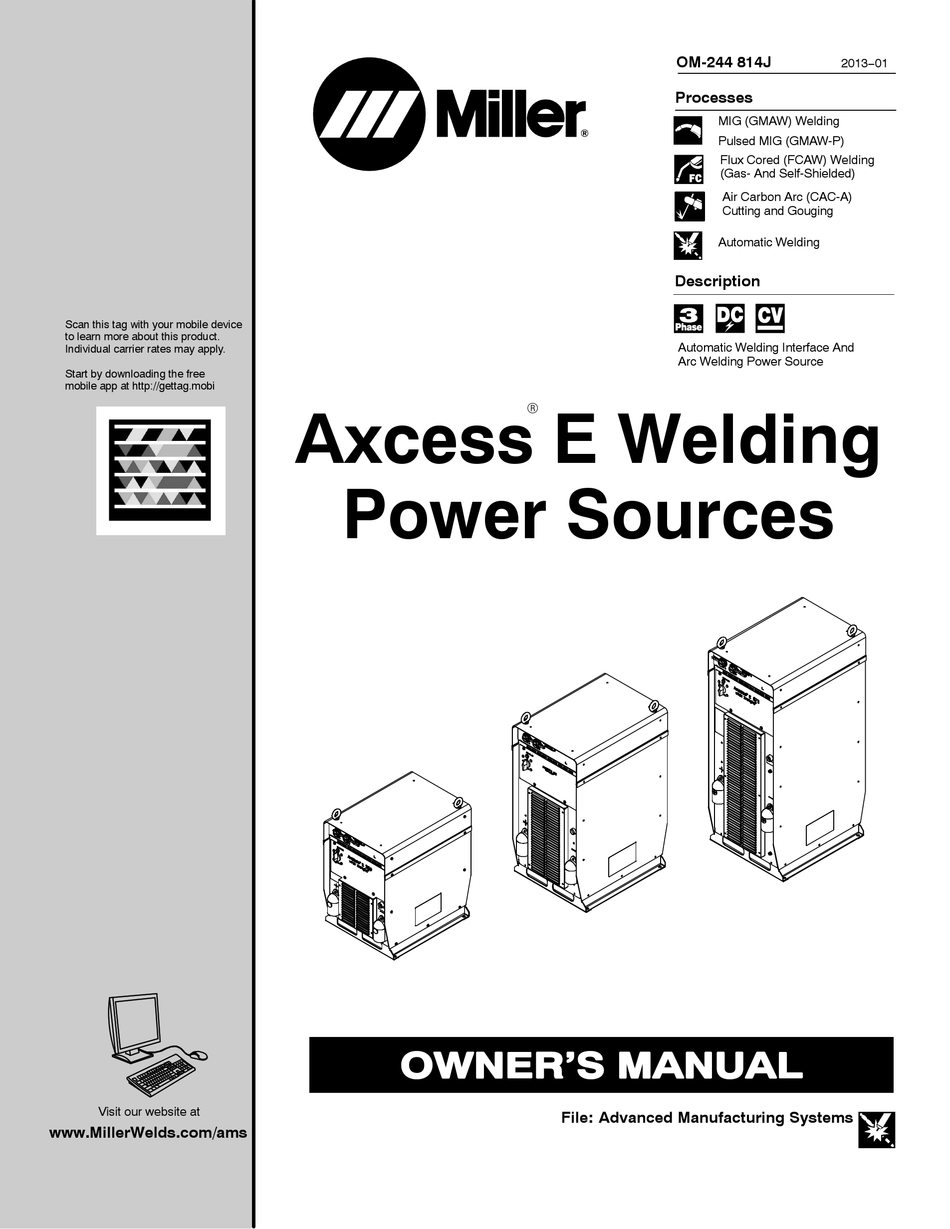

Axcess E Welding
Power Sources
OM-244 814J
Processes
Description
Automatic Welding Interface And
Arc Welding Power Source
R
File: Advanced Manufacturing Systems
2013−01
MIG (GMAW) Welding
Pulsed MIG (GMAW-P)
Flux Cored (FCAW) Welding
(Gas- And Self-Shielded)
Air Carbon Arc (CAC-A)
Cutting and Gouging
Automatic Welding
