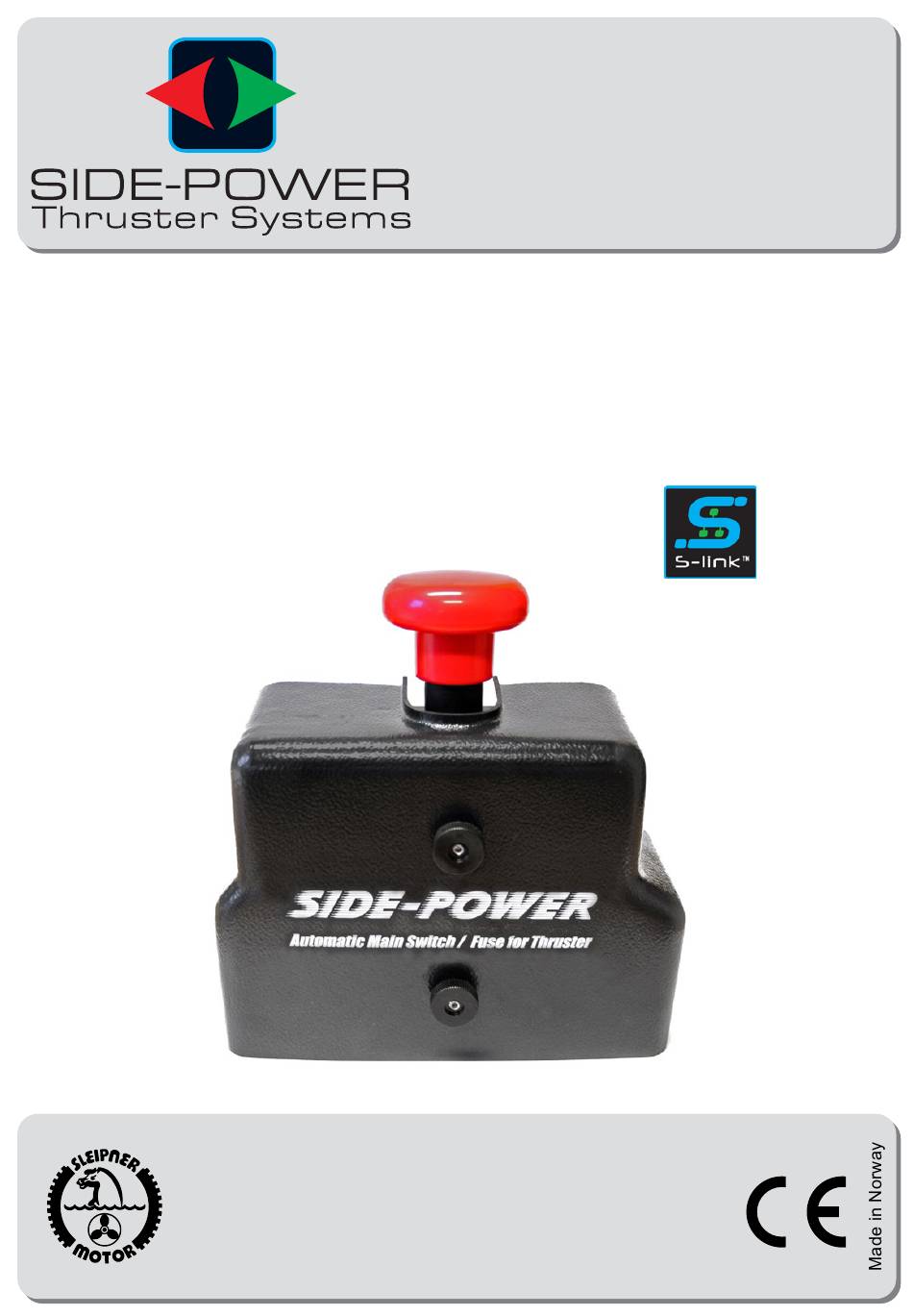

- Page 1 Automatic Main Switch S-Link Installation Manual SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 5169 www.side-power.com Revision: Date: 2020 © Sleipner Motor AS 2020...
-
Page 2: Table Of Contents
Spare Parts ................10 Warranty statement .............. 10 DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the essential health and safety requirements according to:... -
Page 3: Considerations And Precautions
(NB: These instructions are only general instruction. If you are not skilled to do this work, please contact professional installers for assistance.) All electrical work must be done by a licensed professional. Faulty installation of the tunnel, thruster or panel will render all warranty given by Sleipner Motor AS void. MC_0038 Considerations and Precautions... -
Page 4: Measurements
MG_0321 Thruster Measurements MC_0274 Measurement Measurement description code inch Height 194.3 Length Width 3.11 Width including fasteners 3.54 Attachment hole from the top 51.5 2.03 Attachment hole from the bottom 92.8 3.65 Attachment hole from the side 37.5 Distance between attachment hole 121.8 Attachment hole from the side 45.7... -
Page 5: Specifications
Automatic Main Switch Manual over ride button. Push to shut OFF Pull to activate ON Fuse holder Main cable(s) to the thruster Main cable(s) from battery(ies) MG_0327 5169 2020... -
Page 6: Ams Installation
Spring washer Spring washer Washer Washer Washer Cable Fasten 20 Nm Fuse Washer (14.5 lb/ft) Washer Washer Fuse Pull out Push In 5 - 8 9 - 12 Cable Spring washer Washer MG_0323 AMS Installation MC_0275 ! Please refer to the graphic for special considerations relating to your model ! Instaling the fuse and battery cables. -
Page 7: Electrical Specifications
PJC 212 PJC 212 Proportional Proportional joystick joystick 8730 8730 control panel control panel Bow and stern Bow and stern Observe PPC battery S-link external S-link external switch interface switch interface Station 1 Station 2 terminal polarity ! and remote and remote (optional) (optional) -
Page 8: Wiring Diagram
Technical Wiring Diagram Side-power S-link network cables Automatic Main Switch 8977 12 (12V) 8977 24 (24V) Main fuse black Thruster SEP thruster Battery on/off 12/24V Coil feed RETRACT thruster Switch +12/24V (optional) DESCRIPTION OF WIRING DIAGRAMS: - Install the correct main fuse depending on thruster model fitted. - Coil feed can be taken from any 12V or 24V battery source. -
Page 9: Service
Service MC_0278 ! Please refer to the graphic for special considerations relating to your model ! Service/ maintenance on all-electric equipment regularly Ensure: - Equipment is clean and dry. - Ensure all cable and other connections are tight and without signs of excessive heat or corrosion. Troubleshooting Feedback to control panels: - Manual override:... -
Page 10: Spare Parts
Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in eff ect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 11 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................5169 2020...
- Page 12 Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice. Therefore, Sleipner Motor AS can not accept liability for any possi- ble differences between product and document.
