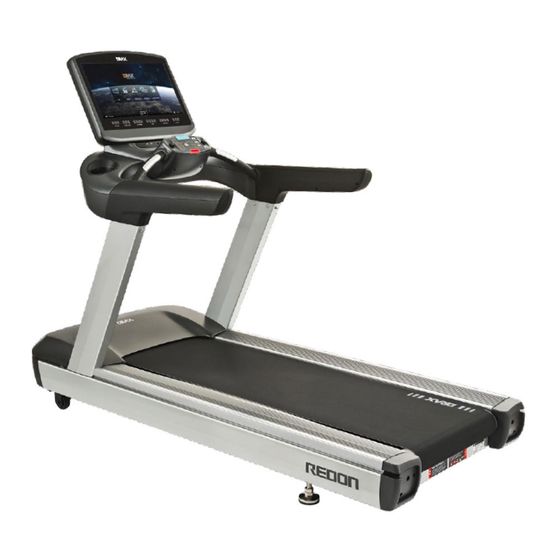

- Page 1 V1.2E USER’S MANUAL NR30/NR25/NR20 /&8 3&%0/ Be sure to read the manual before using the product in order to use safely and correctly. Please keep user manual at a place to be available easily.
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED INSTALLATION - PRECAUTIONS - PART NAME - HOW TO MAKE INSTALLATION - HOW TO CHECK OPERATION - ADJUSTMENT OF BELT-TENSION HOW TO USE - DETAIL OF DISPLAY CONSOLE - DISPLAY AND CONSOLE - SPEEDSYNC TYPE - NORMAL TYPE FUNCTION OF PROGRAM FEATURES BY MODEL MAINTENANCE... -
Page 3: Getting Started
Do not operate this exercise equipment if damaged or if any abnormal noises are heard. Please Contact DRAX INC. Customer Support Center for assistance. Caution • The owner of exercise equipment must inform all users of the safety instructions and correct operating procedure for this exercise equipment. -
Page 4: Installation
INSTALLATION PRECAUTIONS _ (1) Always ensure that this exercise equipment is installed on flat level ground and feet are leveled and locked into place prior to operation. (2) Always only use the grounding type power cord that is supplied with the exercise equipment. (3) Always allow enough space to access the power switch located on the front of the treadmill. -
Page 5: How To Make Installation
(1) Unpack the exercise machine from the transport packaging and remove all rubbish. (2) Lay all of the components out in a clear manner and check that you have all of the components shown below, if any of the components are missing please contact DRAX INC. Customer Support Center. Components... - Page 6 (6) Evenly tighten all of the M12 and M8 bolts, making sure that everything is lined up correctly and all cables are free of any impingements. Note: Recommended torque settings. - M12 Bolt : 30 Nm - M8 Bolt : 20 Nm (8) Remove the rear cover from the console by unscrewing the 5 Philips head screws (see Fig.3).
-
Page 7: How To Check Operation
(3) Once belt adjustment is complete, you can start testing all functions and features (for more details, see Page 8 “How to use”). During this testing phase listen for any abnormal noises or vibrations. (4) If any problems are found during the testing phase, please contact DRAX INC. Customer Support Center. -
Page 8: Adjustment Of Belt-Tension
(see picture below). NOTE : Do not over tension the running belt. If the belt continues to slip after multiple attempts to tension it, please contact DRAX INC. Customer Support Center. Adjustment of Belt-Tension... -
Page 9: How To Use
NEW REDON HOW TO USE DETAIL OF DISPLAY CONSOLE _ ① Start/Stop Button ② Emergency STOP Key ③ Incline control lever ④ Speed control lever ⑤ Touch type Heartrate Sensor ① START / STOP Button Used to start and stop the exercise program. ②... -
Page 10: Display And Console
SPEEDSYNC TYPE _ ① Main Screen ② Exercise Display ③ USB ④ Earphone Jack ⑤ Program Button ⑥ Keypad ⑦ SpeedSYNC ⑧ Quick Speed Button ① Main Screen Displays TV / Internet / Screen-mirroring / Workout Programs etc. ② Emergency Display Displays critical workout metrics like, Time / Distance / Level / Calories / Heart rate etc. - Page 11 NEW REDON ⑥ Keypad - ON/OFF : Switch the main screen on and off. - MENU : Used to enter menu options. - Mirroring : Mirror your Android or IOS device screen directly to the machines main screen. - OK : OK Button. - CANCEL : Used to exit menus.
-
Page 12: Normal Type
NORMAL TYPE _ ① Main Screen ② Exercise Display ③ USB Port ④ Earphone ⑤ Quick Incline Button ⑥ Keypad ⑦ Program Button ⑧ Quick Speed Button ① Main Screen Main Screen : Displays TV / Internet / Screen-mirroring / Workout Programs etc. ②... -
Page 13: Function Of Program
NEW REDON FUNCTION OF PROGRAM MAIN SCREEN _ Android based system : Comes preloaded with various functions such as TV, video, internet, virtual tour etc. Enjoy watching free to air TV. Once TV is selected, either touch the screen and use ‘CH +/-’ or alternatively use the ‘CH ▲/▼’ hard buttons located on the operating panel to scroll through the available channels. - Page 14 WI‒FI SETUP _ 1. Press “SETUP” button located in the bottom right hand corner of the main screen. 2. Press ‘Admin Setup’ followed by ‘WiFi Setup’. Note - Password : 1100 3. Select your preferred Wi-Fi network from the list of available networks. 4.
- Page 15 NEW REDON BLUETOOTH SETUP _ 1. Press ‘Setup’ button located in the bottom right hand corner of the main screen. 2. Press ‘Bluetooth Setup’ and choose from the list of available devices. TV SETUP 1. Press ‘Setup’ button located in the bottom right hand corner of the main screen. 2.
- Page 16 3. Once you have accessed screen mirroring on your mobile device, select the machine ID that corresponds to the machine you are using (ie. DRAX 463 shown in the above picture). 4. Once mirroring is connected your mobile device screen will appear on the machines main screen.
- Page 17 NEW REDON 2. Press 'MENU' button for more 2 seconds and the menu mode appears. 3. ▲,▼,◀,▶ Use this button to select 'Auto Tuning' mode. 4. ▲,▼,◀,▶ Use this button to select your country then press ‘OK’.
-
Page 18: Features By Model
FEATURES BY MODEL INCLINE SUPPORTED MODEL SERIES _ MODEL SpeedSYNC SYSTEM ● ● ● ● ● ● (Patented) SAFETY STOP ● ● ● ● ● ● ● ● ● SENSOR DETECTION OF USER Android OS System ● ● ● Touch Screen ●... - Page 19 NEW REDON INCLINE NON-SUPPORTED MODEL SERIES _ MODEL SpeedSYNC SYSTEM ● ● ● ● ● ● (Patented) SAFETY STOP ● ● ● ● ● ● ● ● ● SENSOR DETECTION OF USER Android OS System ● ● ● Touch Screen ●...
-
Page 20: Maintenance
- Check the power cord is connected properly at both ends. - Remove the power cord from the power supply and inspect it for damage. - If the problem continues contact DRAX INC. Customer Support Center. Notice Always only use the grounding type power cord that is supplied with the exercise equipment. - Page 21 Do not attempt to disassemble this exercise equipment. Only use authorized service providers to service this equipment. Do not operate this exercise equipment if damaged or if any abnormal noises are heard. Please Contact DRAX INC. Customer Support Center for assistance.
- Page 22 Please use a soft, light cloth when you clean the exterior of product. Notice Rather than cleaning the product directly, clean it by using a vacuum cleaner after using a cloth. • Product Management Schedule Component Weekly Monthly Quarterly Twice a Year Yearly Display Clean...
-
Page 23: Limited Warranty
DRAX. 2. DRAX is not responsible or liable for indirect, special or con sequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or... - Page 24 V1.2E NEW REDON Series DRAX Inc. 26, Jeonpa-ro 62Beon-gil, Manan-gu, Anyang-si, Gyeonggi-do, 14086, KOREA Tel : +82-31-459-8530 Fax : +82-31-459-8531 E-mail : drax@draxfit.com www.draxfit.com...
