- Page 1 New REDON Series User’s MANUAL Be sure to read the manual before using the product in order to use safely and correctly. Please keep user manual at a place to be available easily.
-
Page 2: Table Of Contents
1. Getting Started ------------------------------------ 2 2. Installation ----------------------------------------- 3 2-1. Precautions ------------------------------------------- 3 2-2. Part Name -------------------------------------------- 3 2-3. How to make installation --------------------------- 4 2-4. How to check operation ----------------------------- 6 2-5. Adjustment of Belt-Tension ------------------------- 6 3. How to use ----------------------------------------7 3-1. -
Page 3: Getting Started
Don’t dis-assemble the Motor Cover ASSY except permitted person. Never operate the treadmill in case that abnormal noise or damages are detected. Please Contact DRAX INC. Customer Support Center. Caution • The owner of treadmill must inform all users of the safety instructions and the methods how to use treadmill correctly •... -
Page 4: Installation
Installation 2-1. Precautions (1) The treadmill should be installed on a flat place and horizontally aligned. If the treadmill is placed on unstable pad or carpet, the belt may not be correctly arranged. In this case the treadmill will be overloaded and trouble can occur. (2) Make sure that enough space is secured in front of the treadmill so that you may find it easy to operate the power switch. -
Page 5: How To Make Installation
2-3. How to installation (1) Make sure whether “below components” are delivered or not. (2) If some of components are not delivered, Contact DRAX INC. Customer Support Center. Console Display ASSY [Components] Upper Frame ASSY . Main Frame ASSY . Upper Frame ASSY . - Page 6 (8) Unscrew the rear cover fixing Bolts(M5, Q’ty=5EA) on the display unit and detach the Rear Cover (9) Assemble “Front Cover” and “Rear Cover” and fit them as shown Fig.2. After then tighten the M8 Bolt(Q’ty=4EA) with recommended Bolt-tightening torque. Front Cover Rear Cover Console guide rib(2point)
-
Page 7: How To Check Operation
(for more details, see Page 7 “How to use”). (5) During operating the treadmill, check whether abnormal noise/vibration occurred or not. If abnormal noise/vibration is detected, don’t operate the treadmill. Contact DRAX INC. Customer Support Center. TEL : 82-31-459-8530 FAX : 82-31-459-8531 E-MAIL : drax@draxfit.com... -
Page 8: How To Use
How to use 3-1. Detail of Display Console ① Start/Stop Button ② Emergency STOP Key ③ Incline lever ④ SpeedSYNC lever ⑤ Touch type Heartrate Sensor ① START / STOP Button If you want to start practice, push “START/STOP Button” and if you want to stop it, push “START/STOP Button”... -
Page 9: Display And Console
3-2. Display and Console “Display and control panels” show a useful information and provide various contents to users. In “New REDON” treadmill, 2 Types “Display and control panels” have(i.e. SpeedSYNC supported model and SpeedSYNC not-supported model). Depending on models or options, some functions may not be supported (see “Features by Model” on page 10, 11) SpeedSYNC Type ●... - Page 10 ⑦ SpeedSYNC Control Button : Treadmill’s speed for exercise can be automatically controlled by detecting the user’s movement-style. In case that user moves to forward-direction, speed is increased. Meanwhile, speed is decreased in case that user moves to backward-direction. SpeedSYNC Control Panel provides 3 types’ button. - SPEEDSYNC button : Speed is automatically controlled(nominal speed-control) - SPEEDSYNC + EXCITE button : Speed-control is optimized for the user who want to run in treadmill.
-
Page 11: Function Of Program
Function of Program 4-1 Main Screen This machine’s system is android base included TV, video, and internet, etc. TV You can switch to the TV screen and watch TV. You can change the channel using 'CH +/-' on the screen remote control or 'CH ▲ / ▼' on the control panel by touching the screen. - Page 12 MIRRORING You can connect your smartphone and enjoy your smartphone on the big screen. GO A quick start button to get you started right away. Language You can change your language. When the power is turned off and on, the default language is changed.
-
Page 13: Wi-Fi Setup
4-2 Wi–Fi Setup 1. Press SETUP at the bottom right of the screen. 2. Press 'Admin Setup', then 'WiFi Setup'. - Password : 1100 3. Turn on Wi-Fi, find the AP you want to connect to, select it, and enter your access password. 4. -
Page 14: Bluetooth Setup
4-3 Bluetooth Setup 1. Press ‘SETUP’ at the bottom right of the screen. 2. Press 'Bluetooth Setup' and search for and connect the device to connect to. 4-4 TV Setup 1. Press ‘SETUP’ in the lower right corner of the screen. 2. -
Page 15: Mirroring Setup
4-5 Mirroring Setup 1. Touch the 'MIRRORING' button on the screen or press the 'Mirroring' button on the control panel. 2. Check the 'Mirroring ID' on the bottom right of the mirroring standby screen and activate the mirroring function of your phone. 3. -
Page 16: Features By Model
Features by Model 5-1. Incline supported model series MODEL NR30SXA NR30XA NR30SX NR30X NR25SXA NR25XA NR25SX NR25X NR20SXA NR20XA NR20SX NR20X SPEED 0.8~25 km/h 0.8~25 km/h 0.8~20 km/h SpeedSYNC SYSTEM ○ ○ ○ ○ ○ ○ (Patented) INCLINE 0~22 % (Patented Dual Incline) 0~16 % (Patented Dual Incline) MOTOR AC 3HP (Max. -
Page 17: Incline Non-Supported Model Series
5-2. Incline non-supported model series MODEL NR30SA NR30A NR30S NR30 NR25SA NR25A NR25S NR25 NR20SA NR20A NR20S NR20 SPEED 0.8~25 km/h 0.8~25 km/h 0.8~20 km/h SpeedSYNC SYSTEM ○ ○ ○ ○ ○ ○ (Patented) INCLINE MOTOR AC 3HP (Max. 5HP treadmill duty) ROLLERS Ø... -
Page 18: Part List
Part List ● NR30SXA NR30SXA... - Page 19 Part List...
-
Page 20: Limited Warranty
DRAX. 2. DRAX is not responsible or liable for indirect, special or con sequential damages arising out of or in co nnection with the use or performance of the product or damages with respect to any economic loss, lo ss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or oth er consequential damages of whatsoever nature. - Page 21 DRAX Inc. 26, Jeonpa-ro 62Beon-gil, Manan-gu, Anyang-si, Gyeonggi-do, KOREA 14086 Tel : +82-31-459-8530 Fax : +82-31-459-8531 Web : www.draxfit.com E-mail : drax@draxfit.com...
Need help?
Do you have a question about the REDON Series and is the answer not in the manual?
Questions and answers

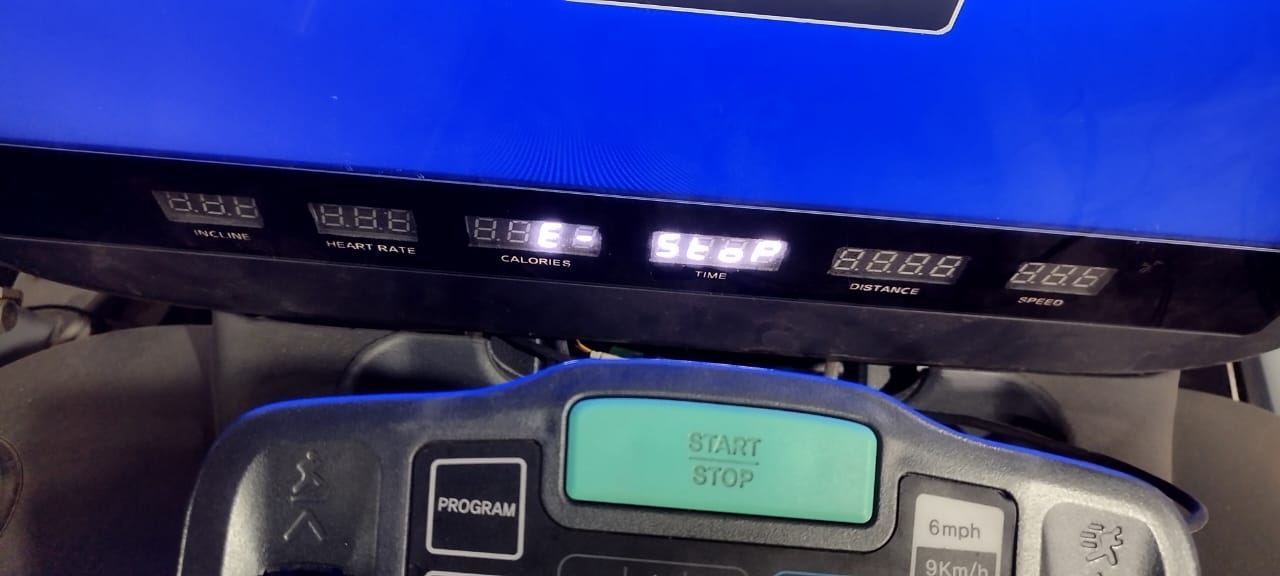

MACHINE NOT RUN ISSUE ,IT SHOWS E- STOP
