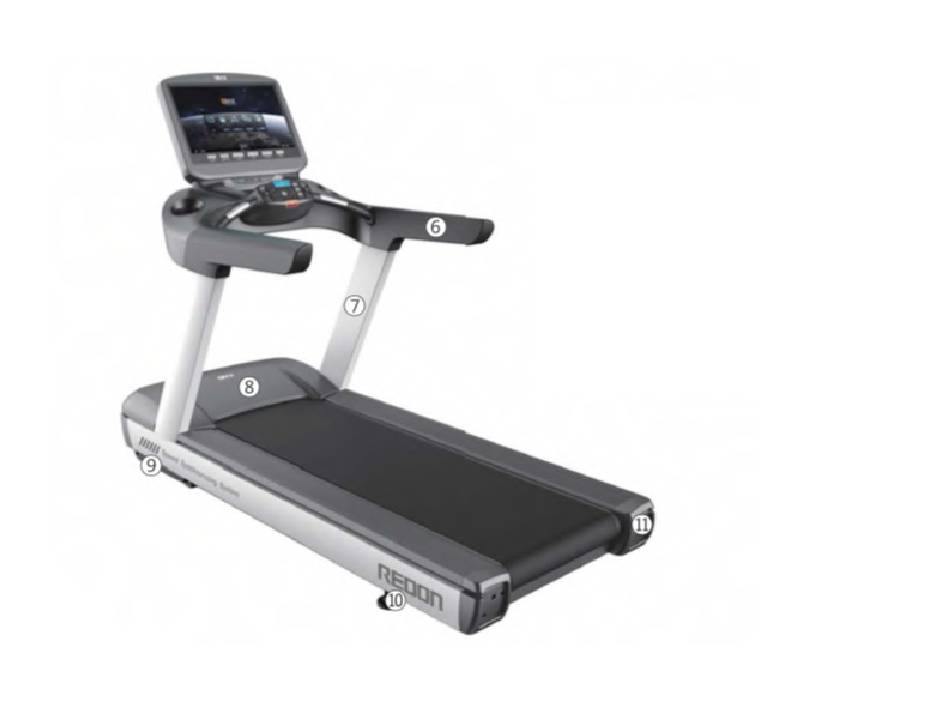

  • Page 1 DRAX New Redon Treadmill Installation User Manual...
  • Page 2 1. Remove motor cover 2. Connect cable set from frame through left side support post into console 3. Fasten both side support post with bolts 4. Fasten console with bolts & 5. Open back cover of console 6. Connect cable set from console frame into console 7.
  • Page 3 （2） （1） （5） （4） （3） 1. Recommend fasten bolts into following order from (1) to (5) in order to confirm solid assembly. 2. (1),(2) Fasten two bolts first but very loosely 3. (3) Fasten this bolt very firmly 4. (4),(5) Again fasten two bolts very firmly...
  • Page 4 Start / Stop Heart Rate (Touch) Speed Fast Switch Incline Fast Switch Heart Rate (Touch) Emergency Switch...
  • Page 5 Screen ON/OFF TV Channel START / STOP Shortcut Shortcut Speed Incline PROGRAM CoolDown Temporary Stop Emergency Stop Adjust Volume...
  • Page 6 Power Switch Coaxial TV cable HDMI cable connect connect (IPTV)
  • Page 7 Select Language LED window (continuously display Workout Program Virtual Trainer Watch TV Important workout informations) Admin Setup Watch Video Internet Service Smartphone Mirroring...
  • Page 8 In order to watch TV, press ‘TV’ To install TV channel setup for the first time, press ‘Setup’...
  • Page 9 input number “1100” (2) Press “Admin Setup”...
  • Page 10 Press “TV Setup” ! 1 0...
  • Page 11 (1) Press “Menu” (2) In order to move and select, need to use arrow key and OK key on membrane keypad ! 1 1...
  • Page 12 (1) There will be menu window on left side (2) Press “Down” to move to “TV” ! 1 2...
  • Page 13 (1) After move to TV, then press “OK” ! 1 3...
  • Page 14 (1) There will be menu window on left side (2) Press “Down” to move to “Channel Scan” ! 1 4...
  • Page 15 (1) After move to Channel Scan, then press “OK” ! 1 5...
  • Page 16 (1) Scanning channels (2) Scan Completed (3) Back to home screen ! 1 6...
  • Page 17 (1) Input USB including audio/ video files (2) Press “Video” (1) Two USB port (1) Ear phone (2) Support smartphone charge (2) Head phone ! 1 7...
  • Page 18 (1) In order to use preset workout program, press “WORKOUT” (1) Manual mode : target time, target distance, target calory ! 1 8...
  • Page 19 (1) FAT BURN : Designed to keep user’s heart rate at 65% of maximum heart rate (need heart rate check system) ! 1 9...
  • Page 20 (1) CARDIO : Designed to keep user’s heart rate at 80% of maximum heart rate (need heart rate check system) ! 2 0...
  • Page 21 (1) Preset Program : HILL 1, HILL 2, HILL 3, HILL 4 ! 2 1...
  • Page 22 (1) Preset Program : HILL 5, INTERVAL 1, 2, 3 ! 2 2...
  • Page 23 (1) Preset Program : INTERVAL 4 (1) Start name with “#” means User design workout (2) Very easy to input, copy, paste to create own workout ! 2 3...
  • Page 24 (1) In order to use Internet service, Press “INTERNET” (2) Need to connect WIFI, see next page (1) You can setup your own internet service with icons ! 2 4...
  • Page 25 input number “1100” press ‘Setup’ (2) Press “Admin Setup” Press “WIFI Setup” to connect your wifi service...
  • Page 26 (1) In order to use Virtual Street Trainer, Press “INTERNET” (1) Enjoy 8 European Virtual Street Trainer (2) France, UK, Austria, Germany, Italy ! 2 6...
  • Page 27 (1) Enjoy with SpeedSync automatic running system [NR30SXA, NR25SXA, NR20SXA] ! 2 7...
  • Page 28 手机画面投射（显示镜像） (1) In order to use smartphone mirroring system, press “MIRRORING” 法国 英国 奥地利利 德国 奥地利利 奥地利利 意大利 德国 (1) You can send smartphone display into 22” big screen while workout ! 2 8...
  • Page 29 (1) Each unit has its specific identification name, such as “DRAX 300” ! 2 9...
  • Page 30 Apple Android Both available (1) Select DRAX 300 on your smartphone wifi selection. ! 3 0...
  • Page 31 (1) Select Display Mirroring (or MirraCast) ! 3 1...
  • Page 32 (1) Select DRAX 300 ! 3 2...
  • Page 33 (1) Send your smartphone display into treadmill screen ! 3 3...
  • Page 34 (1) Select STOP MIRRORING when you finish ! 3 4...
