Summary of Contents for minrray UV850

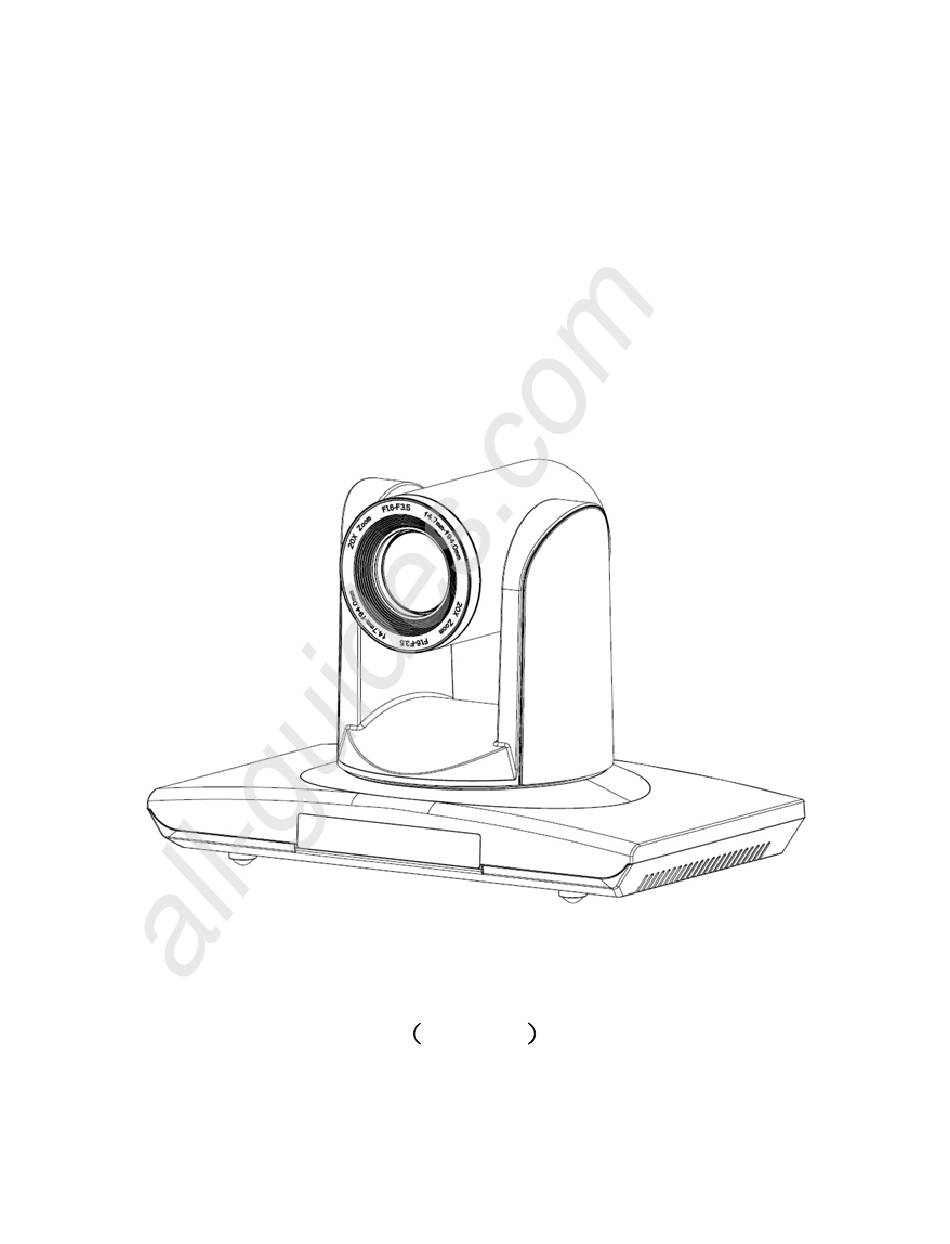

- Page 1 All manuals and user guides at all-guides.com HD Color Video Camera User Manual English...
- Page 2 All manuals and user guides at all-guides.com Preface: Thanks for using our HD color video conference camera . This manual introduces the function installation and operation of the HD camera . Prior to installation and usage , please read the manual thoroughly . Warning This product can be only used in specified range in order to avoid any damage or danger;...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Contents NOTES..................................3 SUPPLIED ACCESSORIES............................3 FAST INSTALLATION..............................4 CAMERA HIGHLIGHTS ...............................5 CAMERA SPECIFICATIONS ............................5 CAMERA INTERFACE EXPLANATION ........................6 APPEARANCE DIMENSION ............................6 REMOTE CONTROLLER ............................7 USAGE OF IR REMOTE CONTROLLER........................8 RS-232C INTERFACE (PIN SPECS) .........................10 COM CONTROL.................................11 MENU SETTING.................................18... -
Page 4: Notes
All manuals and user guides at all-guides.com Notes Electric Safety Installation and operation must accord with electric safety standard Caution to transport Avoid stress, vibration and soakage in transport , storage and installation . Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .polarity of the power supply drawing. -
Page 5: Fast Installation
All manuals and user guides at all-guides.com Fast Installation 1. Please check the connection before turn on the power . 2. Bottom Dial Switch Setting Set Two DIP switch “OFF”,it is the Working Mode. Setting and instruction bottom dial switch : SW-1 SW-2 Modes... -
Page 6: Camera Highlights
All manuals and user guides at all-guides.com 4, When Power supply switch is “on” ,the indicator light is open(red color) 5, Camera initializes after 5 seconds : Rotate to the right limit, move to the down limit; Then turn left, motor stops when horizontal and vertical rotation is in the middle, camera lens will move to the wide angel position. -
Page 7: Camera Interface Explanation
All manuals and user guides at all-guides.com Pan Control Speed 72.5° ~ 6.9°/sec Dimension 265mmX145mmX179mm Tilt Control Speed 44.8° ~ 3.9°/sec Color Silver&Black Pan Rotation ±170° Weight 2.0Kg Working Tilt Rotation -30° ~ +90° 0 to+45 Temperature Storage Pan Rotation Speed 1.7°... -
Page 8: Remote Controller
All manuals and user guides at all-guides.com Remote Controller 0 Standby key After pressing the standby key, the camera will step into standby mode.Press again,the camera will open again.(Note: Standby mode power consumption is about half of the normal mode) (Note: Standby mode power consumption is about half of the normal mode) 1 Number key... -
Page 9: Usage Of Ir Remote Controller
All manuals and user guides at all-guides.com Usage of IR Remote Controller Starting normally, the camera can receive and execute the IR commands. It can set or run preset positions, and rotate via the IR remote controller. Key Instruction 1 In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. - Page 10 All manuals and user guides at all-guides.com 4.BLC Setting BLC ON / OFF: open or turn off the BLC(only available in the auto mode) 5. Presets setting 1.Preset setting : to set a preset position, the users should press the “ SET PRESET ” key first and then press the number key 0-9 to set a relative preset.
-
Page 11: Rs-232C Interface (Pin Specs)
All manuals and user guides at all-guides.com RS-232C Interface (Pin Specs) Camera Windows DB98 Function IR OUT VISCA OUT Function... -
Page 12: Com Control
All manuals and user guides at all-guides.com COM control In the normal working condition, the camera can connect a VISCA or Pelco-P or Pelco-D equipment via the control of RS232 IN. The parameter of the RS232C COM is as following: Baud Rate 2400/4800/9600 Bit/S Start bit: 1bit ;... - Page 13 All manuals and user guides at all-guides.com Command Function Command Packet Note Auto/Manual 8x 01 04 38 10 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM_ZoomFocus Direct 0t 0u 0v 0w FF tuvw: Focus Position Auto 8x 01 04 35 00 FF Normal Auto...
- Page 14 All manuals and user guides at all-guides.com Command Function Command Packet Note p: Flicker Settings(0: OFF, 1: 50Hz, 2: CAM_Flicker 8x 01 04 23 0p FF 60Hz) Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down...
- Page 15 All manuals and user guides at all-guides.com Command Function Command Packet Note 8x 01 04 A8 02 FF Color System Only valid in 720p60/1080p60 YPbPr 8x 01 04 A8 03 FF High 8x 01 04 A9 00 FF High CAM_AWBSensitivity Normal 8x 01 04 A9 01 FF Normal...
- Page 16 All manuals and user guides at all-guides.com ab: Factory Code(08: VHD) cd: Hardware Version y0 50 ab cd CAM_VersionInq 8x 09 00 02 FF mnpq: ARM Version mnpqrstuvw FF rstu: FPGA Version vw: Socket Number y0 50 00 FF 1920x1080i60 y0 50 01 FF 1920x1080p30 y0 50 02 FF...
- Page 17 All manuals and user guides at all-guides.com Part4 Customizing Control Command Command Function Command Packet Note 8x 02 16 16 16 65 FF CAM_Power Custom Power ON/OFF OFF(Standby) 8x 02 16 16 16 56 FF Forwarding TCL Standby 8x 01 02 75 75 01 04 FF AD DA 02 B0 01 04 AF FA TCL_Power Forwarding...
- Page 18 All manuals and user guides at all-guides.com Pelco-P Protocol Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed...
-
Page 19: Menu Setting
All manuals and user guides at all-guides.com Menu Setting 1. Main Menu In normal image condition, press “MENU” key to display the menu, using scroll arrow to point at or highlight the selected items. MENU Exposure Color Image P/T/Z Noise Reduction Setup Restore Default [Home] Enter... - Page 20 All manuals and user guides at all-guides.com AWBSens: Sensitivity of white balance. Low Normal High Hue: Tonal values of auto white balance: -7~ +7 4. IMAGE Choose and enter the Image item (by using “HOME” key) IMAGE Brightness Contrast Sharpness B&W-Mode Flip-H Flip-V...
- Page 21 All manuals and user guides at all-guides.com SETUP Language ColorSys YPbPr DVIMode HDMI Protocol VISCA Address AddrFix Baudrate 9600 Select Item Change Value [Menu] Back Language Manual Language ;EN Chinese ColorSys Set the color system in the DVI analog signal, YPbPr RGB only under 720p60/1080p60 valid for settings.
