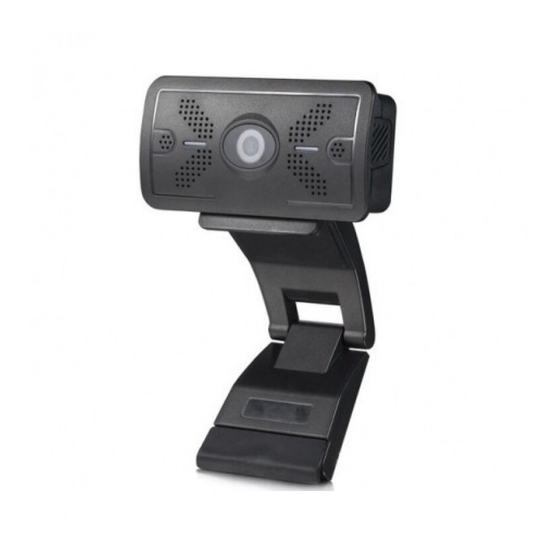

Desktop HD Video Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG101 and is the answer not in the manual?

Questions and answers

Summary of Contents for minrray MG101

  • Page 1 Desktop HD Video Camera User Manual...
  • Page 2 Desktop HD Video Camera User Manual Attentions This manual introduces functions, installations and operations for this camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.
  • Page 3 Desktop HD Video Camera User Manual Content 1. Camera Installation ..............................3 1.1 Product Interfaces ............................3 1.2 Usage of the Product ............................3 2. Product Introduction ..............................4 2.1 Product Dimension ............................4 2.2 Main Features ..............................4 2.3 Technical Parameter ............................5 3.
  • Page 4 Desktop HD Video Camera User Manual 1. Camera Installation 1.1 Product Interfaces Figure 1.1 Interfaces Instructions 5. Fixation Clamp 1. Lens(fixed) 3. USB2.0 Cable Outlet Hole(no plug) 4. Screw Hole for Bracket 2.Audio IN(built in pick-up) The USB 2.0 port available for plug and play, it can output video and power the camera. 1.2 Usage of the Product 1)Product fixation: Fix the device on LCD screen, the top of laptop, directly on desk or on tripod.
  • Page 5 Desktop HD Video Camera User Manual 2. Product Introduction Product Dimension Figure 2.1 Product Dimension Please check and confirm all accessories are provided when opening the package: User Manual x 1 Warranty Card x 1 2.2 Main Features This series camera offers perfect functions and superior performance. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
  • Page 6 Desktop HD Video Camera User Manual c. Stereo Sound: Built in omni-directional high sensitivity digital pick-up; the stereo sound is clear and natural; no need installing external pick-up equipment. d. Multiple Video Encoding: Support H.264, H.265, MJPEG, YUV video encoding which enables the video play more fluently.
  • Page 7 Desktop HD Video Camera User Manual Do not use strong or corrosive detergents to avoid scratching the lens and affecting the video quality. 3.2 Troubleshooting 1) No video output a. Check whether the camera USB cable is connected, USB port is normal, the power indicator is lit. b.
