  • Page 1: User Manual

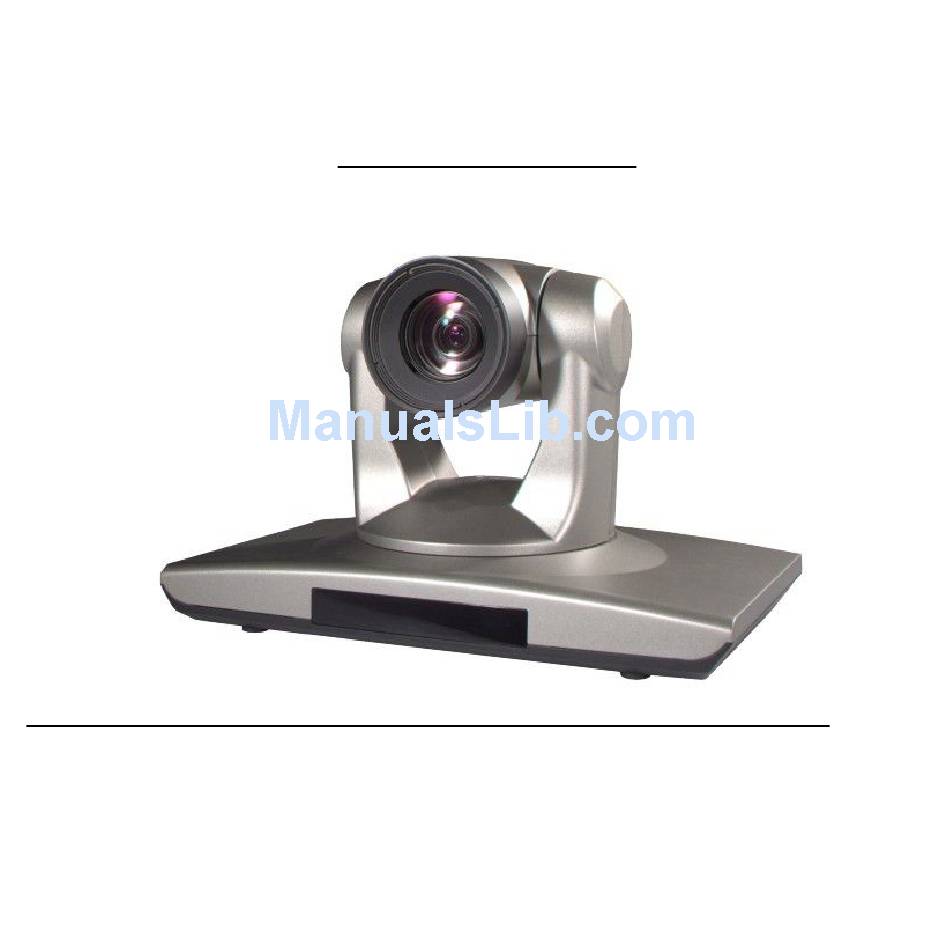

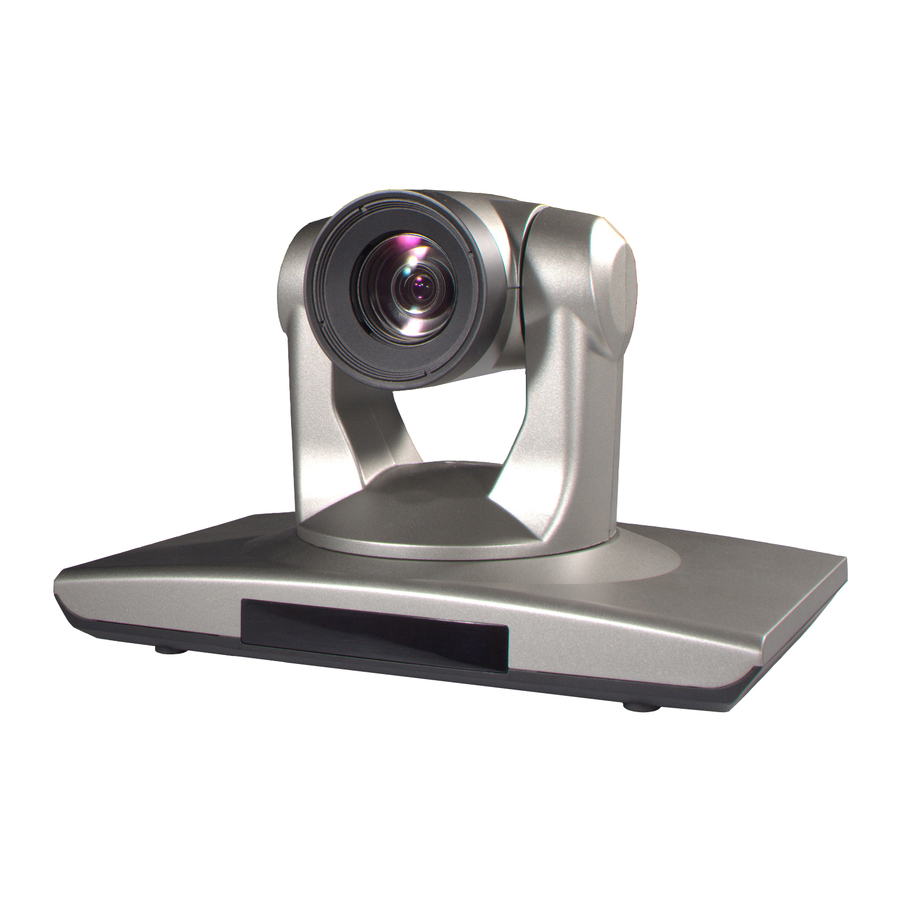

    HD Color Video Camera User Manual （English）...
  • Page 2 Preface: Thanks for using our HD color video conference camera . This manual introduces the function, installation and operation of the HD camera . Prior to installation and usage , please read the manual thoroughly . Warning This product can be only used in specified range in order to avoid any damage or danger; Don’t expose the camera to rain or moisture place Don’t remove the cover to reduce the risk of electric shock.

  • Page 3: Table Of Contents

    【Contents】 1. Notes ………………………………………… 2. Accessories …………………………………………. 3. Fast Installation……………………………………… 4. Camera Highlights………………………… 5. Camera specifications………………………………… 6. Camera interface explanation………………………………… 7. Remote Controller explanation………………………………………… 8. Usage of IR remote controller ……………………… 9. VISCA RS-232 pin specs…………………………………. 10. Series COM Control ………………………………………….. 11.

  • Page 4: Notes

    Notes Electric Safety Installation and operation must accord with electric safety standard Caution to transport Avoid stress, vibration and soakage in transport , storage and installation . Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2.5A .polarity of the power supply drawing.
  • Page 5 We are not responsible for any unauthorized modification or dismantling . Supplied Accessories When you unpack , check that all the supplied accessories are included : Camera …………………………1 Power adapter …………………1 Power cable…………………….1 RS232 cable…………………….1 Remote controller………………1 User manual ……………………1 Double-side glue shim …………4...

  • Page 6: Fast Installation

    Fast Installation 1. Please check the connection before turn on . 2, Bottom Dial Switch Setting Set Two DIP switch “OFF”,it is the Working Mode. Setting and instruction bottom dial switch : SW-1 SW-2 Modes Working mode Updating Mode Debugging Mode...
  • Page 7 3. The Rotary Switch Setting Sixteen Rotary Switch setting for format setting selections: Index 1080P60 ----- ----- 1080P50 ----- ----- 1080I60 1080I60 ----- 1080I50 1080I50 ----- 720P60 720P60 720P60 720P50 720P50 720P50 1080P30 1080P30 ----- 1080P25 1080P25 ------ 720P30 720P30 720P30 720P25 720P25...

  • Page 8: Camera Highlights

    Note: Please restart the camera after shift the video format 4, When Power supply switch is “on” ,the indicator light is open(red color) 5, Camera initializes after 5 seconds: Rotate to the right limit, move to the down limit; Then turn left, motor stops when horizontal and vertical rotation is in the middle, camera lens will move to the wide angel position.

  • Page 9: Camera Specifications

    4, The unique Iridix exposure dynamic control algorithm, based on the human eye model, makes the image even exposure and strong sense of hierarchy; With the most advanced CMOS sensor which support WDR ,camera can capture all images clearly in the strong contrast between black and light environment(such as backlight);...

  • Page 10: Camera Interface Explanation

    Camera Interface Explanation 1.Camera lens 2.Camera base 3.Power indicator light (red) 4.Remote Controller Receiver light (red) 5.Bottom dial Switch 6.Tripod screw hole 7.Installation Orientation Hole 8.Rotary Switch : video format optional 9.RS232 controller serial interface (input ) 10.RS232 controller serial interface (output )

  • Page 11: Remote Controller Explanation

    11.HD-SDI High Definition Serial Digital Signal interface 12.DVI-I interface(can convert to YPbPr and DVI(HDMI) HD Digital Output) 13.DC12V Input Power Supply Jack 14.Power Switch 15.Power indicator light(red) Remote Controller: Definition of IR controller 0、Standby key After pressing the standby key, the camera will step into standby mode.Press again,the...
  • Page 12 or：＃+＃+＃：clear all the presets 4、BLC control key BLC ON：open black light compensation（only work when exposure mode setting is Auto） BLC OFF：close black light compensation（Only available in the exposure mode effective for Auto） 5、Focus control key Focus＋：focus length far from near Focus－：focus length near from far Auto focus：the camera focus mode is auto Manual focus：the camera focus mode is manual...
  • Page 13 【*】+【＃】+【F3】 ：Camera Address No. 3 【*】+【＃】+【F4】 ：Camera Address No. 4 IR Remote Control When the camera is working, users can control the pan/tilt/zoom, setting and taking preset positions via remote controller. Instruction： 1、In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required.
  • Page 14 Back to middle position：press“HOME” Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until it run to the endpoint; The pan/tilt running stops as soon as the key is released. 2. Zoom Operation ZOOM OUT: press “ZOOM “...
  • Page 15 Focus (far)： Press ”focus+” key Focus (near)： Press “focus-“key Auto Focus: Press "auto" Manual Focus: Press "manual" Press and hold the key, the action of focus continues and stops as soon as the key is released. 4.BLC Setting BLC ON: Press BLC ON/OFF BLC OFF：Press again 5.Presets setting...
  • Page 16 1、Preset setting : to set a preset position, the users should press the “SET PRESET” key first and then press the number key 0-9 to set a relative preset, 10 preset positions in total are available. 2、Preset clearing : to clear a preset position, the user can press the “CLEAR PRESET” key first and then press the number key 0-9 to clear the relative preset;...
  • Page 17 Note: Action in vain if a relative preset position is not existed. 7、Camera Address Setting Select the camera you want to controller by press the number key 8、Camera Remote Controller Address Setting 【*】+【＃】+【F1】 ：Camera Address No.1 【*】+【＃】+【F2】 ：Camera Address No. 2 【*】+【＃】+【F3】...
  • Page 18 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Windows DB-25 1.DTR 1.FG 2.DSR 2.TXD 3.TXD 3.RXD 4.GND 4.RTS 5.RXD 5.CTS 6.GND 6.DSR 7.IR OUT 7.GND 8.NC 20.DTR Function...
  • Page 19 Camera Mini DIN IR OUT 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.NC 8.NC 8.NC VISCA OUT Function...
  • Page 20 COM Control In default working mode, the camera is able to be controlled via RS-232C command (VISCA IN) . the parameter of the RS232C COM as following : Baud Rate ：9600 Bit/S Start bit：1bit ; Data bit: 8bit ; Stop bit : 1bit; Code: None Connected to power, the camera runs to the right middle position, with the farthest zoom rate, auto...
  • Page 21 Returned when a command cannot be executed due to Command current conditions. For example, when commands z0 61 41 FF Executable controlling the focus manually are received during auto focus. Part 2 Controlling Command Command Function Command packet Note AddressSet Broadcast 88 30 01 FF Address setting...
  • Page 22 Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual 8x 01 04 38 03 FF AF ON/OFF Focus Auto/Manual 8x 01 04 38 10 FF CAM_ZoomFocu 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position Direct 0t 0u 0v 0w FF...
  • Page 23 Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode 8x 01 04 39 21 FF WDR mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF 8x 01 04 4A 00 00 0p 0q Direct pq: Shutter Position...
  • Page 24 60Hz) Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF 8x 01 04 42 00 00 0p 0q Direct pq: Aperture Gain Reset 8x 01 04 3F 00 0p FF p: Memory Number(=0 to 9) CAM_Memory 8x 01 04 3F 01 0p FF...
  • Page 25 8x 01 06 01 VV WW 02 03 Right 8x 01 06 01 VV WW 01 01 Upleft 8x 01 06 01 VV WW 02 01 Upright 8x 01 06 01 VV WW 01 02 DownLeft 8x 01 06 01 VV WW 02 02 DownRight 8x 01 06 01 VV WW 03 03 Stop...
  • Page 26 y0 50 02 FF Auto Focus CAM_FocusAFModeIn 8x 09 04 38 FF y0 50 03 FF Manual Focus CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode...
  • Page 27 CAM_BacklightModeIn 8x 09 04 33 FF y0 50 02 FF y0 50 03 FF CAM_Noise2DModeInq 8x 09 04 53 FF y0 50 0p FF Noise Reduction (2D) p: 0 to 5 CAM_Noise3DModeInq 8x 09 04 54 FF y0 50 0p FF Noise Reduction (3D) p: 0 to 5 p: Flicker Settings(0: OFF, 1: CAM_FlickerModeInq...
  • Page 28 y0 50 09 FF 1920x1080p25 y0 50 0A FF 1280x720p50 y0 50 0B FF 1280x720p25 y0 50 0F FF 1920x1080p50 ww: Pan Max Speed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position Pan-tiltPosInq 8x 09 06 12 FF...
  • Page 29 Pelco-D Protocol Function Byte1 Byte2 Byte5 Byte6 Addre 0xFF Tilt Speed Speed Addre Down 0xFF Tilt Speed Speed Addre Left 0xFF Tilt Speed Speed Addre Right 0xFF Tilt Speed Speed Addre Zoom In 0xFF 0x00 0x00 Addre Zoom Out 0xFF 0x00 0x00 Addre...
  • Page 30 Addre Query Pan Position 0xFF 0x00 0x00 Query Position Addre Value Value 0xFF Response High Byte Low Byte Addre Query Tilt Position 0xFF 0x00 0x00 Query Tilt Position Addre Value Value 0xFF Response High Byte Low Byte Addre Query Zoom Position 0xFF 0x00 0x00...
  • Page 31 Addr Tilt Right 0xA0 Speed Speed Addr Zoom In 0xA0 0x00 0x00 Addr Zoom Out 0xA0 0x00 0x00 Addr Focus Far 0xA0 0x00 0x00 Addr Focus Near 0xA0 0x00 0x00 Addr Preset Set Preset 0xA0 0x00 Addr Preset Clear Preset 0xA0 0x00 Addr...
  • Page 32 Addr Query Pan Position 0xA0 0x00 0x00 Value Value Query Pan Position Addr 0xA0 High Response Byte Byte Addr Query Tilt Position 0xA0 0x00 0x00 Value Value Query Tilt Position Addr 0xA0 High Response Byte Byte Addr Query Zoom Position 0xA0 0x00 0x00...

  • Page 33: Menu Setting

    Menu Setting 1. Main Menu In normal image condition, press “MENU” key to display the menu, using scroll arrow to point at or highlight the selected items. MENU Exposure Color Image Noise Reduction Setup Restore Default [HOME] Enter [MENU] Exit 2.
  • Page 34 EXPOSURE MODE Auto EVLevel G.Limit Flicker Meter Average Select Item Change Value [Menu] Back Mode: Exposure Mode, five options available: Auto, Manual, AAE, SAE, And WDR Exposure Value: Off, On EVLevel: Exposure compensation levels: -7~+7 BLC: Back Light Compensation: Off, On G Limit: Biggest gain limit: 0~ +7 Flicker: Anti-Flicker: Off, 50Hz, 60Hz...
  • Page 35 3. COLOR Choose and enter the COLOR item (by using up/down/left/right and HOME key) BACKLIGHT WB-Mode Sta. 120% Select Item Change Value [Menu] Back WB-Mode: White balance mode: Auto, Indoor, Outdoor, OnePush , Manual RG: Red Gain: -5~+5（only available in the mode of Manual） BG: Blue Gain: -5~+5（only available in the mode of Manual）...

  • Page 36: Noise Reduction

    IMAGE Brightness Contrast Sharpness B&W-Mode Off Flip-H Flip-V Select Item Change Value [Menu] Back Brightness: -5 ~ +5 value setting Contrast: -5 ~ +5 value setting Sharpness: 0 ~ 15 value setting B&W-Mode: On, Off Flip-H: Image Flip Horizontal: On, Off Flip-V: Image Flip Vertical: On, Off 5.
  • Page 37 NOISE REDUCTION NR2D-Level NR3D-Level D-HotPixel DarkDetail Select Item Change Value NR2D-Level: 2D Noise Reduction: Off, 1 ~ 5 NR2D-Level: 3D Noise Reduction: Off, 1 ~ 5 Note: The higher the noise reduction level, the less image detail. 6. SETUP Choose and enter the Setup item (by using up/down/left/right and HOME key)

  • Page 38: Restore Default

    SETUP Language Protocol VISCA V.Addr Baudrate 9600 SpeedByZ AF-Sense Select Item Change Value [Menu] Back Language: only support English. Protocol: VISCA, P-D, P-P V. Addr: VISCA (able to set 1~7), P-D and P-P (able to set 1~15) Baud rate: 2400, 4800, 9600 SpeedByz: Speed by Zoom , On .

  • Page 39: Maintenance And Troubleshooting

    RESTORE DEFAULT Restore? Change Value [Home] OK [Menu] Back Restore: Yes or No Note: You need to enter the HOME key to confirm. 8. EXIT Enter the MENU key once again, you will see this interface. EXIT Save? Change Value [Home] OK [Menu] Back Save: Yes or No...

  • Page 40: Troubleshooting

    Camera Maintains If camera is not used for long time, please turn off power switch, adapter switch and AC plug. Use soft cloth or tissue to clean the camera cover. Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 41 Image dithering when at Maximum Zoom 1, Check whether camera is fixed correctly. 2, If there is vibrative mechanical object. Remote Controller 1, Change the battery 2, Check the camera operation mode is right. Terminal 1, Check the camera operation mode is right. 2, Check control wire is connected correctly.
