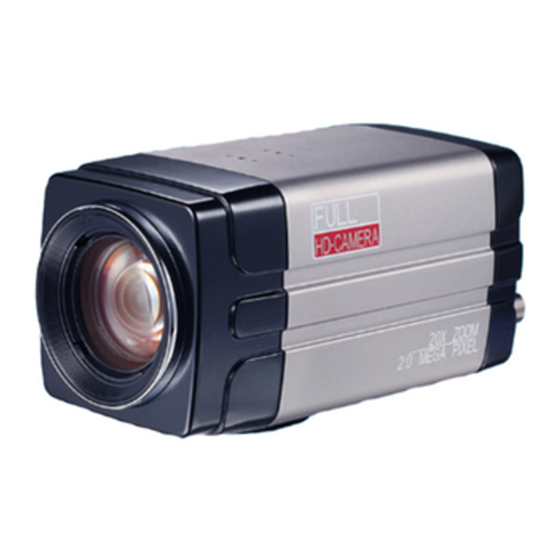

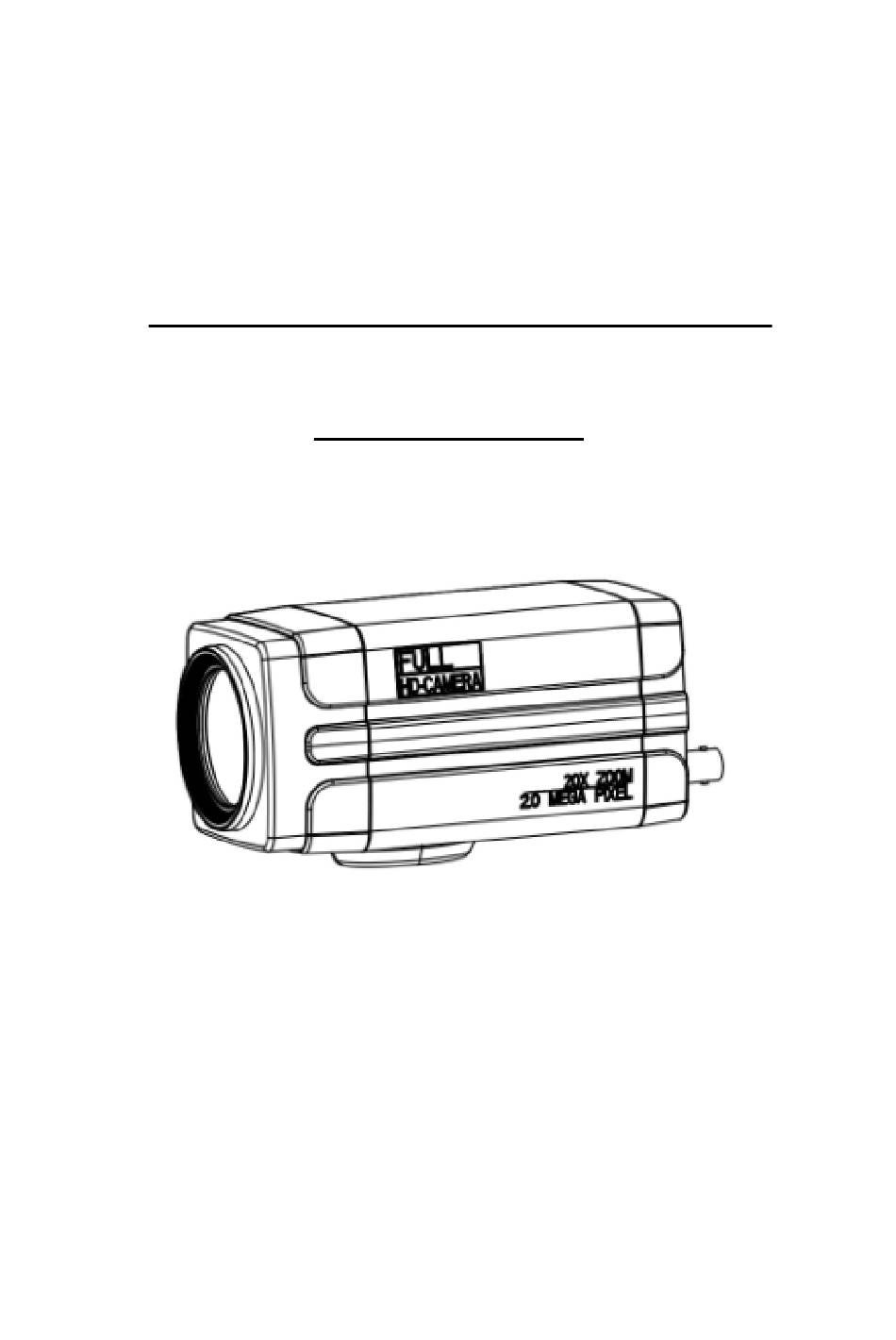

  • Page 1 HD Color Video Camera User Manual...
  • Page 2 Preface: Thanks for using our HD color video conference camera. This manual introduces the function installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Warning This product can be only used in specified range in order to avoid any damage or danger; ●Don’t expose the camera to rain or moisture place ●Don’t remove the cover to reduce the risk of electric shock.

  • Page 3: Table Of Contents

    Content 1、 Fast Installation..........................4 1.1、C ...........................4 AMERA NTERFACE XPLANATION 1.2、P ..............................5 OWER ON SELF TEST 1.3、V ................................5 IDEO OUTPUT 1.4、BRACKET MOUNTING............................6 2、Product overview..........................7 2.1、P ............................7 RODUCT INTRODUCTION 、 2.1.1 Product model..............................7 、 2.1.2 Dimension................................7 、 2.1.3 Accessory................................7 2.2、M .................................8...
  • Page 4 5.2、P ........................33 ELCO PROTOCOL COMMAND LIST 5.3、P .......................... 33 ELCO PROTOCOL COMMAND LIS 6、Camera Maintenance and Troubleshooting..................35 6.1、C ............................35 AMERA AINTENANCE 6.2、T ..............................35 ROUBLESHOOTING...

  • Page 5: 1、Fast Installation

    1、Fast Installation 1.1、 Camera Interface Explanation Pic 1.1 Back plate 1. HD-SDI interface 2. HDMI interface 3. LAN interface 4. RS485 interface，support VISCA 、 PELCO-D 、 PELCO-P protocol 4.1 RS485 D- 4.2 RS485 D+ 4.3 RS485 GND 5. Power interface，DC+12V，notes for polarity 5.1 DC+12V negative 5.2 DC+12V positive 6.

  • Page 6: Power On Self-Test

    1.2、 Power on self‐test 1)Power on: connect DC12V power supply adapter, and the indicator light will be on. 2)Self-testing: Power on with power indicator light on ,camera module will stretches. When the module finish stretches, the self-testing is finished. Note: If you set parking position,when Power on self-test is completed,the camera automatically go to the parking position. 1.3、...

  • Page 7: Bracket Mounting

    1.4、 BRACKET MOUNTING Note: The materials of the wall must be follow board or concrete to mount the camera on the wall or ceiling, while plasterboard is not usable. Bracket installation steps 2）Accessories introduction Note：Mounting brackets as shown, can be only installed and maintained by a qualified technician.

  • Page 8: 2、Product Overview

    2、Product overview 2.1、Product introduction 2.1.1、Product model X—XXX Model NO. T20---20x optical zoom len S20---20x optical zoom len S---1080P60↓ compatible M---1080P30↓ compatible 2.1.2、Dimension 2.1.1 Camera dimension 2.1.3、Accessory When you unpack,check that all the supplied accessories are included: Model NO. S-S20/T20 M-S20/T20 Power adapter 1pcs Power adapter 1pcs Bracket 1pcs...

  • Page 9: Main Features

    2.2、Main Features 2.2.1、Camera performance This series camera offers perfect functions,superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth,high resolution and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
  • Page 10 f＝5.5～110mm f＝4.7～94mm View Angle 3.3°（tele）～54.7°（wide） 2.9°（tele）～55.4°（wide） Aperture F1.6 ～ F3.5 F1.6 ～ F3.5 Digital Zoom Minimum 0.5Lux(F1.8, AGC ON) Illumination 2D﹠3D DNR White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K Focus Auto/Manual Iris Auto/Manual Electronic Shutter Auto/Manual ON/OFF OFF/ Dynamic level adjustment Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve >55dB...

  • Page 11: Keyboard Introduction

    2.2.4、Keyboard Introduction  Menu Menu、Confirm share the same key“menu/ok”； when change the menu parameter,press menu/ok to confirm  Up In the menu screen, when the cursor is on a particular sub-menu, the cursor will move up to the selected menu when we press the "up”key. When it is not on menu screen, it is used as Focus+ ...

  • Page 12: Video Output

    3.1.2、Video output Connect to the video output cable: the user select the output mode according to the machine model. network output: connect this product and your computer through network cable,then open the browser,enter the camera IP address (factory default 192.168.5.163) in the address bar,then to the login page and input a user name and password (factory default are “admin”) ,Finally enter the preview page,and the image comes out.

  • Page 13: System Setting

    3.2.2、System setting Move the pointer to the (Setup) in the Main Menu,click the【MENU】key and enter into the (System Setting) as shown below, SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baudrate 9600 Return [↑↓]Select [← →]Change Value [Menu]OK PROTOCOL:VISCA/Pelco-P/Pelco-D/Auto Visca ADDR:VISCA=1~7...
  • Page 14 EXPOSURE:Enter into Exposure setting COLOR: Enter into color setting Image: Enter into image setting Focus: Enter into focus setting Noise Reduction: Enter into noise reduction RETURN: Return to the former menu(if it is main menu, means close menu) [↑↓] Select: for selecting menu [←...
  • Page 15 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto Saturation AWB Sensitivity High Color style Default Color temp Return [↑↓]Select [← →]Change Value [Menu]OK WB MODE:Auto,3000K,4000K,5000K,6500K,Manual,One Push RED GAIN: 0~255(only available in Manual mode) BLUE GAIN: 0~255(only available in Manual mode) SATURATION: 60%,70%,80%,90%,100%,110%,120%,130% Hue: 0~14 AWB Sensitivity: high/middle/low Color Style: Default,style1~4.
  • Page 16 Brightness: 0~14 Contrast: 0~14 Sharpness:0~15 Flip-H: On/Off Flip-V: On/Off B&W mode:color,black/white Gamma:default,0.47,0.50,0.52,0.55 DZoom:digital zoom options: On/Off DCI:Dynamic Contrast: Off,1～8 RETURN: Return to the former menu(if it is main menu, means close menu) [↑↓] Select: for selecting menu [← →] Change value: for modify parameters [MENU] OK:Press [MENU] to confirm 4) FOCUS Move the pointer to the (FOCUS) in the Menu,click the【MENU】and enter the (FOCUS) as follow,...

  • Page 17: Zoom

    3.2.3、ZOOM Move the pointer to the (ZOOM) in the Main Menu,click the【MENU】and enter the (ZOOM) as follow, Zoom ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Zoom speed Park Set Saving Park？ Return [↑↓]Select [← →]Change Value [Menu]OK Zoom speed:Set the zoom speed for remote controller,1~8 Park Set: ON/OFF Saving Park: YES/NO RETURN: Return to the former menu(if it is main menu, means close menu) [↑↓] Select: for selecting menu...

  • Page 18: Version

    3.2.5、VERSION Move the pointer to the (VERSION) in the Main Menu,click the【MENU】and enter the (VERSION) as follow, VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 2.0.0.0 2015-12-18 Camera Version 2.0.0.15 2015-12-18 AF Version 2.0.0.6 2015-12-11 Return [Menu]OK MCU Version:Display MCU version information Camera Version: Display camera version information AF Version:Display the focus version information RETURN: Return to the former menu(if it is main menu, means close menu) [↑↓] Select: for selecting menu...

  • Page 19: 4、Network Connection

    4、Network Connection 4.1、Connecting Mode 1) Direct connection: Connect the camera and computer by network connecting cable. 2) Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser. Note: Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
  • Page 20 Pic 4.1.2 Network Advanced Setting Click the “Start” and select “Operation” to input cmd as picture 4.1.3 to verify if the network segment has been successfully added. Pic 4.1.3 Run Window Click “OK” and open the DOS command window,input ping 192.168.5.26 and press Enter key,it will show message as below: which means network segment adding is succeed.
  • Page 21 Pic 4.1.4 DOS control platform User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default,open DOS command window and input 192.168.5.163,then press Enter key,it will show message as pic 4.1.5: which means network connection is normal.

  • Page 22: Ie Log In

    4.2、IE Log In 4.2.1、Web client 1) Web client Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as pic 4.2.2. Pic 4.2.2 Network log in Note: Web access supported browsers: IE,Chrome,Firefox,Safari, but web plug-in can only support IE brower.

  • Page 23: Preview

    Pic. 4.2.3 Install Plug-in Note:Currently Web plug in only supported by the IE browser. Input the user name and password after plug in installed, click to login (the default user name and password are both “admin” and user can change them after logging in) and enter into Web client management interface as below 4.2.2、Preview After login in the management interface it will show the default video preview interface as below picture.

  • Page 24: Configuration

    4.2.4、 Configuration Click Configuration to enter into the device parameters setting page. Major options: Local configure, Audio configure, Video configure, Network configure, Platform access configure and System configure. The detailed description refer to below sheet. Menu Explanation Including video preview mode, record video packing time, record video storage route settings Local configure etc.
  • Page 25 b) Compressing format: Set video compressing format and the device will reboot automatically (Main/Second code stream default H.264, H.265 optional)) c) Video size:set resolution,then device will restart automatically(Main stream default 1920*1080,1280*720 optional,Secondary stream default 640 * 320, 320 * 180,1280 * 720 , 1920*1080 optional). d) Stream Rate control:Set rate control mode,then device will restart automatically(Primary / secondary stream default variable bit rate,fixed rate is for option).

  • Page 26: Network Configuration

    g) Image: Brightness: Set the brightness (default 6,0-14 optional). Contrast: set the contrast (default 8,0-14 optional). Sharpness: Sets the sharpness value (default 7,0-15 optional). Black and white mode: Set black and white mode (default color, black/white optional ). Gamma: Gamma value setting (default, 0.45,0.50,0.52,0.55 optional). Flip Horizontal: Set Flip Horizontal (default Off, On optional).

  • Page 27: System Configuration

    b) Alternate DNS server: Alternate DNS server settings. (Default 0.0.0.0). c) Click on the "Save" button to display the "Save successfully" message, then the set is to take effect. 4)GB28181 a) Switch: set whether open GB28181, can check b) Time Synchronization: whether synchronization time is set, you can check c) Stream Type: stream type setting (the default main stream, secondary stream optional) d) Sign effective time (in seconds): 3600 Range 5-65535 e) Heartbeat time (seconds): 60 Range 1-65535...

  • Page 28: Logout

    c) Focus version V2.0.0.6 2015-12-11 Note: Users only read the version information above which is consistent with the menu version but can not modify. Different types of the machine has different information. r) Update file: Click "Browse ..." installation, to select the upgrade file in the pop-up window. Click on the "Upgrade"...

  • Page 29: Camera Control Command

    5.1.2、Camera control command Command Function Command packet Note AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard)
  • Page 30 mode Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode Bright 8x 01 04 39 0D FF Bright mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF...
  • Page 31 8x 01 04 3F 01 0p FF Corresponds to 0 to 9 on the Remote Commander Recall 8x 01 04 3F 02 0p FF 8x 01 04 61 02 FF CAM_LR_Reverse Image Flip Horizontal ON/OFF 8x 01 04 61 03 FF 8x 01 04 66 02 FF CAM_PictureFlip Image Flip Vertical ON/OFF...

  • Page 32: Inquiry Command

    D：1080P29.97 E：720P29.97 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft 8x 01 06 01 VV WW 01 01 FF VV: Pan speed 0x01 (low speed) to...
  • Page 33 CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position y0 50 02 FF CAM_BacklightModeInq 8x 09 04 33 FF y0 50 03 FF CAM_NRLevel(2D) Inq 8x 09 04 53 FF y0 50 0p FF P: 2DNRLevel CAM_NRLevel(3D) Inq 8x 09 04 54 FF...
  • Page 34 5.2、Pelco‐D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 35 DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF DownRight 0xA0 Address 0x00 0x12 Pan Speed Tilt Speed 0xAF Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF Focus Far 0xA0 Address 0x01...
  • Page 36 6、Camera Maintenance and Troubleshooting 6.1、Camera Maintenance 1)If camera is not used for long time, please turn off power adapter switch and AC plug. 2)Use soft cloth or tissue to clean the camera cover. 3)Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 37 Copyright Notice: All the contents of this manual and the copyright ownership belong to the company. Without the approval of the Company, no one can imitate,copy, reproduce or translate arbitrarily.This manual does not have any form of warranty, express or other imply.
