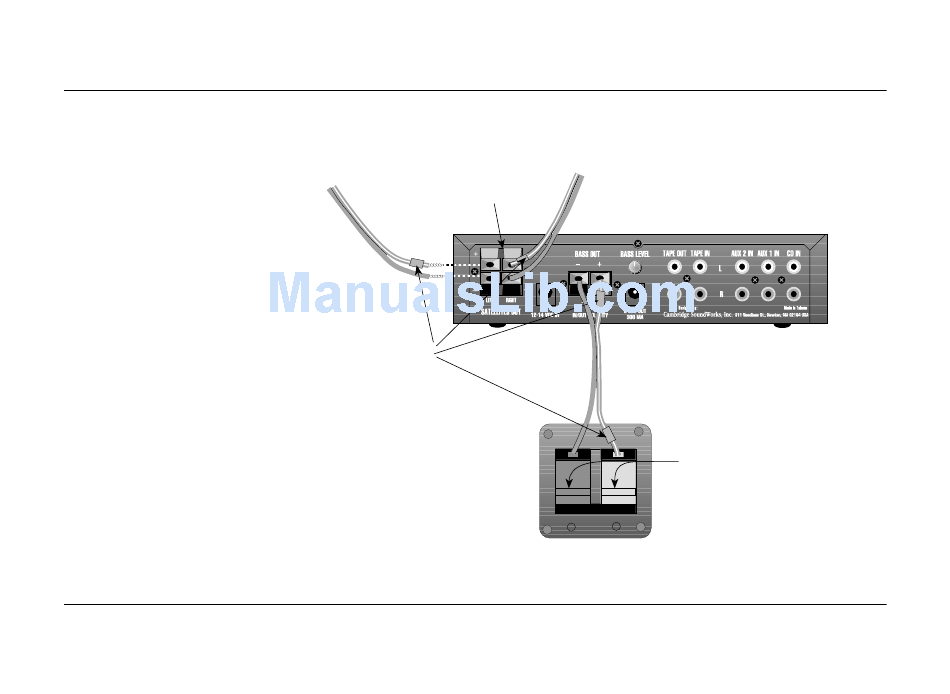

As shown in the diagram at
right, connect one end of the
unattached speaker wire to the
speaker terminals on the side
of the BassCase and the other
to the amplifier's Bass Out
terminals. Attach the leads
with the red tabs to the "+"
terminals and the unmarked
lead to the "–" terminals.
To connect satellite speaker wires to
Left satellite
amplifier, push back on spring- loaded
speaker wire
tab above or beneath each connector,
insert bared end of wire, then release
tab to lock wire in place.
Connect the leads with the red
bands to the red (+) speaker
terminals on the amplifier and
BassCase , and the unmarked
leads to the black (-) terminals.
Note: Connecting all speaker wires
identically assures that the speakers
operate "in-phase" (their cones move in
and out together). While doing no damage,
"out-of-phase" connections can muddy the
stereo effect, and sounds like solo voices
that should appear to come from a point
between the satellites will sound "split"
between them.
Right satellite
speaker wire
BassCase
speaker wire
+
+
I N P U T
+ +
–
+
4
Amplifier rear panel
BassCase
speaker connector
To connect the BassCase , push down on
spring-loaded connectors, insert bared wires
into holes, then release connectors.
