Unpacking And Checking For Shipping Damage

1. If you suspect that your Model
Twelve has been damaged in
shipping, do not connect and
use the unit. Call us right away
for advice, and be sure not to
discard any packing materials
in case the unit has to be
returned.
2. To open Model Twelve, place it
on a flat surface with its round
bass speaker grille facing
downwards. Press down firmly
on a corner of the case near
either latch and flip up the
latch; repeat for the other
latch. Open the lid.
3. As you remove Model Twelve's
individual components, note
how the various parts are
stored. You will need to repack
the parts in the same places
before transporting. Each
satellite's speaker wire is pre-
connected to push-and-release
and wound around a plastic
reel attached to the back. The
reels may be removed by
turning the large knurled
knobs (that hold them in place)
counterclockwise. However,
leave the wires themselves
attached to the connectors at
all times. This facilitates
packing the system for
carrying and setting it up at a
new location. If you ever do
disconnect the wires, be sure
to connect the leads with the
white stripe to the red "+"
speaker terminals and the
unmarked leads to the black
"–" terminals.
4. In the case's center compart-
ments you'll also find:
• An unattached speaker wire
for connecting the amplifier
to the BassCase.
• An AC power adapter.
BassCase
• A 12-volt power cord for
powering Model Twelve from
a vehicle's cigarette lighter
socket.
• A short audio cable for
connecting a CD or cassette
player to the amplifier.
• Anchors and screws for wall-
mounting the satellites.
• Wire nuts for extending the
speaker wires.
• An all-voltage, international
power supply is available
separately (P/N P89-0231).
Contact a Cambridge Sound-
Works Audio/Video Consultant
at 1-877-YES-HIFI to
purchase one.

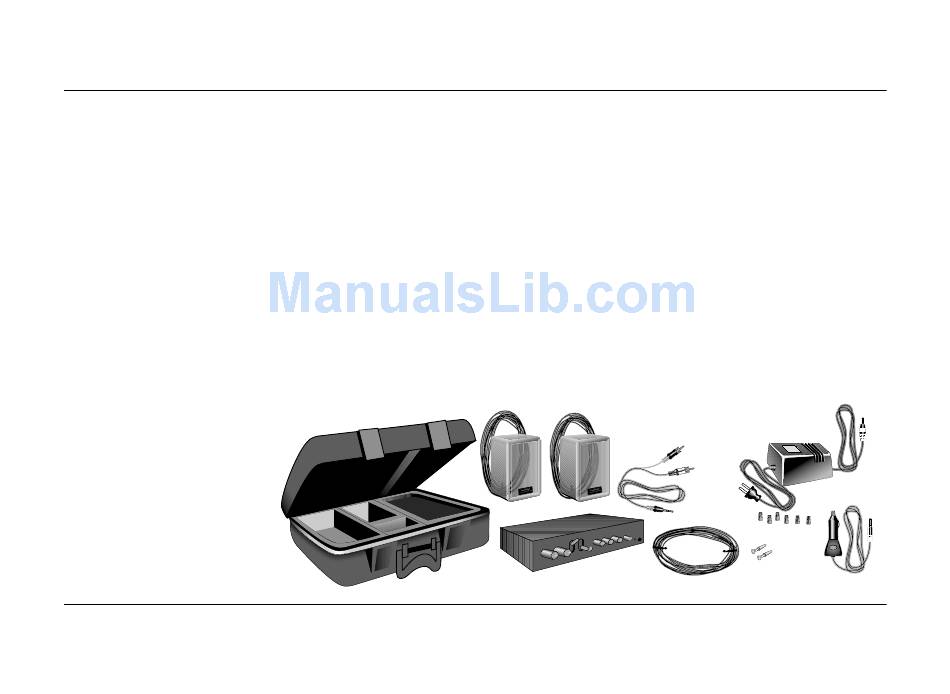

Satellite speakers (2)
with 15' Satellite
Speaker Cables
POW ER
TRE BLE
BAS S
BAL ANC E
UR CE
ST ER EO SO
VO LU ME
SO UR CE
TY PE
MO NO
Model
Twelve Amplifier
2
The center compartments may
also be used to store a portable
CD or tape player, additional
cables, etc.
5. Save the shipping carton and
its inserts in case you ever have
to ship your Model Twelve.
The BassCase has been designed
to withstand the rigors of being
hand-carried, stored under an
airline seat or riding in the
trunk of a car, but Model Twelve
should be packed in it's
carton before shipping by
common carrier.
AC Power
Adapter
Mini Stereo Plug
to RCA
Y-Adapter
12 Volt
Power Cord
BassCase
Speaker Cable
Wire Nuts (6)
Anchors and Screws (2)
