Technaxx MusicMan Mini User Manual

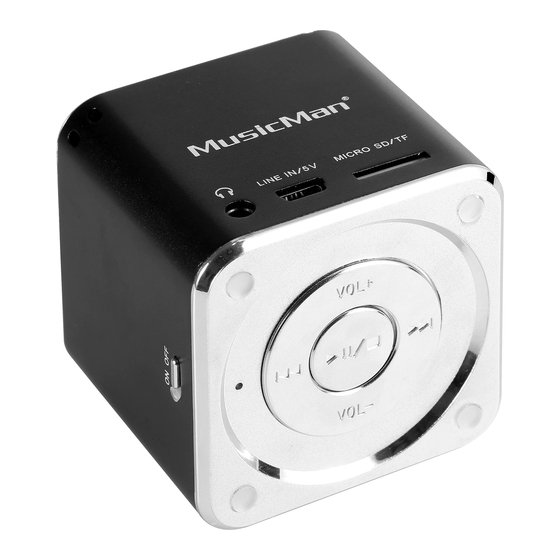

Mini MusicMan
The Declaration of Conformity for this device is under: www.technaxx.de
Portable Mini speaker system for MP3, CD/DVD, iPhone, iPad, iPod, PSP, mobile
phones, PC, Notebook, MicroSD card slot and USB slot up to 32GB
Durable aluminium housing, available in 5 metallic colours
Power supply: Built-in rechargeable Lithium battery 600mAh, PC-USB, AC adapter*
(DC-5V, *not included)
Ideal for traveling, easy installation, brilliant sound quality

Key functions

With MP3 decoding function; a MicroSD card or a USB flash memory (Fat32 formatted)
can be inserted directly for music playback.
Plug in the MicroSD card with writing face up, the golden contacts face down and forward
into the MicroSD card slot.
If the MicroSD card or the USB flash memory is plugged in, music will be played with the
volumen set. Press VOL+ to increase volume, press VOL – to decrease volume.
Default mode is Line-IN mode. After plugging in the MicroSD card or the USB flash
memory is automatically changed in the music playback mode.
Portable Mini soundstation with built-in MP3 player
User Manual
(in bottom bar "Konformitätserklärung")
®
Soundstation
Key
VOL –
VOL +
1x short press of
plays music; in Play mode: 1x short
press of
Pause mode; again 1x short press
of = Play mode goes on;
You can stopp the device by setting
the power switch to OFF and by
disconnecting the MicroSD card or
the USB flash memory.
Function
Play / Pause
Volume down
Volume up
One back / Last music
Next one / Next music
= device
= device goes to
